Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$39,800 / set
Weight :
350kg
Voltage :
220V
Power :
110V/220V AC 60HZ/50HZ
Size :
L1300*W400*H1000mm
PCB thickness :
0.8-3.0mm
Cutting speed :
Adjustable
Top cutter adjustment :
0-5mm
Board width range :
15-20mm
Blade material :
SKH51 high speed steel
Core components :
PLC, Motor
Cutting process :
Unlimited
Applicable board :
LED panel, fiberboard, aluminum board (>400mm)
Conveyor belt :
Included
Multiple cutters :
Yes
Cutting stress :
Reduced
Description

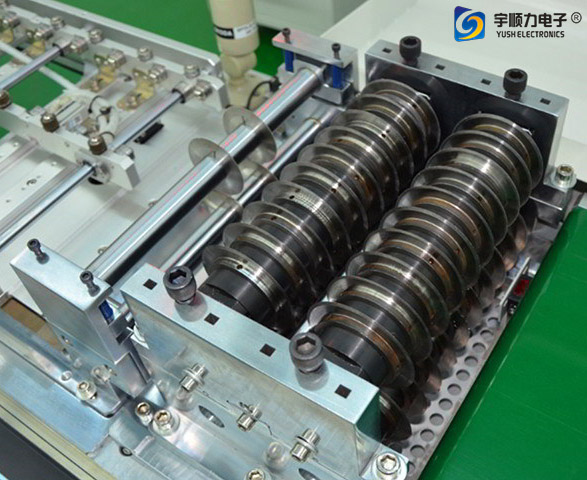

Stable Multi Blade PCB Depaneling Machine
Professional depaneling solution for FR4 PCB, LED panel boards, and accurate circuit board cutting applications.
Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine Stable Multi Blade PCB Depaneling Machine for FR4 PCB LED Panel Board Accurate Circuit Board Cutting Machine
Key Features & Benefits
  • Integral shaft design for top and bottom knives ensures convenient installation and operation
  • Computer screen control with production counting and direct gap display for precision cutting
  • Compatible with all V-cut PCB boards for versatile applications
  • Reduces stress during cutting to prevent solder joint cracking
  • Multiple cutter configuration enables cutting several boards simultaneously
  • Top cutter wheel features 0-5mm fine adjustment capability
  • Adjustable knife spacing suitable for single PCB boards within 15-20mm width
  • SKH51 high-speed steel blades provide exceptional wear resistance and long service life
  • Variable cutting speed with convenient turn-knob adjustment
  • Integrated conveyor belt system for automated board handling and reduced manual intervention
  • Multi-blade operation ensures simple, efficient performance ideal for mass production
Technical Specifications
Power Supply 110V/220V AC 60Hz/50Hz
Dimensions L1300 × W400 × H1000mm
Weight 350kg
Cutting Process Unlimited cutting capability
PCB Thickness Range 0.8-3.0mm
Compatible Materials LED panels, fiberboards, aluminum boards (≥400mm), and special boards
Application Versatility
This advanced depaneling machine efficiently processes LED panels, fiberboards, aluminum boards exceeding 400mm, and various specialty boards, making it an ideal solution for diverse manufacturing environments requiring precision circuit board separation.
