Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YSV-7A
MOQ :
1 set
Price :
$50,000-100,000 / set
Weight :
1500 KG
Size :
1300mm*1150mm*1455mm
Power :
AC220V / 3KW
Laser source :
All solid-state UV lasers with a wavelength of 355 nm
Laser power :
15W light (US original import)
Material thickness :
≤1.0 mm
Machine precision :
±20 μm
Platform positioning accuracy :
±2 μm
Platform repeatability :
±2 μm
Cut format :
460mm* 460mm
Focus spot diameter :
20±5μm
Ambient temperature :
20±2 ℃
Ambient humidity :
<60 %
Machine body :
marble
Galvanometer system :
CTI US original import
Description

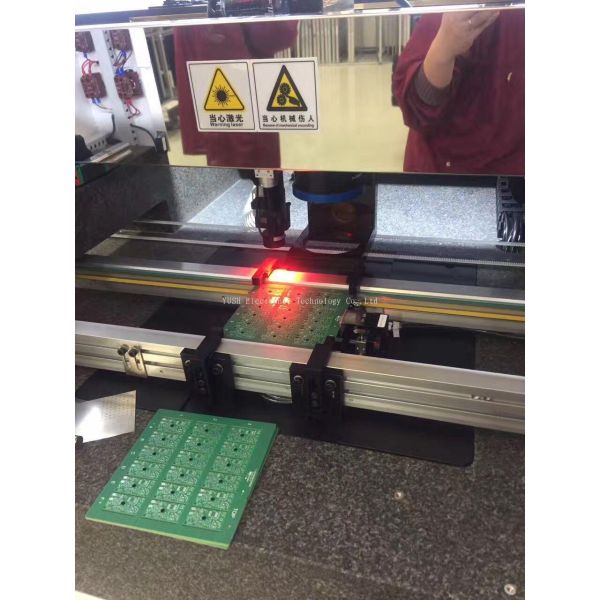

YSV-7A PCB/FPC Board Laser Cutting Machine - SMT Separator & Steel Net Marking
Product Overview
Advanced UV laser cutting system designed for precision PCB and FPC board separation, SMT applications, and steel net marking with exceptional accuracy and efficiency.
YSV-7A Pcb/fpc Board Laser Cutting Machine/smt Separator/steel Net Marking YSV-7A Pcb/fpc Board Laser Cutting Machine/smt Separator/steel Net Marking
Technical Specifications
Specification Model YSV-7A
Size (L×W×H) 1300mm × 1150mm × 1455mm
Power AC220V / 3KW
Laser Source All solid-state UV lasers with wavelength of 355 nm
Laser Power 15W (US original import)
Material Thickness ≤1.0 mm
Machine Precision ±20 μm
Platform Positioning Accuracy ±2 μm
Platform Repeatability ±2 μm
Cutting Format 460mm × 460mm
Focus Spot Diameter 20±5μm
Ambient Temperature / Humidity 20±2 ℃ / <60%
Machine Body Marble
Galvanometer System CTI US original import
Exercise System Full Closed Loop AC Linear Motor System
Motion Control System PMAC (USA Delta Tau)
Necessary Hardware & Software Includes PC and CAM software
Key Features & Applications
  • Efficient, fast FPC cutting for both mounted and unmounted PCB sub-boards
  • Drilling and window covering applications
  • Fingerprint identification chip cutting
  • TF card and memory card sub-board separation
  • Mobile phone camera module cutting
Advanced Automation Capabilities
  • Galvanometer automatic correction and automatic focus
  • Laser displacement sensor for automatic focus height adjustment
  • Fast alignment system saving time and effort
  • Block delimitation and area selection cutting
  • Clean, rounded edges without burrs or glue overflow
YSV-7A Pcb/fpc Board Laser Cutting Machine/smt Separator/steel Net Marking
High-Precision Performance
  • Array multi-block cutting for maximum platform utilization
  • High-precision CCD automatic positioning and focusing
  • International brand solid-state ultraviolet lasers with excellent beam quality
  • Small focus spot with uniform power distribution and minimal thermal effect
  • High-speed linear motor system maintaining micron-level accuracy
YSV-7A Pcb/fpc Board Laser Cutting Machine/smt Separator/steel Net Marking
Operational Excellence
  • Fully automatic positioning with high-precision CCD system
  • One-click operation mode for same-type processing
  • Integrated exhaust gas treatment system for operator safety
  • Environmentally friendly operation with complete fume extraction
  • User-friendly Windows-based control software with Chinese interface
YSV-7A Pcb/fpc Board Laser Cutting Machine/smt Separator/steel Net Marking
