Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$50,000-100,000 / set
Weight :
1600 KG
Laser Brand :
Optowave
Laser Power :
10W
Laser Wavelength :
355 nm
Power Supply :
AC220 V
Material Thickness :
≤1.2 mm
Cutting Precision :
±20 μm
Platform Precision :
±2 μm
Working Area :
600*450 mm
Maximum Power :
3 KW
Beam Diameter :
20±5 μm
Ambient Temperature :
20±2 ℃
Ambient Humidity :
<60 %
Machine Material :
Marble
Dimensions :
1480mm*1360mm*1412 mm
Description

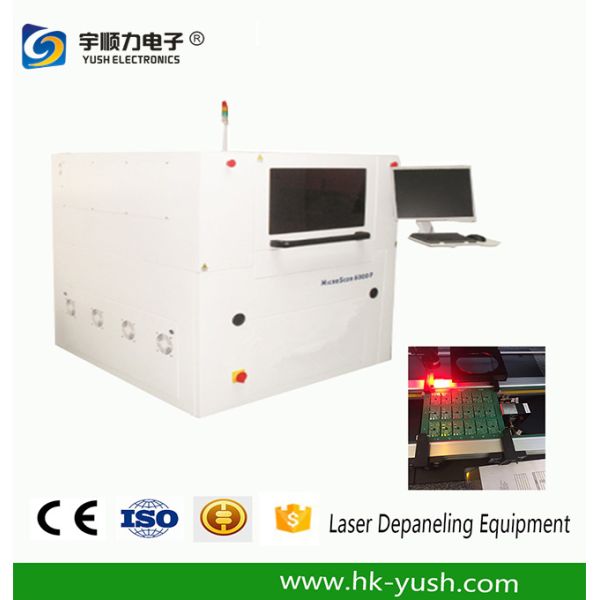

PCB Laser Depanelizer Machine
FPC UV Laser Depanelizer - High Precision PCB Laser Cutting Equipment
Inline Laser Cutting Machine for Flexible Circuit Boards without Stress
PCB Laser Depanelizer Machine. FPC UV Laser Depaneizer,High Precision Pcb Laser Cutting Equipment PCB Laser Depanelizer Machine. FPC UV Laser Depaneizer,High Precision Pcb Laser Cutting Equipment
Cutting Applications
  • FPC and related materials
  • FPC/PCB/Rigid-Flex PCB cutting
  • Camera module cutting
Key Features
  • Fast and efficient operation, reducing delivery time
  • High quality results with no distortion and clean, uniform surfaces
  • Integration of CNC technology, laser technology, and software technology
  • High accuracy and high-speed performance
Advantages of Laser PCB Depaneling/Singulation
  • No mechanical stress on substrates or circuits
  • No tooling cost or consumables required
  • Versatile applications with simple setting changes
  • Fiducial recognition for precise and clean cuts
  • Optical recognition before depaneling process begins
  • Ability to depanel virtually any substrate (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc.)
  • Extraordinary cut quality holding tolerances as small as < 50 microns
  • No design limitations - ability to cut virtually any size PCB board including complex contours and multidimensional boards
PCB Laser Depanelizer Machine. FPC UV Laser Depaneizer,High Precision Pcb Laser Cutting Equipment
Technical Specifications
Parameter Specification
Technical Parameters Main body of laser: 1480mm × 1360mm × 1412mm
Power AC220 V
Laser Wavelength 355 nm
Laser Source Optowave 10W (US)
Material Thickness ≤ 1.2 mm
Precision ±20 μm
Platform Accuracy ±2 μm
Working Area 600 × 450 mm
Maximum Power 3 KW
Vibrating Mirror CTI (US)
Spot Diameter 20 ± 5 μm
Ambient Temperature 20 ± 2 ℃
Ambient Humidity < 60%
Machine Base Marble
PCB Laser Depanelizer Machine. FPC UV Laser Depaneizer,High Precision Pcb Laser Cutting Equipment
