Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YSV-6A
MOQ :
1 set
Price :
$50,000-100,000 / set
Weight :
1600 KG
Laser Brand :
USA Optowave
Laser Type :
Solid-State UV Laser
Laser Wavelength :
335nm
Laser Power :
10/12/15W
Positioning Precision :
±2μm
Repetition Precision :
±1μm
Working Area :
600*600mm
Scanning Speed :
2500mm/s (max)
Machine Weight :
1500kgs
Machine Size :
1350*1150*1550mm
Core Components :
PLC, Engine, Bearing, Gearbox, Motor
Control Software :
Windows-based
Focusing System :
Automatic real-time
Worktable Configuration :
Two worktables
Description

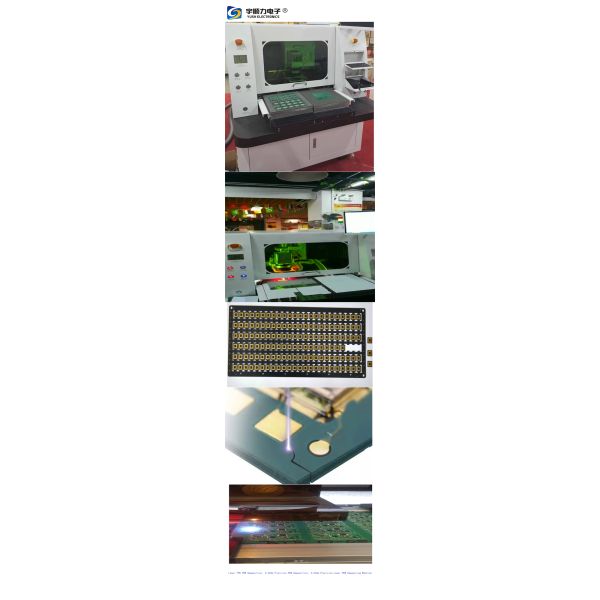

PCB Laser Cutting Machine | UV Laser Cutting Machine | SMT Stencil Cutter
Key Features
  • High Accuracy: Low-drift galvanometer and fast ironless linear motor system platform enable rapid cutting with micrometer-level precision
  • Easy to Learn: Independent Windows-based control software with user-friendly Chinese interface, powerful and diverse functionality
  • Dual Worktables: Combination of two worktables allows simultaneous in/out operation, ideal for large-scale product cutting
  • Extended Platform: Platform extends outward for easy material handling, eliminating frequent door opening
  • Automatic Real-time Focusing: Ensures consistent cutting at optimal focus point
  • High Cutting Quality: Superior cutting accuracy with minimal blackening and carbonization
  • Compact Design: Small model size for easy transportation and installation
PCB Laser Cutting Machine . UV Laser Cutting Machine . SMT Stencil Cutter PCB Laser Cutting Machine . UV Laser Cutting Machine . SMT Stencil Cutter
Technical Specifications
Model YSV-6A
Laser Brand USA Optowave
Laser Rate Solid-State UV Laser
Laser Wavelength 335nm
Laser Power 10/12/15W
Positioning Precision ±2μm
Repetition Precision ±1μm
Working Area 600×600mm
Laser Scanning Speed 2500mm/s (max)
Machine Weight 1500kgs
Machine Size 1350×1150×1550mm
PCB Laser Cutting Machine . UV Laser Cutting Machine . SMT Stencil Cutter PCB Laser Cutting Machine . UV Laser Cutting Machine . SMT Stencil Cutter
Packaging & Shipping

Upon completion, the machine body is protected and wrapped with plastic film to prevent damage during export transportation.

We measure customer-customized machine dimensions and create precisely fitting custom wooden boxes.

Export packaging utilizes sturdy wooden boxes specifically designed for heavy machinery, ensuring optimal protection during transit.
