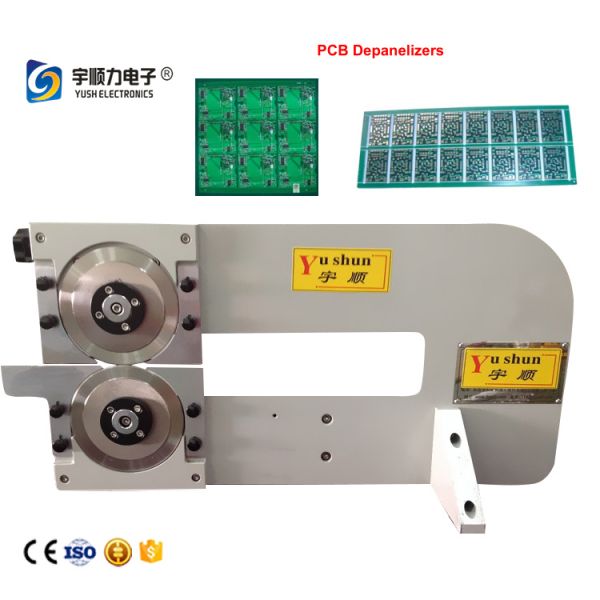

SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
Certification :
CE
MOQ :
1 set
Price :
$3,000 / set
Voltage :
220 / 110 V
Power :
10 kW
Weight :
40KG
Dimension :
420*280*400 mm
Model :
YSV-1
PCB Cutting Length :
330 mm
Cutting Speed :
0~400 mm/s
Cutting Thickness :
1.0~3.5 mm
Power Supply :
110/220 V
Core Components :
Motor
Blade Material :
SKH-9 (Japan)
Mold Material :
SKH-11 Steel
Delivery Time :
1 Day
Production Capacity :
1000 Sets
Min. Order :
1 Set
Description
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
Precision PCBA depanelizer machine - YSV-1
Key Features
  • Easy operating modes with multiple control options
  • Simple setting with edge guiding system
  • Re-grindable cutters for extended tool life
  • Minimizes micro-cracks in solder joints
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
Technical Specifications
Model YSV-1
PCB Cutting Length (mm) 330
Cutting Speed (mm/s) 0~400
Cutting Thickness (mm) 1.0~3.5
Power Supply (V) 110/220
Size (mm) 420*280*400
Weight (Kg) 40
Guarantee (Year) 1
Delivery (Day) 1
Ability (Set) 1000
Min. Order (Set) 1
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
Application Range
Designed for electronics manufacturing including cell phones, computers, PCB, FPC (flexible printed circuit board), and LED applications.
Tool Construction
Mold made of SKH-11 Steel with SKH-9 blades from Japan. Dedicated to high-strength cutting with excellent toughness, capable of cutting metal boards.
Technical Characteristics
  • Precision structural design with even load distribution to eliminate internal stress
  • Safe and easy to operate with comprehensive safety features
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
Advanced Features
  • Minimizes shearing stress to prevent micro-cracks in solder joints
  • Guiding device for precise "V-CUT" alignment on PCBs
  • Ball bearing slideways for easy PCB edge guide adjustment
  • Ball bearing slideways for simple tabletop height setting
  • Multiple operating modes: manual handwheel, semi-automatic button control, or fully-automatic continuous running
  • Re-grindable cutters for cost-effective maintenance
  • Customizable cutter shapes available
SMT High Efficiency FR4 PCBA Depaneling Machine for Production Line
Manufacturer Advantages
  • Original YSV-1 PCB depanelizer manufacturers offering competitive pricing
  • Same-day technical support services
  • Rapid response to customer inquiries within 30 minutes
  • Depaneling experts providing professional PCB solutions
  • Reliable manufacturing with experienced team members averaging 6+ years expertise
