Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YSVC-2
MOQ :
1 set
Price :
$3,800 / set
Weight :
165kg
Max length :
330mm
Cutting thickness :
0.3-3.5mm
Voltage :
110V/220V
Working air pressure :
0.5-0.7Mpa
Size :
620*230*400mm
Core components :
PLC, Motor
Max component height :
70mm
Min component distance :
0.5mm
Drive type :
Pneumatic
Control type :
Electric
Knife type :
Straight
Operation method :
Foot pedal
Adjustment method :
Front knob
Material compatibility :
Thin PCB
Description

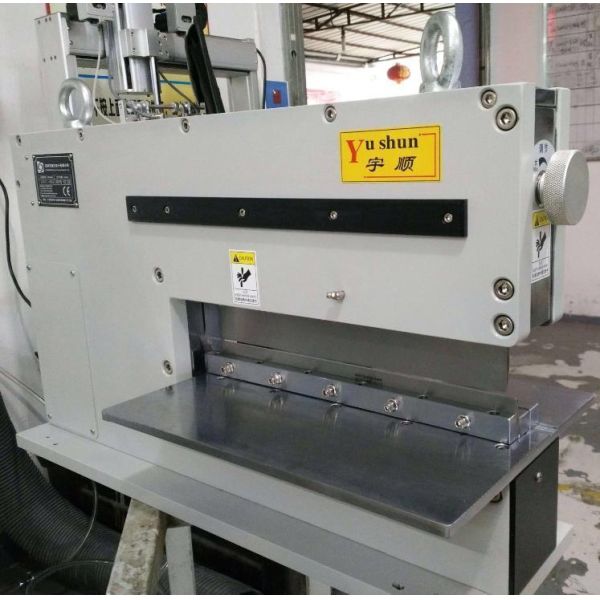

AC/DC Emergency Light Circuit Board V-Cut PCB Depaneling Machine
YSVC-330 YSVC-220 Circuit Board V-Cut PCB Depaneling System
Key Advantages
  • Easy maintenance and operation
  • Thin PCB even to 0.3mm can be sheared safely
  • Shearing process without vibrations due to pneumatic drive unit
Technical Specifications
Max Length 330mm (Custom sizes available)
Cutting Thickness 0.3-3.5mm
Voltage and Power 110V/220V
Working Air Pressure 0.5-0.7Mpa
Speed Depends on operator skill level
Size 620×230×400mm
Weight 165kg
Hot Sale NEW Design AC/DC Best Quality Emergency Light Circuit Board v Cut Pcb
Advanced Features
  • Pneumatically driven with electromagnetic valve control
  • Vibration-free shearing process due to pneumatic drive unit
  • Safe shearing of PCBs with sensitive SMD components and thin boards down to 0.3mm
  • Foot pedal operation for precise shearing control
  • Accommodates components up to 70mm high near V-groove
  • Minimum 0.5mm clearance between V-groove and electronic components
  • Easy gap adjustment via front-mounted knob
Straight Knife PCB Separator Machine - Pneumatically driven with electric control. This all-purpose circuit board V-cut PCB depaneling system is designed to separate pre-scored panel boards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors remain undamaged during the separation process. The special knife design safely handles boards with high components placed close to the edges. Using proven wedge-shaped knives to cut within the groove enables safe separation of boards less than 1mm thickness without creating stress.
Hot Sale NEW Design AC/DC Best Quality Emergency Light Circuit Board v Cut Pcb
Operational Benefits
  • No vibration during processing to prevent damage to precision PCBs
  • Easy board insertion gap adjustment via top-mounted knob with low friction design
  • Adjustable lower knife height with separate front and rear adjustment
  • No thin plates required after knife re-sharpening
  • Simple operation and maintenance suitable for unskilled personnel
