Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YUSH
Model Number :
YSVC-2
MOQ :
1 set
Price :
$3,800 / set
Weight :
165kg
Max length :
330mm
Cutting thickness :
0.3-3.5mm
Voltage :
110V/220V
Working air pressure :
0.5-0.7Mpa
Size :
620*230*400mm
Core components :
PLC, Motor
Max component height :
70mm
Min component distance :
0.5mm
Drive type :
Pneumatic
Control type :
Electromagnetic valve
Knife type :
Straight
Adjustment mechanism :
Adjusting knob
Operation method :
Foot pedal
Material compatibility :
FR4 PCB
Description

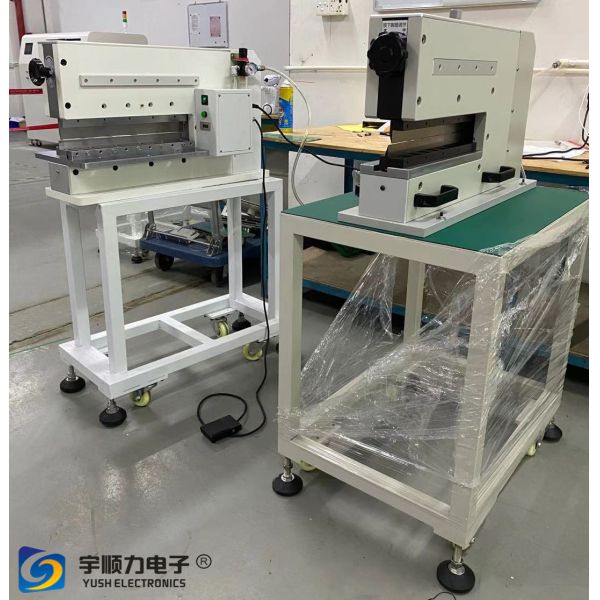

FR4 Circuit Board Cutting Machine Assembly
YSVC-330 and YSVC-220 models available for precise PCB board depaneling
Machine Overview
Our FR4 circuit board depaneling machine offers easy maintenance and operation, capable of safely shearing thin PCBs down to 0.3mm thickness. The pneumatic drive unit ensures vibration-free shearing process for optimal results.
Technical Specifications
Maximum Length 330mm (Custom sizes available)
Cutting Thickness 0.3-3.5mm
Voltage and Power 110V/220V
Working Air Pressure 0.5-0.7Mpa
Machine Size 620×230×400mm
Weight 165kg
Key Features
  • Pneumatically driven with electromagnetic valve control
  • Vibration-free shearing process due to pneumatic drive unit
  • Safe shearing of PCBs with sensitive SMD components and capacitors
  • Foot pedal operation for convenient shearing control
  • Accommodates components up to 70mm near V-groove
  • Minimum 0.5mm clearance between V-groove and electronic components
  • Easy gap adjustment via front-mounted knob
All-Purpose Straight Knife PCB Separator

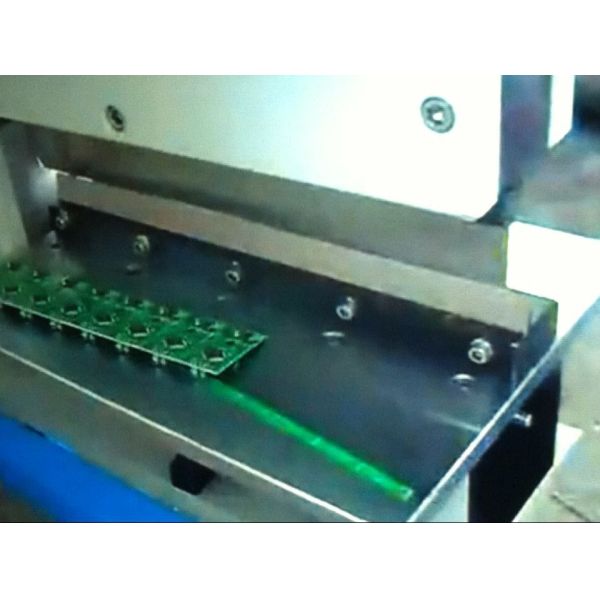

This pneumatically driven, electrically controlled straight knife separator is designed to carefully separate pre-scored panel boards without bending or tension stress. The specialized knife design safely separates boards with high components placed close to edges, using wedge-shaped knives to cut within the groove for stress-free separation of boards under 1mm thickness.
Advanced Performance Features
  • Vibration-free operation prevents damage to precision PCBs
  • Easy board insertion gap adjustment via top-mounted knob with low friction design
  • Adjustable lower knife height with separate front and rear adjustment
  • No thin plates required after knife re-sharpening
  • Simple operation and maintenance suitable for unskilled personnel
