Pneumatic Pcb Cutting Machine
Pneumatic Pcb Cutting Machine
Pneumatic Pcb Cutting Machine
Pneumatic Pcb Cutting Machine
Pneumatic Pcb Cutting Machine
Pneumatic Pcb Cutting Machine
Pneumatic Pcb Cutting Machine
Pneumatic Pcb Cutting Machine
Pneumatic Pcb Cutting Machine
Pneumatic Pcb Cutting Machine
Pneumatic Pcb Cutting Machine
Pneumatic Pcb Cutting Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YuSH
Certification :
CE
MOQ :
1 set
Price :
$10,000 / set
Voltage :
220 V/ 110V
Power :
10 W
Weight :
180 kg
Dimension :
720mm(L)*300mm(W)*440mm(H)
Maximum board length :
300mm / 400mm
Thickness range :
0.50~3.5mm
Working air pressure :
0.4--0.6Mpa
Cutting stress :
below 180uE
Cutting stroke :
below 1MM
Cutting rate :
1 separation per second
V-groove edge clearance :
0.3mm
Component height limit :
60mm
Blade warranty :
200000 cuts
Air compressor requirement :
4-5KG
Core components :
PLC, Motor
Description

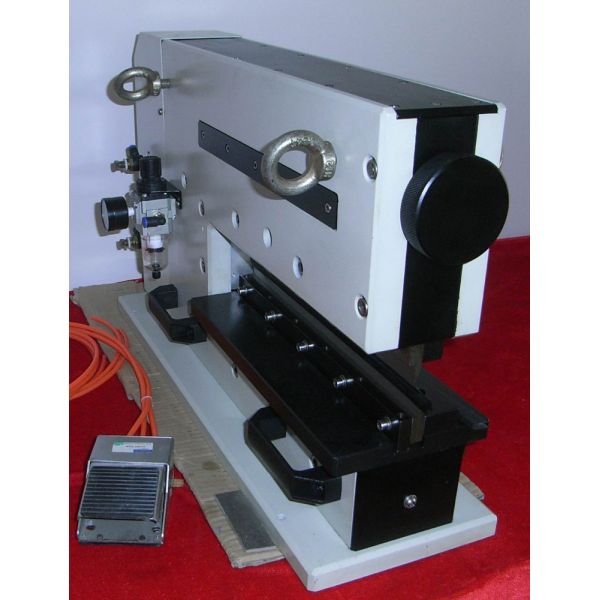

Pneumatic PCB Cutting Machine - YSVC-2
Using advanced gas-electric lightweight design with built-in SERISOR technology, this machine completes PCB cutting in a single operation without shear stress. Specifically engineered for precision SMD or sheet cutting, it eliminates bow waves and micro cracks common with circular knife cutting methods.
Key Advantages
  • Double straight knife cutting system - ideal for separating precise SMD sheets and aluminum boards
  • Guillotine-type cutting suitable for various PCB thicknesses with stroke below 2mm for operator safety

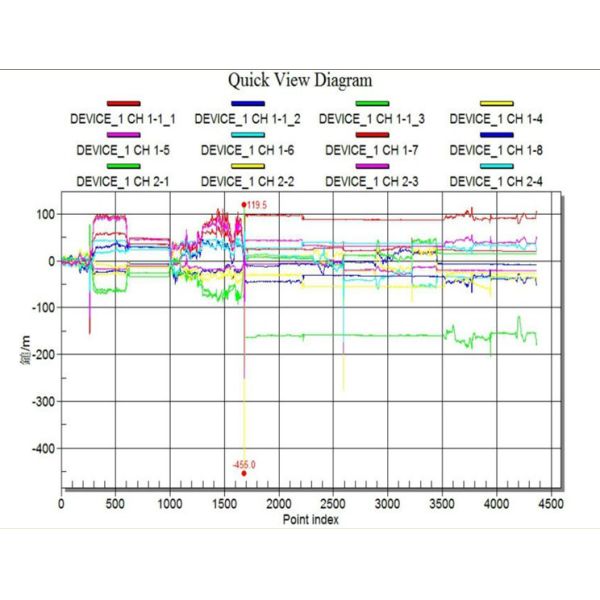

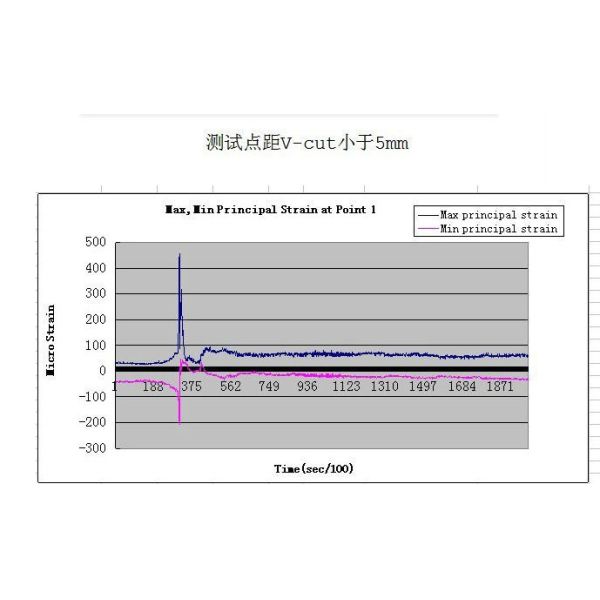

  • Reduces internal stress during cutting to below 180μE, preventing splits and protecting precision components
  • Capable of cutting boards with 0.3mm width between V-groove edge and components, up to 60mm height
  • Cutting tools can be repeatedly sharpened after wear for extended service life
Pneumatic Pcb Cutting Machine Pneumatic Pcb Cutting Machine Pneumatic Pcb Cutting Machine
Technical Specifications
Maximum Board Length300mm / 400mm
Package Size720mm(L) × 300mm(W) × 440mm(H)
Thickness Range0.50 - 3.5mm
Power Supply220VAC / 110V
Working Air Pressure0.4 - 0.6Mpa
Weight189 kg
Application ScopeAll V-CUT SMD PCB Boards
Operational Characteristics
  • High-speed segmentation at 1 separation per second controlled by pedal pneumatic switch
  • Passive start cutting knife group ensures safe operation with minimal cutting stress
  • Non-roller cutting system eliminates dust, motor drive, and carbon pollution
  • Non-friction cutting method prevents residual metal contamination
  • Blade warranty: 200,000 cycles with no electrical components to replace
  • Proprietary cutting tool design eliminates import dependencies
  • Operates with standard 4-5KG air compressor for flexible placement
