Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
MOQ :
1 set
Price :
$10,000-16,000 / set
Weight :
300 kg
Power :
10 kW, 2 kW
Voltage :
220V, 110V
PCB thickness :
0.3 to 5mm
Cutting speed :
300mm/sec or 500mm/sec
Total dimension :
L2600*W850*H1050mm
Max PCB width :
300MM
Max component height :
30MM
Separating width :
8-20MM
Blade material :
SKD11
Blade lifespan :
1,000,000 times
Blade adjustment :
0-5mm
Conveying speed :
Adjustable
Blade groups :
20 upper and lower
PCB bar capacity :
11 LINES
Description
Multiple Groups of Blades PCB De-paneling Machine
High quality PCB depaneling machine, V-cut PCB depanelizer, multi-blade depaneling machine, and PCB separator designed for efficient LED panel cutting and PCB dividing operations.
Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting
Key Features
  • Integral shaft design for convenient installation and maintenance
  • Computer screen control with production counting and gap display
  • Capable of cutting all V-cut PCB boards
  • Reduces stress and prevents solder joint cracking
  • Multiple cutters enable simultaneous cutting of several boards
  • Top cutter wheel adjustable range: 0-5mm

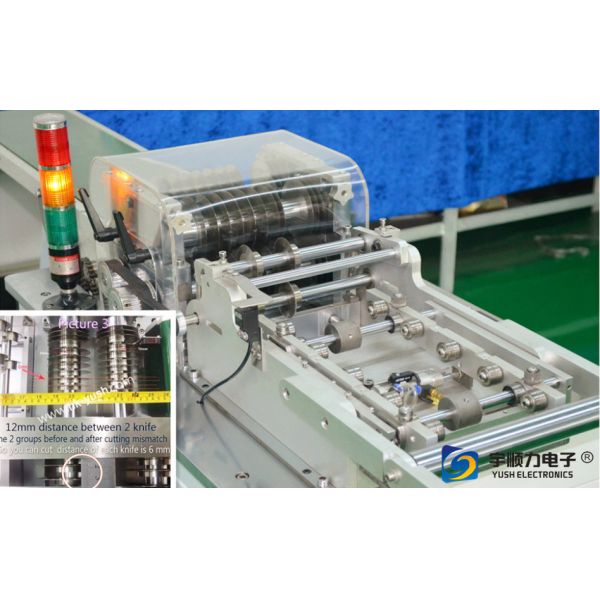

  • Adjustable knife distance for single PCB widths of 15-20mm
  • SKH51 high-speed steel blades for long service life and wear resistance
  • Adjustable cutting speed via turn-knob control
  • Integrated conveyor belt for automated material handling
  • Suitable for LED panels, fiberboard, aluminum boards (400mm+), and special boards
Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting
YSVJ-650 Machine Specifications
Equipped with 20 groups of upper and lower blades (40 total) made of durable SKD11 high-speed steel. Capable of separating 10+ LED light bars simultaneously with precision separation without deformation or burrs.
Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting
Advanced Features
  • Adjustable conveying speed

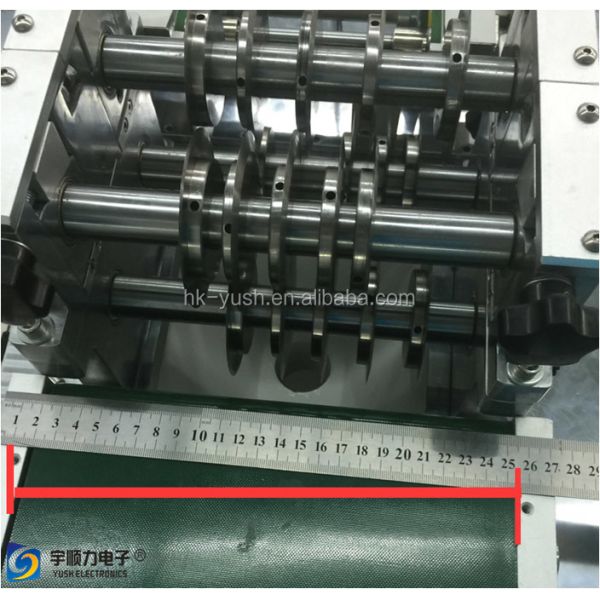

  • Single separated PCB width: 8-20mm, Max cutting width: 300mm
  • Automatic feeding system

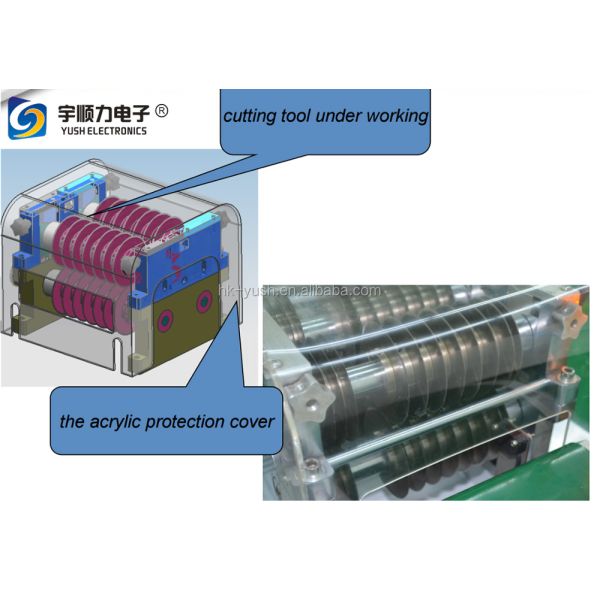

  • Safety protection devices
  • Suitable for aluminum, FR4, and glass fiber PCB materials
  • SMEMA connector for upstream machine integration

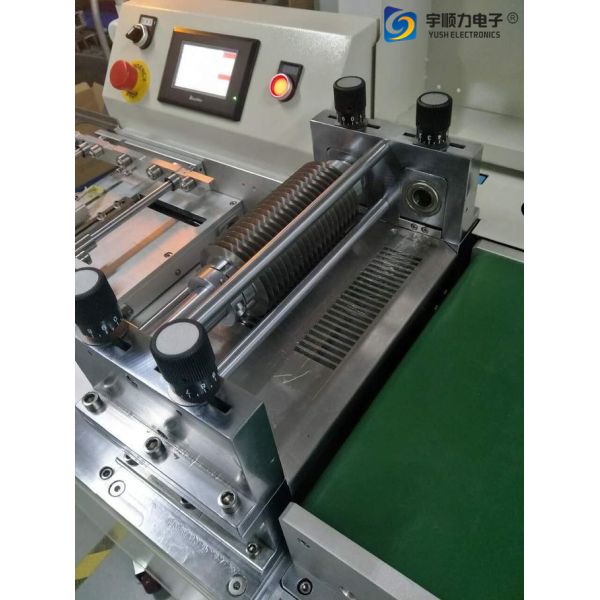

  • Touch screen and PLC control with production monitoring
  • Multiple blade sets for complete light bar separation in one operation
  • Precise upper/lower cutter adjustment for PCB thickness range: 0.8mm-3.0mm
Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting
Machine Video Demonstration
Watch Machine Operation Video 1 Watch Machine Operation Video 2
Technical Specifications
Total DimensionL2600×W850×H1050mm
Inlet Conveying Length850mm
Outlet Conveying Length850mm
Separating Blades Number20 groups upper/lower (40 total)
Max PCB LengthUnlimited
PCB Thickness0.6-5.0mm
Separating Capacity11 lines simultaneously
Single PCB Width8-20mm
Max PCB Width300mm
Max Component Height30mm
Blade MaterialSKD11
Blade Lifespan1,000,000 cycles (1.2m long, 3mm thick PCB)
Voltage220V/50Hz or 110V
Machine Weight210kg
Power200W
Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting
Standard Configuration
  • Multiple Groups Of Blades PCB Separator
  • 40 pieces of blades installed
  • 1 year parts warranty
Optional Configuration
  • SMEMA connector
  • Circular blade 900×40pcs
  • Package free options
Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting Multiple Groups of Blades PCB De-paneling Machine PCB Dividing Equipment LED Cutting
Manufacturer Information
YUSH Electronic Technology Co., Ltd. is a specialized manufacturer and trader in PCB depaneling, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, all products comply with international quality standards and serve markets worldwide.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2014, serving global markets including Eastern Europe, North America, South America, and Europe with 301-500 personnel.
Quality Guarantee
Pre-production samples and final inspection before shipment ensure consistent quality standards.
Product Range
PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.
Why Choose Us?
Founded in 2004, YUSH Electronic Technology brings extensive experience in PCB separator and electronic equipment machinery manufacturing.
Services Provided
Multiple delivery terms (FOB, CIF, EXW, DDP, DDU, DAF), various payment methods (T/T, L/C, PayPal, Credit Card), and multilingual support (English, Chinese, Spanish, Japanese, and more).
