Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUSH
Model Number :
YSV-5A
MOQ :
1 set
Price :
$25,800 / set
Weight :
300 kg
Power :
250 kW
Voltage :
220V/110V
Dimensions :
1250(1560)mm×800mm×1295mm
Blade material :
Imported high quality high speed steel
Board width :
Single boards 12mm(Whole board300mm)
Drive system :
Stepper motor / servo (optional)
Cutting speed :
300-500mm/s
Cutting boards types :
Two-way V-CUT well type products, single direction V-CUT products
V-CUT thickness :
One-third thickness
Working pressure :
0.5-0.8MPA
Operating Voltage :
220V/110V Optional
Equipment power :
300KW(Except Vacuum cleaner)
Machine weight :
300KG
PLC data storage :
100 groups
Description
Dual Voltage Design of 110V/220V, Suitable for Production Lines Both at Home and Abroad Automatic PLC-Controlled PCB Splitting

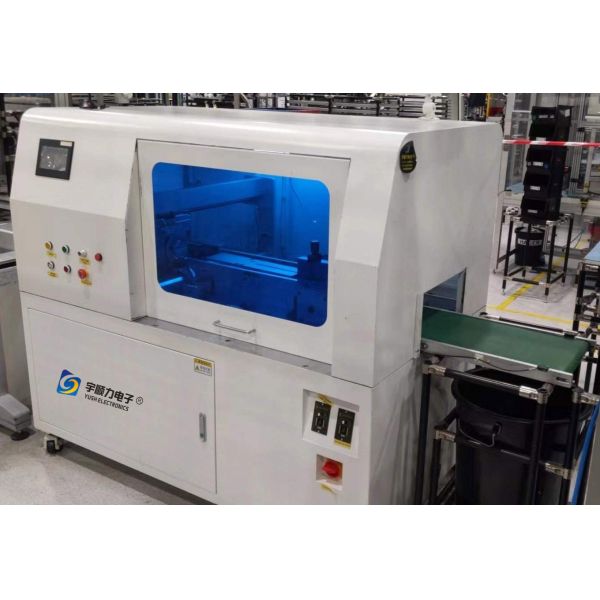

YSV-5A Automatic Double-Direction PCB Depaneling Machine
The YSV-5A automatic double-direction splitting machine features two-way horizontal and vertical splitting capabilities, specifically designed for well-shaped V-groove PCB boards that require division into two sub-boards.
  • Solves slow operation issues with V-groove PCB board division
  • High automation level enables seamless integration with other equipment for unmanned operation
  • Touch-screen operation for quick product changeover with modular back-end sub-boards
  • PLC data storage capacity of 100 product groups
  • Configurable for single-direction sub-boarding with horizontal/vertical selection
  • Optional vacuum cleaner available
Dual Voltage Design of 110V/220V, Suitable for Production Lines Both at Home and Abroad Automatic PLC-Controlled PCB Splitting
Key Features
  • Fully automatic two-way board splitting capability
  • Horizontal or vertical division options
  • Rapid product replacement with fast modular conversion
  • Compatible with upper and lower board machines for fully automated production
  • Simple operation requiring minimal training
  • Unique new tool design with 1.5x increased durability
Dual Voltage Design of 110V/220V, Suitable for Production Lines Both at Home and Abroad Automatic PLC-Controlled PCB Splitting
Technical Specifications
Item YSV-5A
Name Automatic double direction PCB depaneling machine
Dimensions L/W/H 1250(1560)mm × 800mm × 1295mm
Blade material Imported high quality high speed steel
Blades brand Yushunli
Board width Single boards 12mm (Whole board 300mm)
Drive system motor Stepper motor / servo (optional)
Cutting speed 300-500mm/s
Cutting boards types Two-way V-CUT well type products, single direction V-CUT products
V-CUT thickness One-third thickness
Working pressure 0.5-0.8MPA
Operating Voltage 220V/110V Optional
Equipment power 300KW (Except Vacuum cleaner)
Machine weight 300KG
