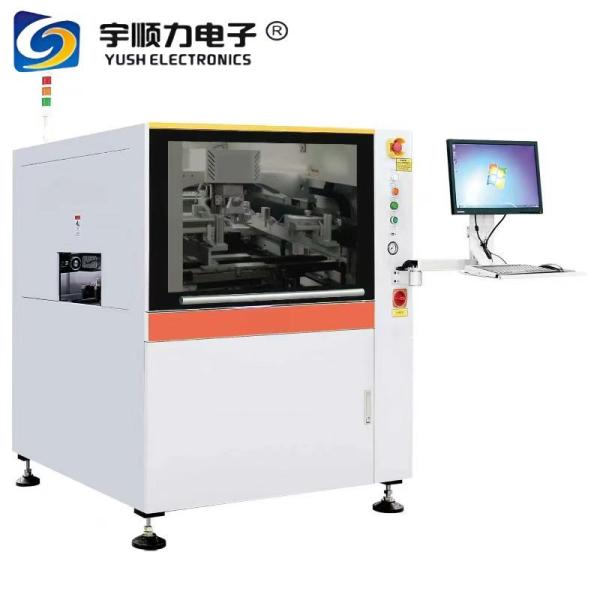

High Quality Fully Automatic Visual Printer For SMT Production Line
High Quality Fully Automatic Visual Printer For SMT Production Line
Specifications
Brand Name :
YUSH
Model Number :
YSL-9
Certification :
CE
Place of Origin :
Guangdong
MOQ :
1
Price :
USD 28000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000
Delivery Time :
20work days
Packaging Details :
wooden case
MODEL :
YSL-9
WEIGHT :
1100KG
Machine size :
1220x1560x1500
changeover time :
5min
Description
High Quality Fully Automatic Visual Printer For SMT Production Line
High Quality Fully Automatic Visual Printer For SMT Production Line
Technical Parameters
Screen Frames
Min Size 420x370MM
Max Size 737X737MM
Thickness 20-40MM
Stencil Position Mode Automatic Y-axis positioning

PCB Board Parameters

PCB Min Size 50x50mm
PCB Max Size 510x340mm
PCB Thickness 0.4-6mm
PCB Warpage <1%
Image Capture Mechanical Range 530x340mm
PCB Board Edge Clearance 2.5mm
Board Height 25mm
Transport Height 900±40mm
Transport Speed Max 1500mm/SProgrammable
Transport Mode One section transportation track
Maximum PCB Board Weight 5kg
Transport Direction Left-Right; Right-Left; Left-Left; Right-Right

Printing Parameters

Printing Speed 10-200mm/sec
Printing Pressure 0.5-25kg
Printing Mode Single or double squeegee printing
Release Distance 0-20mm
Snap-Mode Three stage demolding
Squeegee Angle 60°/55°/45°
Squeegee Type Rubber squeegee/Steel squeegee (Angle 45°/55°/60°)
Release Speed 0-20mm/sec

Printing Accuracy

Repeat Position Accuracy ±0.009mm@6o,CPK≥2.0
Printing Accuracy ±0.017mm@6 o,CPK≥2.0
Cycle Time(Excluding Cleaning) <7s (Exclude Printing&Cleaning )
Cycle Time(Including Cleaning) 13s
Changeover Time 5Min

Cleaning Parameters

Cleaning Stroke Automatic generation
Cleaning Position Post cleaning(BTBpre cleaning)
Cleaning Speed 10~200mm/sec
Cleaning Fluid Consumption Auto&Manually adjustable
Cleaning Paper Consumption Auto&Manually adjustable

Image Parameters

CCD FOV 10*8mm
Camera Type 130 megapixel digital camera
Camera System Lock up/down iption structure
Camera Cycle Time 150ms
Mark size 0.1~6mm
Stay Away Number Max:1pcs
Mark Number Max:4pcs
2D Detection Detect low tin/missing print/continuous tin

Functional Configuration

Safely Control Door open to stop, abnormal alarm
Smart UI Brand new interface, shortcut key operation
Permission Setting It can be freely set, and the authority division of operators,technicians and engineers can be set
BTB
Electrical cleaning layout is advanced, equipment is integrated,
saving space and improving efficiency
Standard MES System Customized output of Industry 4.0 solutions,can record SOP and equipment open data, and upload
SPI Connection Automatic compensation for offset and detection of less tin,Automatic cleaning of steel mesh
Traceability System Camera scan code, size compatible: 2.5*2.5-8.*8mm
In Series Two machines are printed in tandem to increase productivity

Appearance dimensions diagram

High Quality Fully Automatic Visual Printer For SMT Production Line

Installation equipment on-site matching

Machine Weight 1100kg
Main Power Supply AC:220±10v;50/60Hz,3KW,with stable current and power supply
Ground Wire The equipment needs to be grounded separately by pulling a grounding wire
Plug Type English SS145(13A)
Main Air Supply Source 4.0-6qf/cm?industrial gas source, with a straight airway diameter of 8mm

Equipment operating environment

Working Temperature -20℃-45℃
Working Environment Humidity 30%~60%
Electrostatic Protection ESD grounding electrostatic protection
