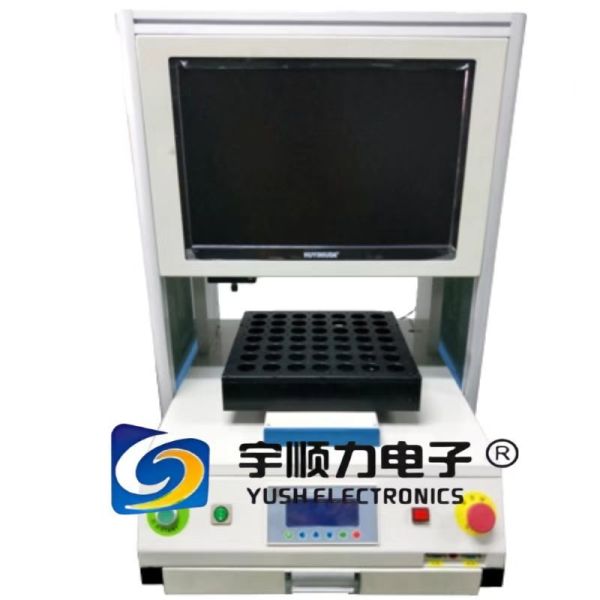

Precision PCB Depaneling Machine With Stepping Motor Drive System And High Speed Spindle For Consistent Cutting And Accuracy
Precision PCB Depaneling Machine With Stepping Motor Drive System And High Speed Spindle For Consistent Cutting And Accuracy
Specifications
Brand Name :
YUSH
Model Number :
YSV-3A
Certification :
CE
Place of Origin :
China,Guangdong
MOQ :
1
Price :
USD9800
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10
Delivery Time :
20work days
Packaging Details :
wooden case
Drive System Motor :
Stepping Motor
Cutting Performance :
500mm/s
Cutting Speed :
Max. 100mm / S Depends On Circuit Board Material And Cutting Quality
Configuration :
X, Y, Z Three Axes, Stroke: 300 * 300 * 100mm, Stroke Can Also Be Customized.
Description

Precision PCB Depaneling Machine With Stepping Motor Drive System And High Speed Spindle For Consistent Cutting And Accuracy

Drive System Motor: Stepping Motor Spindle: High Speed Spindle
Cutting Performance: 500mm/s Repeated Accuracy Of Driving System: ±0.02mm
Cutting Speed: Max. 100mm / S Depends On Circuit Board Material And Cutting Quality Resolution: ±0.01mm
Configuration: X, Y, Z Three Axes, Stroke: 300 * 300 * 100mm, Stroke Can Also Be Customized. Repeated Cutting Accuracy: < 0.05mm, For The Contour Of Straight Line And Curve

Precision PCB Depaneling Machine With Stepping Motor Drive System And High Speed Spindle For Consistent Cutting And Accuracy

Advantages
  • Practical, trajectory programmable; low stress; V-CUT machine can not be realized
  • Avoid tin crack and parts damage caused by artificial folding
  • Avoid using punching or folding, which may cause mechanical stress problems
Features
  1. Bench type single table cutting machine, with a speed of up to 100 mm / s and a positioning speed of 500 mm / s.
  2. High quality shaft system enables the system to accelerate and decelerate quickly, reduce the synchronization time, improve productivity, and maintain high precision.
  3. Use high-quality hardware to ensure high rigidity and high performance.
  4. All guide screws are covered to prevent dust and dirt from entering, so as to improve the service life and performance of the shaft.
  5. Avoid tin cracking and parts damage caused by artificial folding.
  6. Avoid the use of punching or folding, resulting in mechanical stress problems.
  7. It is suitable for cutting arc and line of finished plate.
  8. It is suitable for small multi wrench cutting, such as cell phone base plate, PDA, PC interface card, etc.
Technical Parameters
Drive system motor: stepping motor
Spindle: high speed spindle
Cutting performance: 500mm/s
Repeated accuracy of driving system: ±0.02mm
Cutting speed: max. 100mm / s depends on circuit board material and cutting quality
Resolution: ±0.01mm
Configuration: X, y, Z three axes, stroke: 300 * 300 * 100mm, stroke can also be customized.
Repeated cutting accuracy: < 0.05mm, for the contour of straight line and curve
PCB positioning: special or standard fixture
Loading and unloading mode: manual mode
Thickness of circuit board: 0.4mm-4mm
Safety setting: emergency stop switch of the whole machine, emergency stop switch of the main shaft, overheat of the main shaft motor and overload detection of the servo motor
Spindle motor: Power: 0.3kw, Maximum speed: 60000rpm, Cooling mode: air cooling
Machine size: 650*550*615mm
Weight: 73KG
Programming mode: keypad input teaching
Data storage capacity: 100-200 groups of files
Control mode: microcomputer control, online teaching programming, CAD file import
Transmission mechanism: guide rail + screw rod (Taiwan)
Vacuum cleaner: 1.5kw, 220V; size: 710 * 390 * 680mm; it can work continuously for 24 hours
Vacuum method: underside vaccum
Safety measures: equipped with protective cover
Configures:
1. Supporting 24-hour industrial dust collector
