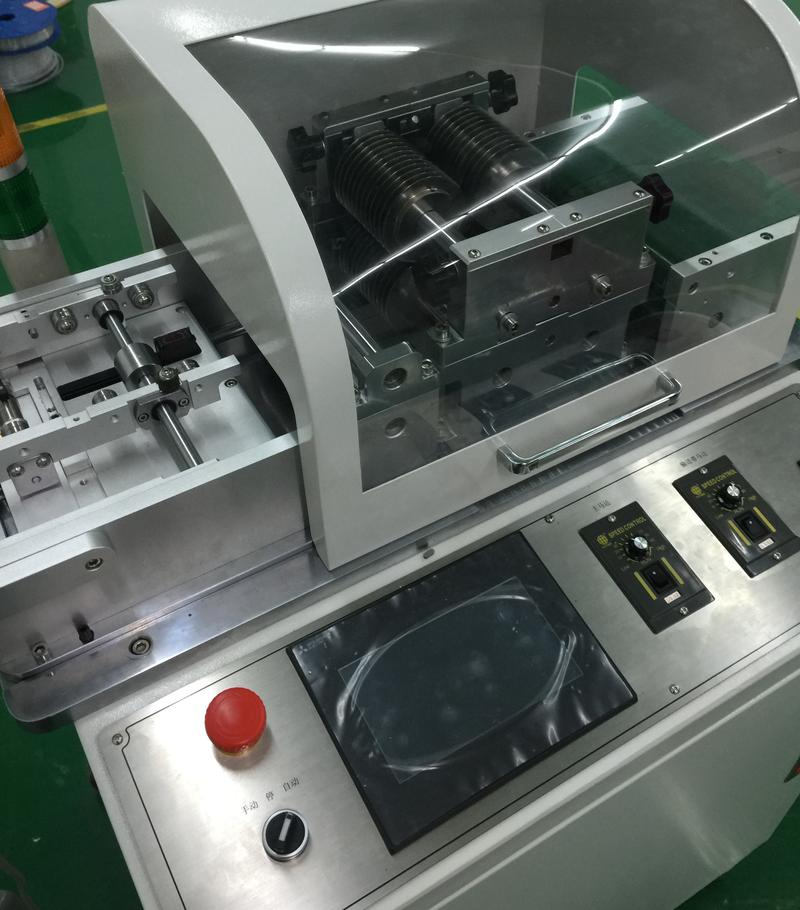

High Quality and High Efficiency Multi-Group Multi-Tool LED PCB Depaneling Machine YSVJ-650
High Quality and High Efficiency Multi-Group Multi-Tool LED PCB Depaneling Machine YSVJ-650
Specifications
Brand Name :
YUSH
Model Number :
YSVJ-650
Place of Origin :
Guangdong
MOQ :
1
Price :
USD9800
Payment Terms :
L/C, D/A, D/P,
Supply Ability :
1000
Delivery Time :
20work days
Brand :
YUSH
Model :
YSVJ-650
PCB Thickness :
0.6-5.0mm
Description

Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine
The machine is equipped with standard upper and bottom 20 groups of blades which can
separate the 10 lines or more LED light bars at same time.all blades are made of
endurable SKD11 high speed steel. PCB clamping and conveying system ensure precise separating without deformation and
burrs. The machine adopts touch screen and PLC control system which can monitor production
information,easy to operate. Full english operation interface , easy to operate.

High Quality and High Efficiency Multi-Group Multi-Tool LED PCB Depaneling Machine YSVJ-650High Quality and High Efficiency Multi-Group Multi-Tool LED PCB Depaneling Machine YSVJ-650

Features:
The conveying speed can be adjusted.
The single separated PCB width is 8-20 mm. Max cutting width 300mm;
Machine with automatic feeding system;
Machine is equipped with safety protection device.
Suitable cutting material of PCB :aluminum ,FR4,glass fiber.
Equipped with SMEMA connector ,easy to connect with upstream machine
The machine adopts the touch screen and PLC which can monitor production information.
MDS-900 is equipped with multiple sets of blades which can separate the whole light
bar board one time.
The distance between upper and lower cutter can be precisely adjusted, the separating
thickness of PCB range is : 0.8MM-3.0MM.
Model
 YSVJ-650
Total Dimension L2160*W 850* H1050mm
Inlet conveying length 850mm
Vacuum Cleaner Machine with vacuum cleaner
Outlet conveying length 850mm
Separating blades number 20 groups of upper and lower blades , total:40pcs
Maximum Cutting Length:
Unlimited
