High Precision PCB Selective Wave Soldering Machine for Electronics Manufacturing
High Precision PCB Selective Wave Soldering Machine for Electronics Manufacturing
Specifications
Supply Ability :
1000
Model Number :
YSL-450
MOQ :
1
Delivery Time :
20work days
Payment Terms :
L/C, D/A, D/P, T/T
Price :
USD 28000
Certification :
CE
Brand Name :
YUSH
Place of Origin :
China,Guangdong
Packaging Details :
wooden case
Description

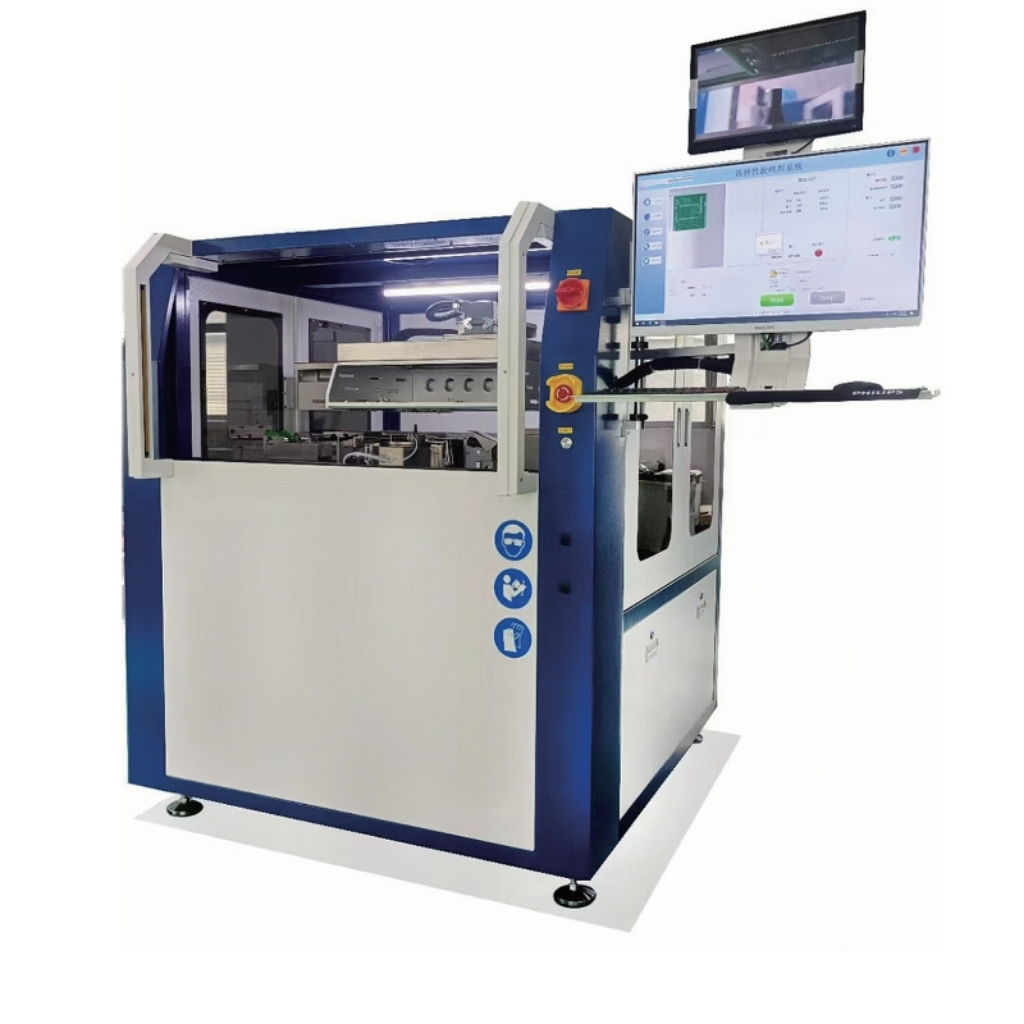

High Precision PCB Selective Wave Soldering Machine
Advanced selective wave soldering equipment designed for precision electronics manufacturing with closed-loop servo control and nitrogen atmosphere soldering capabilities.
Technical Specifications
Specification Details
Machine Model YSL-450
Overall Dimensions 1350(L) × 1500(W) × 1650(H) mm
PCB Size Range Min: 30(L) × 30(W) mm | Max: 450(L) × 400(W) mm
Machine Design Closed-type Construction
Preheating System Top and Bottom Preheating
Operating Height 900 ± 20 mm
Weight Approximately 500 kg
Flux Capacity 1 Liter
Power Supply AC 380V 3-phase, 50/60Hz
Total Power 14 kW
Temperature Control PID + SSR
Temperature Range Maximum 350°C
Temperature Accuracy ±2°C
Wave Height Maximum 0-8 mm
Soldering Accuracy ±0.05 mm
Motion System XYZ Axis
Motion Control Closed-loop Servo Control
Nitrogen Consumption 1.5-2 m³/h (99.999% purity)
Key Features
  • High precision soldering with ±0.05mm accuracy
  • Closed-loop servo control for precise motion
  • Dual preheating system (top and bottom)
  • Nitrogen atmosphere soldering capability
  • PID temperature control with SSR technology
  • Compact closed-type design
