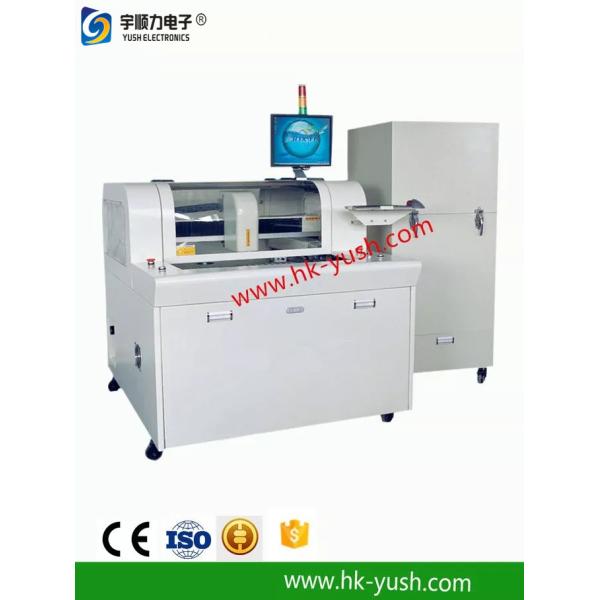

320mm Windows 7 System PCB Router Machine Morning Star Spindle
320mm Windows 7 System PCB Router Machine Morning Star Spindle
320mm Windows 7 System PCB Router Machine Morning Star Spindle
320mm Windows 7 System PCB Router Machine Morning Star Spindle
320mm Windows 7 System PCB Router Machine Morning Star Spindle
320mm Windows 7 System PCB Router Machine Morning Star Spindle
Specifications
Brand Name :
YUSH
Model Number :
YSL-1200
Certification :
CE
Place of Origin :
Jiangsu
MOQ :
1set
Price :
USD1000~5800
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100Sets/ month
Delivery Time :
5-10 days
Packaging Details :
Wooden case
Setting Fixture :
2 Stations
Working Area :
320mm, Y: 320mm, Z: 60mm
PCB Thickness :
0.5 To 3.0 Mm
Precision Of Cutting :
± 0.10 Mm
Description

Windows 7 System PCB Router Machine Morning Star Spindle / PCB Depanelizer

PCB Router Machine Morning Star Spindle,PCB routing depaneling YS-1200

1. Manual loading/unloading processing

2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value.

3. Friendly touch panel with 10X CCD camera to minimize the time of programming

4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy

5. Auto router bit check to prevent the bit break incomplete cutting.

Specification:

Setting Fixture 2 stations
Working Area X: 320mm, Y: 320mm, Z: 60mm
Cutting Area Max: X: 320mm, Y: 320mm Min: X: 100mm, Y: 100mm Z: 15mm
PCB Thickness 0.5 to 3.0 mm
PCB Component Height Top side: 15mm Bottom side: 45mm(with specific jig)
Router Bit Diameter 0.8 ~ 2.0 mm(Option: Over 2.0mm)
Precision of Cutting ± 0.10 mm
Positioning Accuracy ± 0.01mm
Dimensions (W)2002mm x (D)1279mm x (H)1716mm + 578mm signal tower
Weight approx. 500 Kg

320mm Windows 7 System PCB Router Machine Morning Star Spindle

  • Positioning Repeatability : ± 0.02mm
  • Number of Axis in use : 7 Axis (X, YL, YR, Z, Carry, P/P, Conveyor).
  • Driving Speed (Max) : X, YL, YR : 1000mm/sec, Z: 750mm/sec
  • Cutting Speed (Max) : X, Y, Z: 100mm/sec (It's according to the specification of Bit for the best speed setting )
  • Spindle Motor : High speed variable frequency motor 150W (Max.50,000rpm)
  • Bit Change : Manual
  • Cutting Ability : Linear, Circular, U-curve, Arc, L-curve
  • Motor of Axis : 7 Axes (150W AC Servo motors)
  • Bit Shift Count : Max. 2
  • Route Planning : Direct coordinate input or manual guiding with × 10 CCD camera
  • Safety Area Sensor : n/a
  • Bit Break Detection : Standard
  • Program Storage : HDD
  • Program Backup : USB
  • Operating System : Windows 7
  • Man-Machine Interface : Touchscreen Industrial Monitor + Keyboard + Mouse
  • Conveyor Adjustment : Manual adjustment Max: Y: 350mm Min: Y: 100mm
  • Conveyor load capacity : Max: 2 Kg
  • PCB Loading/Unloading : Automatic
  • Power Supply : 3 Phase AC220V±3% 50Hz/ 60Hz, 3.5 kw
  • Air : 0.5Mpa
