Lowest Cut Stress PCB Depaneling Machine For Alum Thick Board
Lowest Cut Stress PCB Depaneling Machine For Alum Thick Board
Lowest Cut Stress PCB Depaneling Machine For Alum Thick Board
Lowest Cut Stress PCB Depaneling Machine For Alum Thick Board
Specifications
Brand Name :
YUSH
Model Number :
YSVC-2
Certification :
Ce certificate
Place of Origin :
China
MOQ :
1 set
Price :
USD1
Payment Terms :
T/T, Western Union
Supply Ability :
120 sets/ month
Delivery Time :
3-5 work days
Packaging Details :
plywood case
Cutting length :
200/330/00/450/480mm
blades shape :
two linear blades
Material for the blades :
high speed steel
warranty :
free for one year
Shipping way :
EXW/FOB/CIF
packing :
plywood case
Description

Lowest Cut Stress PCB Depaneling Machine For Alum Thick Board

Specifications for pcb depaneling

1. PCB depaneling machine
2. Pneumatically driven electric control
3. can cut all kind of PCB
4. hight quality
5. lowest cut stre

Lowest Cut Stress PCB Depaneling Machine For Alum Thick Board

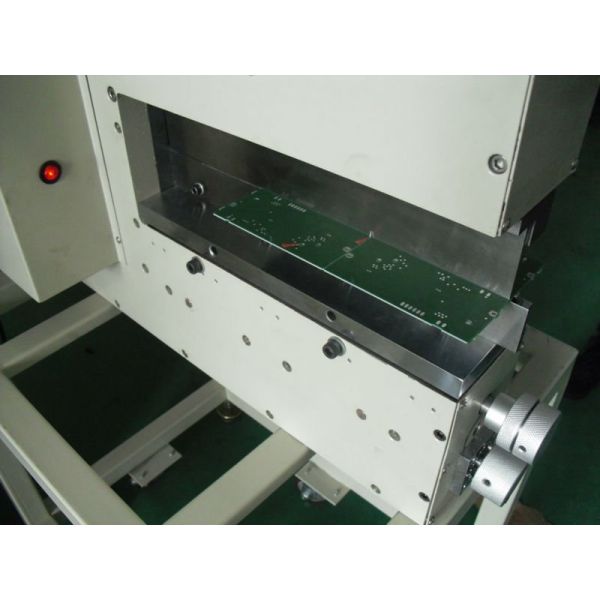

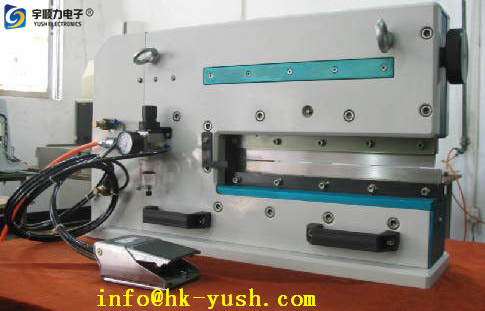

All-purpose V-CUT PCB depaneling machine

Pneumatically driven and electric control

The machine is pneumatically driven and electric control. The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even
sensitive SMD-components like ceramic capacitors will not be damaged by the separate process. Due to the special design of the knives also boards with high components placed close to the edges can be separated safely. Based on a proven method of separating, wedge-shaped knives are used to cut the panels within the groove. This enables boards of less than 1 mm thickness to be separated safely and without creating stress.

Features for pcb depaneling machine

1, No vibration during the process to prevent damage to precise PCB
2,Gap for insertion of the board can easily be adjusted by means of the adjusting knob in the top side of the machine, low friction design is applied.

3,Lower knife height adjustable, the front and real portion can be adjusted separately. No thin plates are required after re-sharpening the knife.

4,Operation and maintenance can be done also by unskilled personnel

Lowest Cut Stress PCB Depaneling Machine For Alum Thick Board

Specification:

Specification

Power Voltage: 90~240VAC

Air pressure: 5Kgs/cm2

Output : 12.5 ton(Gross)

Part-Up height: 39mm (max)

Part-Down height : 19mm (max)

Effective length: 350mm,

PCB thickness: 0.1mm~1.0mm (without v-grooved )

Weight : 170kg

Upper blade: 350mm(L)*58mm(W)*7mm(T)

lower blade: 360mm(L)*39mm(W)*7mm(T)

cut running: 350mm

protect times : 200000 times ,can abrade 3-4 times

Machine dimension: 500mm*650mm*1050mm

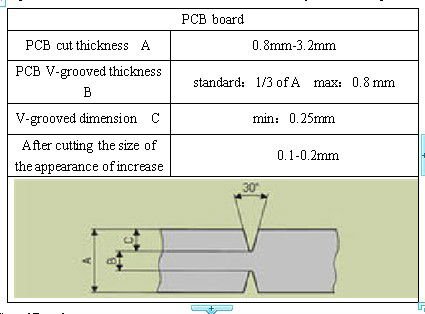

PCB Board

Lowest Cut Stress PCB Depaneling Machine For Alum Thick Board
