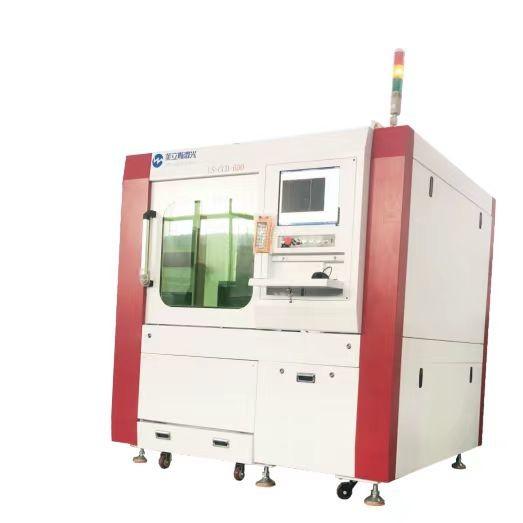

PCB Laser Routing Machine For Metals
PCB Laser Routing Machine For Metals
PCB Laser Routing Machine For Metals
PCB Laser Routing Machine For Metals
PCB Laser Routing Machine For Metals
PCB Laser Routing Machine For Metals
Specifications
Brand Name :
LaiLiSi
Description

Brand: LaiLiSi

Model: LS-CCD-600

Parameter List Machine Power Supply:380V/AC

Single-phase power: 380VIAC

Machine Voltage: 5.5KW

Cooling Mode: Constanttemperature water cooling

Laser Power: 1000W/1500W/2000W

(Optional) Wavelength of Laser: 1080nm

Maximum Processing Size: 880mm

Thickness of Processing Plate: 0.3～3.2mm

Processing Speed: 0~16m/min

Repeat positioning precision: ±0.01mm

Geometric Positioning Precision: ±0.03mm

Ambient Temperature :25°C+/- 2°C

Ambient Humidity:≤RH60±5%(No obvious condensation)

Machine Dimensions: L1800mm*W1800mm*H1900mm

Machine Weight:1500KG


ADVANTAGES :

1, Double- shaft, double-drive, highly follow without touch, can cut various graphics on the flat sheet of aluminium substrate.

2,High precision, high speed, narrow slit, small heat affected zone, sleek cut surface withoutburr.

3, The laser cutting head does not touch the surface of the material and does not scratch the processing substrate.

4, Good processing performance, can process any graphics, and quickly develop new products without opening molds.

5,Non-deformable cut for aluminum substrate, copper substrate materials etc.

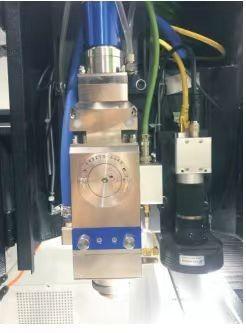

6,Equipped with a visual system, the product can becut precisely through CCD positioning to avoid scrap of cutting board.

7,The software has a powerful log function, whichcan record theworking process of the machine inreal time, and can directly import datain multiple formats.

8,The structure of gantry marble base can preventvibration effectively.
