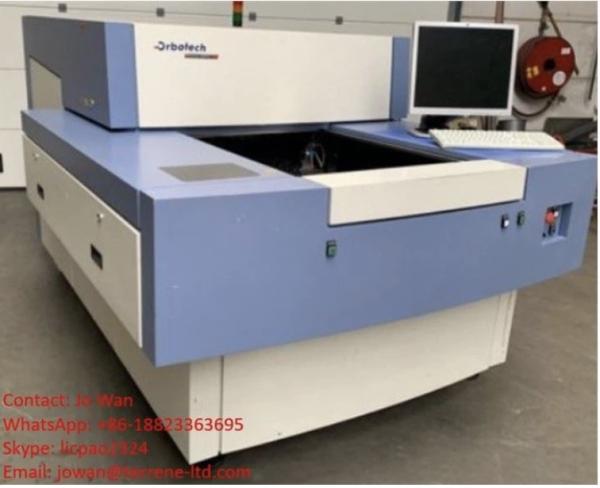

Used Laser Direct Imaging(LDI) Machine For PCB

Product Details

Model: Paragon 8000

Brand: Orbotech

MAX substrate: 25″ x 32″ / 635 x 812mm

MIN exposure: 24″ x 32″ / 609 x 812mm

Substrate thickness: .001″ – .315″ / .025 – 8mm

Power: 4W

Feature:

1. No mask which minimizes time and complexity

2. Registration accuracy of 20μm for inner layers

3. ±10μm annular ring accuracy

4. Individual panel scaling to factor in the distortion

5. User feedback to improve results

6. Partial scaling

7. Seamless automation for ease of use and convenience

8. Depth of Focus±300μm for challenging topography problems

9. Rigid-flex single scan

10. Traceability: Machine ID, scaling stamp, serial number stamp, date, and time stamps

11. High-quality imaging with LDI and conventional resists

12. UV range 355nm

13. 4000/8000 dpi, 5/2.5μm

14. 84-160 throughput 8m J/cm² photoresist

15. 42 throughput 50m J/cm² photoresist
