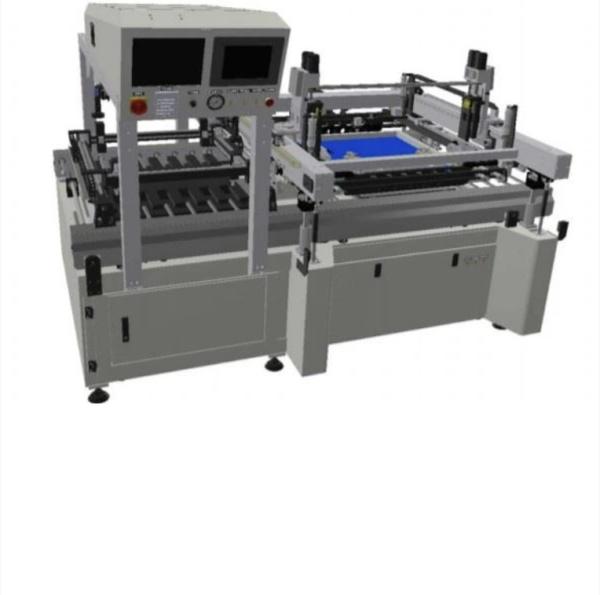

Used Fully Automatic CCD Registering Double Side PCB Screen Printer
Used Fully Automatic CCD Registering Double Side PCB Screen Printer
Specifications
Description

Model: CHTO-660-2

Origin: TaiwanUsed Fully Automatic CCD Registering Double Side PCB Screen Printer

Brand: ChingHuei

Suitable: Double-sided,Multi-layer

Maximum Printing Area: 660mm x 660mm

Minimum Printing Area: 460mm x 460mm

Maximum Frame Size: 1100mm x 1100mm

Minimum Frame Size: 950mm x 950mm

Printing Table Area: 780mm x 850mm

Thickness: 1.0~5.0mm

Speed of Printing: 10~600mm/sec

Production Efficiency: 2~8pcs/min

Squeegee Slope Angle: 0˚~45˚

Squeegee Angle in X-Y Plane: ±5˚

Fixed Type: Pin Fixed Position or Vacuum Clamp

Power Requirement: 3ø-AC220/380V-50/60HZ-11.6KW

Air Consumption: 400L/min(5~6kg/cm²)

Machine Dimension: (L)3100mm x (W)2160mm x (H)2010mm

Machine Weight: 3750kgs

Used Fully Automatic CCD Registering Double Side PCB Screen Printer
