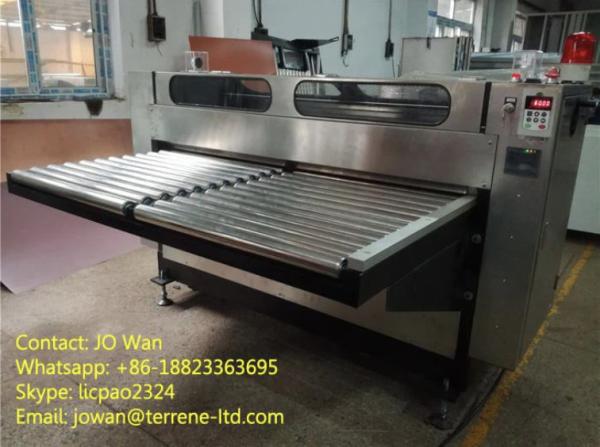

Semi-Automatic CCL Cutting Machine
Semi-Automatic CCL Cutting Machine
Specifications
Description

Specifications:
Product Name: 3ph 380V High Precision Second Hand Semi-automatic Sheet Cutting Machine

Machine Size L*W*H: 1950x1315x1135mm

Working Height: 750mm

Net Weight: 1.5T

Work Power Supply: 3ph 380V

Power: 4KW

Board Thickness: 0.3-2.5mm

Length of Plate: 150mm --1500mm

Blade Specification: (D)200*(d)140*(T)20mm

Blade Thickness: 20mm

Motor: CH3-PHASE from Taiwan

Converter: 2.2KW from Taiwan

Blade: Cemented carbide(HRC69)

Roller Platform: Tungsten Steel (HRC85)

Blade Shaft: S45C(HRC62)

Rubber Shaft: Ding Qing Rubber

Relay: OMRON

Control System: PLC

Material of Board: ALCCL, Copper Clad Board, FR-4, Single and double panel board, Multi-ply board, insulation material

Transport platform: Drum or plate type

Features:
1. Adopt a fully automatic cylinder type to cut material, save unnecessary manpower.

2. Adjust the width of the knife to any width.
3. The electric motor accessories are all international famous products, which improve the service life of the products.

Semi-Automatic CCL Cutting Machine

Our Service:
Terrene offers a one-stop service for customers overseas who need someone trustworthy to help them to search, purchase and integrate the goods they want. Terrene can save you plenty of time and energy, minimize the purchasing cost and offer the right products you need. This high efficient working way will promote your business development greatly.

Terrene follows closely with PCB-related techniques and industrial development figures, continuously optimize and develops new products, and helps the enterprises to have superior services and best investment rewords.

Terrence will offer enterprises the best products, the best whole-set services, with the best reputations. Terrene is willing to be your reliable long-term partner.
