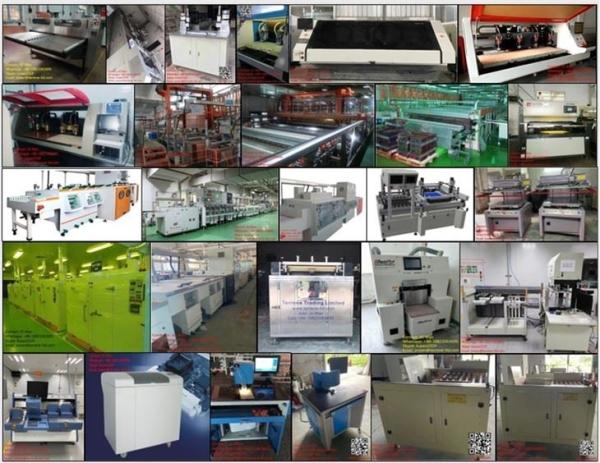

Whole PCB Factory For Double-Sided On Sale

Item Photo Product Name Brand Model Product specifications quantity
1

Whole PCB Factory For Double Sided On Sale

 High Precision Second Hand Semi-Automatic Sheet Cutting Machine Length of Board: 150mm ~1500mm
Board Thickness: 0.3-2.5mm
Machine Size L*W*H: 1950x1315x1135mm		 1
2

Whole PCB Factory For Double Sided On Sale

 Used PCB Four Sides Edge Grinding Machine Max. Production Size: 620mm*620mm
Min. Production Size: 250mm*250mm
Board Thickness:0.5-2.5mm		 1
3

Whole PCB Factory For Double Sided On Sale

 Used Semi-Automatic PCB Pin Machine/Dowel Machine XinYao XY-660A Spindle Speed: 24000rpm
Maximum Board Size: 600mm x 560mm
Minimum Board Size: 200mm x 150mm		 1
4

Whole PCB Factory For Double Sided On Sale

 Renewed LongWan 2 Spindle Drilling Machine LongWan Number of Machine Spindle: 2
Processing size: 550*650mm
Spindle Speed: 160Krpm		 2
5

Whole PCB Factory For Double Sided On Sale

 Renewed Schmoll XL6-21 PCB Drilling Machine With KL200W-1 Spindle Schmoll XL6-21 Spindle Model: KL200W-1
Spindle Speed: 200K rpm		 5
6

Whole PCB Factory For Double Sided On Sale

 Used BTF6656*4-1 CNC Drilling and Routing Machine BTF BTF6656*4-1 Number of Machine Spindles: 4
Board Size: 560mm*660mm
Spindle Speed: 60Krpm		 2
7

Whole PCB Factory For Double Sided On Sale

 Used BTF 6070GS*4 Routing Machine BTF 6070GS*4 Spindle Quantity: 4
Working Area: 600mm*700mm
Spindle Speed: 60Krpm		 1
8

Whole PCB Factory For Double Sided On Sale

 Used Plated-Through-Hole PTH Production Line PCB Specification: Customized
Voltage: 3Phase ,380V		 1
9

Whole PCB Factory For Double Sided On Sale

 Used PCB Automatic Copper Plating Production Line Maximum Board Size:610mm X 1100mm
Board Thickness: 0.2-6.0mm
Maximum Copper Thickness: 12oz		 1
10

Whole PCB Factory For Double Sided On Sale

 Used PCB Secondary Copper Electroplating Equipment AEL Loading Method: manual or automatic mode can be used for loading and unloading plates.
Handling Method: Gantry type vertical hanging conveyor is adopted.
Hanging Frame: top clamp suspension type (screw hand lock or quick clamp)		 1
11

Whole PCB Factory For Double Sided On Sale

 Used PCB Exposure Machine Kairuide CR-LE1200 Exposure Area: 680mm x 1200mm
Light Source: Cold Light UVLED (i.e. bright type)
Board Thickness: 0.05~4.5mm
Dimensions: 1780mm x 1780mm x 2600mm		 2
12

Whole PCB Factory For Double Sided On Sale

 Double Side PCB Grinding Production Line 90% New Dimensions: 8200(L)*1850(W)*1950±25(H)mm
Workpiece size:
maximum: 650mm*650mm
minimum: 250mm*250mm		 1
13

Whole PCB Factory For Double Sided On Sale

 Used UNIVERSAL PCB Developing-Etching-Stripping Production Line UCE Max Working Panel Width: 650mm
Board Thickness: 0.075-3.2mm
Technology Highlights: Vacuum Etching, better Uniformity and Tolerance of Line Width.		 1
14

Whole PCB Factory For Double Sided On Sale

 Second Hand PCB Finished Cleaning Machine Golden Eagle GE-QX6 Working width: 650mm
Cleaning Type: Double Spray with Oscillate system
Workpiece Thickness: 0.2~3.2mm
Machine Dimension: 8000*1700*1850mm		 1
15

Whole PCB Factory For Double Sided On Sale

 Used Fully Automatic CCD Registering Double Side PCB Screen Printer ChingHuei CHTO-660-2 Maximum Printing Area: 660mm x 660mm
Minimum Printing Area: 460mm x 460mm
Maximum Frame Size: 1100mm x 1100mm
Minimum Frame Size: 950mm x 950mm
Printing Table Area: 780mm x 850mm		 2
16

Whole PCB Factory For Double Sided On Sale

 Used Silk Printing Machine ATMA AT-80P Max Printing Area: 600 x 800 mm
Max Frame O/D size: 900 x 1100 mm
Table Size: 700 x 900 mm		 2
17

Whole PCB Factory For Double Sided On Sale

 Used Industrial Oven Drying Equipment Studio temperature: Adjustable from room temperature to 250 degrees
Temperature control mode: PID digital display intelligent temperature control, button setting, setting value and actual temperature LED digital display		 1
18

Whole PCB Factory For Double Sided On Sale

 Used OSP Line And Brushing Machine Production Board Specifications: 610 * 610mm (maximum board) 80 * 60mm (minimum board)
Production Board Thickness: 0.2~3.2mm
Conveying Surface Width: 700mm (Effective Width 640mm)		 1
19

Whole PCB Factory For Double Sided On Sale

 Used Manual V Cut Machine Product Use: Circuit Board V Cutting 3
20

Whole PCB Factory For Double Sided On Sale

 Used Fully Automatic V-Cutting Machine ShuoHui SH-V405S Cutter number 4
Board thickness 0.4mm ~ 3.2mm
Cutting material Rigid-Flex PCB, Aluminum PCB, Copper PCB, and Nonmetal PCB		 1
21

Whole PCB Factory For Double Sided On Sale

 Used MR-1 Automatic Dedicated Robot E-Testing Machine Mason MR-1 Testing Size: (X*Y)500mm (L)x 350mm(W)
Size of PCB: 50mm (L)x 250mm(W) (Min);450mm (L)x 250mm(W) (Max);
PCB Size: 13.8"x16.5"(340mmx420mm) 3.15"x3.15"(80mmx80mm)		 4
22

Whole PCB Factory For Double Sided On Sale

 Used AVI Automatic Visual Inspection Machine PCB IMAGINE-R35 Resolution: 35μm/pixel
Board Size: 80mmx80mm ~250mmx330mm
Test Speed: 160mm/s 		1
23 Whole PCB Factory For Double Sided On Sale Second-Hand Wande Laser Plotter Wande Drawing format 660*508*mm
Scanning accuracy 4000DD12000mm
Effective format 660*508*mm 		1
24

Whole PCB Factory For Double Sided On Sale

 Used CCD PCB Guide Hole Drilling Machine For ALCCL Processing range: 600*800mm
Table Size: 700*900*1100 (length*width*height)
Drilling Speed: 0.6 seconds/hole
Spindle Speed: 20~60Krpm		 1
25

Whole PCB Factory For Double Sided On Sale

 Used Film Punching Machine For PCB Xuelong XL-CKB Processing Area: 600mm x 400mm
Machine Dimension: (L)1100mm x (W)730mm x 1200mm(H)		 1
26

Whole PCB Factory For Double Sided On Sale

 Second Hand PCB Automatic Oblique Vertical Unloader Max. Panel Size: 650*650mm
Min. Panel Size: 250*250mm
Panel Thickness: 0.3~3.2mm		 2
27

Whole PCB Factory For Double Sided On Sale

 Used PCB Automatic Oblique Vertical Loader Max. Panel Size: 650*650mm
Min. Panel Size: 250*250mm
Panel Thickness: 0.3~3.2mm		 2
