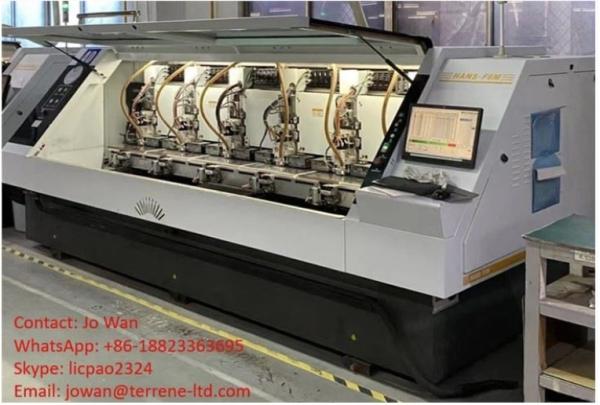

2nd Hand HAN'S 6 Spindle PCB Drilling Machine
2nd Hand HAN'S 6 Spindle PCB Drilling Machine
Specifications
Description
2nd Hand HAN'S 6 Spindle PCB Drilling Machine
Product Details

Model: HANS-F6M

Origin: China

Number of Machine Spindle: 6

Working Area: 546mm x 690mm

Spindle Speed: 180K-200K rpm

XYZ Drive Mode: Full Linear Motor

XY Maximum Speed: 80m/min

Z Maximum Speed: 50m/min

Positioning Accuracy: ±0.005mm

Drilling Accuracy: ±0.0254mm

Repeatability Accuracy: ±0.0025mm

Broken Drill Detection System: Capacitive Broken Drill Detection

Processing Tool Diameter Range: Φ0.1mm~Φ6.35mm

Air Pressure: 6.5-7.5bar

Power Supply: 3PH－AC380V+N+PE, 50/60 Hz

Maximum Power Consumption: 15KVA

Machine Dimension: 4130mm x 2000mm x 1610mm

Weight: 14T

Production Date: 2014
