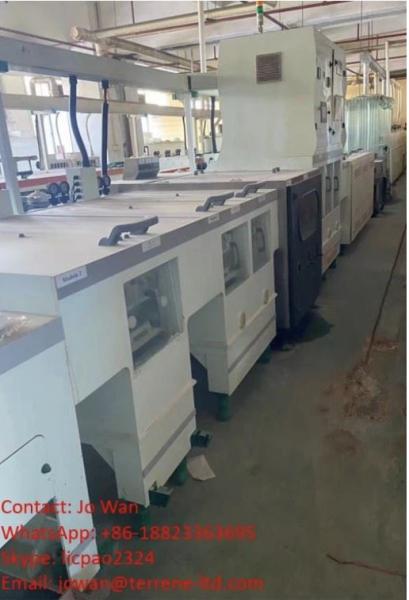

OSP Line for High Quality PCB Manufacturing
OSP Line for High Quality PCB Manufacturing
Specifications
Description

Technical parameters:

Origin: China

Conveying Speed: 1.0~6.0m/min (step-less frequency conversion adjustable)

Production Board Specifications: 610 * 610mm (maximum board) 80 * 60mm (minimum board)

Production Board Thickness: 0.2~3.2mm

Conveying Surface Width: 700mm (Effective Width 640mm)

Line Specifications: Ø30mm

Travel Wheelbase: 35mm

Water Consumption: 8~12L/min

Consumption of Pure Water: 16~24L/min

Power Consumption: According to the actual process

Control System: Programmable PLC Controller (LG, Japan) and Human Machine Interface (Taiwan Weilun)


Features:

(1) The nozzle adopts a quick-disconnecting fan nozzle, which is most convenient for daily maintenance and the nozzles are staggered to effectively clean the positions of the working plate surface.

(2) Use a special wheel and staggered arrangement to ensure no wheel marks on the board surface

(3) Anti-oxidation section special waterjet design can take away the surface water/air film, increase the surface and the reaction capacity in the hole. The waterjet design can form a special baffle with a depth ratio of 1:8 to reduce the blisters; The tank has a small capacity and the syrup replacement is fast.


Process flow:

Load →Degreasing→Washing→Micro-etching→Washing→Acid Washing→Washing→DI Washing→Antioxidation→Brushing→Washing→DI Washing→Dry Plate→Isolation→Cooling and Discharging
