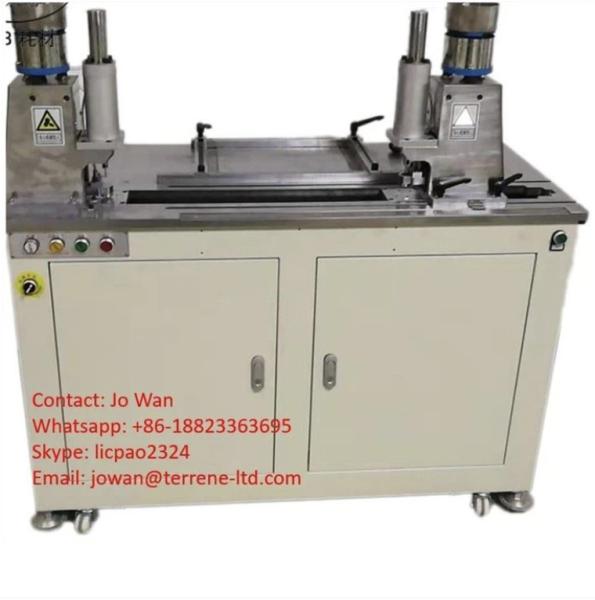

Second Hand Dowell Machine For PCB
Second Hand Dowell Machine For PCB
Specifications
Description

Model: JASRW-660A

Origin: China

Spindle Speed: 24000rpm

Spindle Frequency Conversion: Frequency Power

Spindle Spring Clamp: Ø3.175mm(1/8'')

Pin Specificaiton: 3.15/3.175/3.2

Pin Length: 15.8/17.8/19.8mm

Maximum Board Size: 600mm x 560mm

Minimum Board Size: 200mm x 200mm

Board Thickness: 10mm

Power Supply: 220V/50Hz

Power: 0.5kW

Air Pressure: 5kgf/cm²

Air Consumption: 180L/min

Equipment dimensions: 1080x480x1250mm

Table Size: 710 x 420mm

Machine Weight: 260kg
