Brand: Circuit Tech

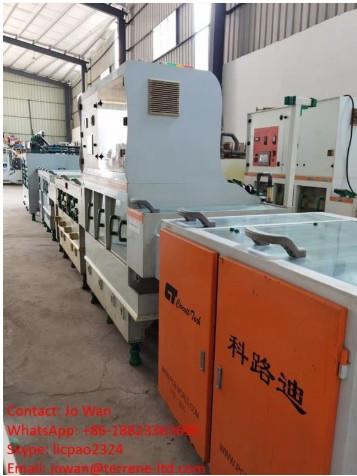

Process Flow: Load→Water Washing → Etching → Ammonia Water Washing → Water Washing → Inspection → Tin Removal → Water Washing → Cold & Hot Drying → Unload

Origin: China

Conveying Speed: 1.0 ~ 6.0m / min (adjustable)

Board size: 610 * 610mm (maximum) 150 * 100mm (minimum)

Thickness: 0.2 ~ 3.2mm

Conveying Width: 700mm (640mm Effective Width)

Line Reel Film Specifications: Ø 43mm

Roller Wheelbase: 55mm uncoated film, other 65mm

Water Consumption: 24~36L/min

Power Consumption: 35KW/H (pump and fan power), 36KW/H (heating tube power)

Control System: Programmable PLC Controller (Japan LG) and Man-Machine Interface (Taiwan Weilun)

Equipment Feature:

Etching parameters: 1. Etching uniformity ≥ 92% or more. 2. Etching factor ≥ 3.0

Film Removal :

1. The body is designed with stainless steel to prevent the body from aging.

2. The drum filter residue method can effectively remove the peeled film and facilitate the management.

3. The bulky design is added before the film is removed to effectively reduce the film removal time.

Our Service:
Terrene offers a one-stop service for customers overseas who need someone trustworthy to help them to search, purchase and integrate the goods they want. Terrene can save you plenty of time and energy, minimize the purchasing cost and offer the right products you need. This high efficient working way will promote your business development greatly.

Terrene follows closely with PCB-related techniques and industrial development figures, continuously optimize and develops new products, and helps the enterprises to have superior services and best investment rewords.

Terrence will offer enterprises the best products, the best whole-set services, with the best reputations. Terrene is willing to be your reliable long-term partner.
