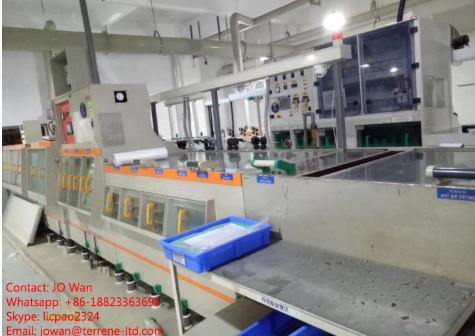

Guoqi PCB Developing Machine / PCB Developer
Guoqi PCB Developing Machine / PCB Developer
Specifications
Description

Working Process:
Process flow: Load-- Developing1, 2 -- pressure water washing-- CW washing-- Blot Up --Cold & Hot Dry-- Unload

Main technical parameter:
Brand: Guoqi

Power: 380V/50Hz/60Hz
Working width: 650mm
Working height: 850mm (+/50mm adjust)
Min / Max board size: 120*80mm / 500*500mm
Develop type: Double Spray with Oscillate system
Workpiece thickness: 0.2~3.2mm
Working Temperature: 35~55
Conveyor Speed: 0.5~6m/min
Heater/Cooling Pipe: Titanium Pipe
Machine dimension: 8000*1700*1850mm

Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material
