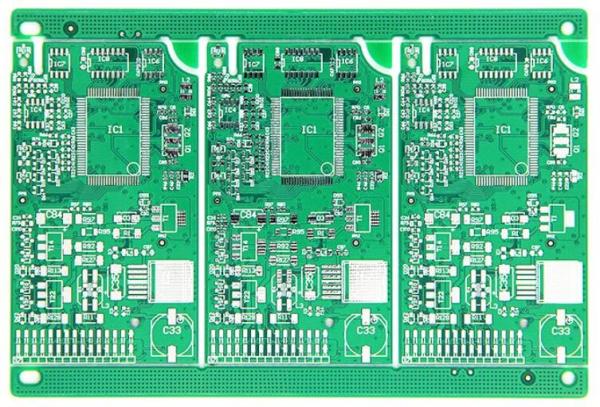

25um Substrate FR4 Printed Wiring Board 4 Layer With HAL Lead Free
25um Substrate FR4 Printed Wiring Board 4 Layer With HAL Lead Free
25um Substrate FR4 Printed Wiring Board 4 Layer With HAL Lead Free
25um Substrate FR4 Printed Wiring Board 4 Layer With HAL Lead Free
Specifications
Brand Name :
ABIS
Model Number :
ML-8
Certification :
UL, ISO9001,ISO14001,SGS,RoHS, IATF16949
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
60,000 s.q.m/month
Delivery Time :
0.5-4 week
Packaging Details :
Vacuum packing
Substrate :
FR4 Grade
Layers :
4
Min hole :
0.1mm
Min line/space :
4/5mil
Surface finish :
Hal lead free
Copper thick :
2/1/1/2 OZ
Copper wall :
25um
Finish board thick :
1.62mm
Description
Substrate FR4 Printed Wiring Board With HAL Lead Free


1. 4 layer printed wiring board.

2. FR4 grade substrate.

3. HAL lead free +LPI solder mask.

4. 0.1mm min drill holes.

5. 25um PTH wall.


​

1 Layer 4
2 Substrate FR4 grade
3 Board thickness 1.62mm
4 Copper wall 25um
5 Min hole 0.1mm
6 Min width 0.1mm
7 Min spacing 0.13mm
8 Surface finish HAL lead free
9 Copper thick 2/1/1/2OZ
10 Solder resist LPI green
11 Dimension Tolerance ±0.1mm
12 Solder mask thick 10-30um
13 Date code Yes
14 Certificates ISO9001/14001,SGS,IATF16949,UL,RoHS
15 Shape V score,milling

FAQ

Q1:Factory or whosale?
A: We're factory with 60000sqm/month production capability.

Q2:What about quality ensurance?
A: 100% E-test before delivery.

Q3:How to inspect your factory?
A: You can visit us after inquiry and quotation confirmed.

Q4: Do you have sales representative in Europe or America?
A: Kindly we've clients in these area with many years cooperation.

Q5: How about delivery?
A: Normaly 2-4weeks and quick turn available.


Factory Inspection:

25um Substrate FR4 Printed Wiring Board 4 Layer With HAL Lead Free25um Substrate FR4 Printed Wiring Board 4 Layer With HAL Lead Free
​
​
