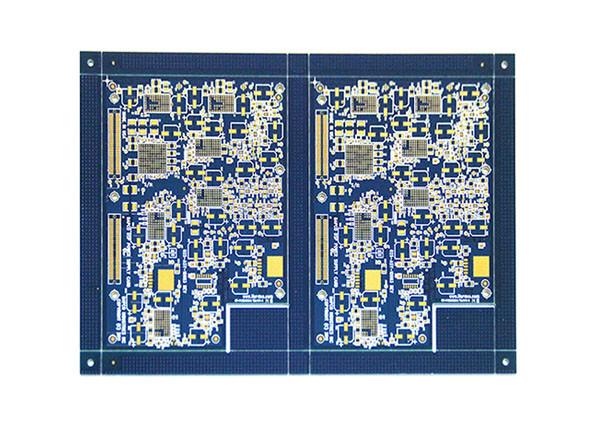

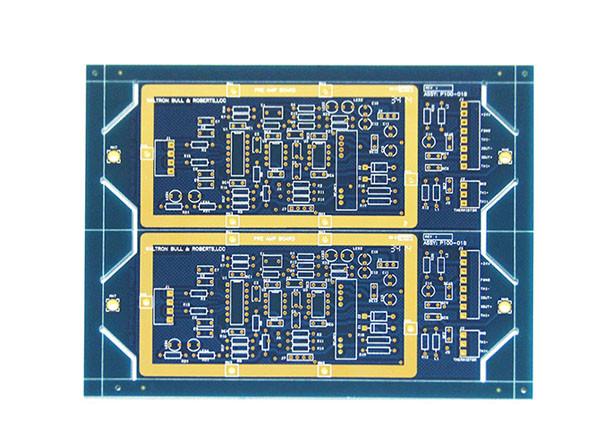

High Tg HDI PCB Board
High Tg HDI PCB Board
High Tg HDI PCB Board
High Tg HDI PCB Board
High Tg HDI PCB Board
High Tg HDI PCB Board
Specifications
Brand Name :
ABIS
Model Number :
HDI-1
Certification :
UL, ISO9001,ISO14001,SGS,RoHS, TS16949
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
60,000 s.q.m/month
Delivery Time :
0.5-4 week
Packaging Details :
Vacuum packing
Material :
FR4 High Tg
Layers :
12
Blind via :
Yes
Copper thick :
Ourter 2OZ
Buried via :
Yes
Via in pad :
Yes
Surface finish :
ENIG 3u''
Usage :
Telecommunication
Description
HDI PCB Technology For Telecommunication Industry


1. 12 layer PCB.

2. FR4 High Tg substrate.

3. Blind via,Buried via,VIP process.

4. Telecommunication application.

5. 0.063mm line width/space.


​

1 Layers 12 layer
2 Material FR4 high tg
3 PCB thick 1.65mm
4 Usage Telecommunication
5 Microvia 0.1mm
6 Min line track 0.063mm
7 Min space 0.063mm
8 Surface finish ENIG 3u''
9 Copper weight 1OZ inner and 2OZ outer
10 Soldermask Blue
11 Blind via Yes
12 Buried via Yes
13 Pads over via Yes
14 blind via resin hole + plating filled Yes
15 Certificates UL,RoHS,ISO9001/14001,SGS,ISO/TS16949

FAQ

Q1:What's HDI?
A: High density Interconnect.

Q2:HDI description?
A: PCB with a higher wiring density per unit area than conventional PCB,They have finer line and space<=0.1mm,smaller via(<=0.15mm) and capture pad<=0.4mm, and higher connection paddensity(>20pads/cm2) than conventional one.

Q3:Quality policy?
A: All HDI board test fine then shipment.

Q4: How about delivery?
A: 20 working days production time for HDI PCB.

Q5: Application area?
A: Telecommunication,Control system,Electronics,Lighting and so on.

Q6: What's the important file requirement?
A: Gerber file besides drill chart/layer.
