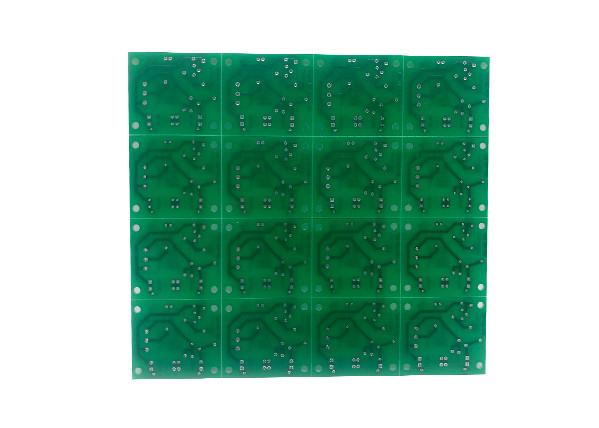

3OZ Copper 1.6mm Thickness Single Sided PCB
3OZ Copper 1.6mm Thickness Single Sided PCB
3OZ Copper 1.6mm Thickness Single Sided PCB
3OZ Copper 1.6mm Thickness Single Sided PCB
Specifications
Brand Name :
ABIS
Model Number :
SS-3
Certification :
UL, ISO9001,ISO14001,SGS,RoHS, TS16949
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
60,000 s.q.m/month
Delivery Time :
0.5-4 week
Packaging Details :
Vacuum packing
Material :
CEM-3, FR4
Copper thickness :
3OZ
Solder mask :
Green
Board thickness :
1.6mm
Surface finish :
HASL
Scoring/V-Cut :
± 5 degrees
Aspect Ratio :
12:1
Warp and Twist :
0.075%
Description
FR4 High Tg Red Solder Mask Single Sided PCB


1. Single layer PCB.

2. Adhere to IPC Class 2 standard.

3.100% Test.

​

1 Layer One
2 Material FR-4,CEM-3
3 Board thickness 0.062''
4 Scoring Angle 30 degrees
5 Min hole size 0.1mm
6 Line width 0.2mm
7 Line space 0.18mm
8 Surface treatment HASL
9 Copper weight 3OZ
10 Solder mask green
11 Outline Route ±0.13mm
12 Warp and Twist 0.075%
13 Aspect Ratio 12:1
14 Scoring/V-Cut ± 5 degrees
15 Profiling Scoring
16 Hole Wall Copper 25um

Advantage:

3OZ Copper 1.6mm Thickness Single Sided PCB

Factory Inspection:

​3OZ Copper 1.6mm Thickness Single Sided PCB

​
​
