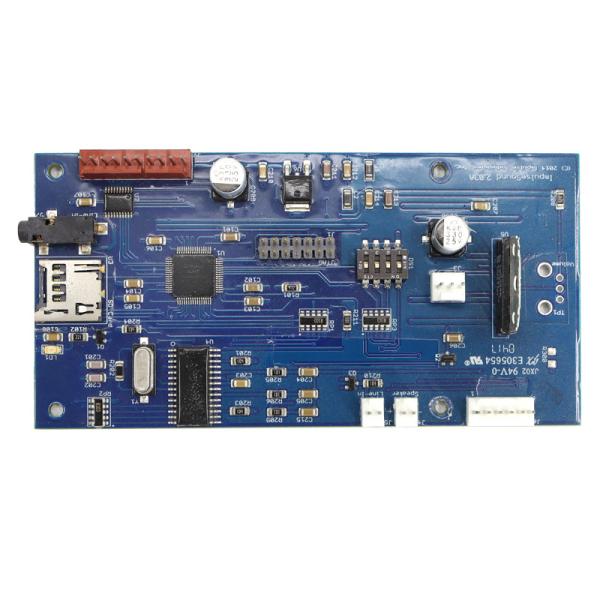

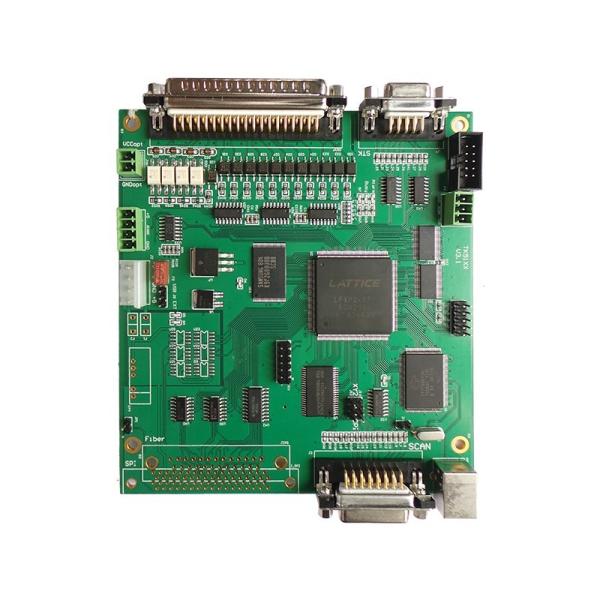

FR4 PCB PCBA Electronic Board Assembly For Medical Devices
FR4 PCB PCBA Electronic Board Assembly For Medical Devices
FR4 PCB PCBA Electronic Board Assembly For Medical Devices
FR4 PCB PCBA Electronic Board Assembly For Medical Devices
Specifications
Brand Name :
Electronic Contract Manufacturer
Model Number :
OEM PCB PCBA Manufacturer
Certification :
ISO9001, ISO14001, ISO13485, IATF16949
Place of Origin :
China
MOQ :
1pcs
Price :
0.5-30USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150000 Pieces per Month
Delivery Time :
1-10 work days
Packaging Details :
PCB: Vacuum Packing/ PCBA: ESD Packing
Material :
FR-4; High TG FR-4; Aluminum; CEM-1; CEM-3; Rogers, etc
PCB layer :
1-48
Max PCB dimensions :
700*460mm
PCB type :
Rigid PCB; Flexible PCB; Rigid-flex PCB
Min Line/Space :
0.075/0.075mm
Services :
Medical PCB PCBA Manufacturer
Component Sourcing :
Yes
MOQ :
NO MOQ (1pcs)
Description

PCB PCBA Electronic Contract Manufacturer for Medical Devices

The medical field requires a vast level of technology with extreme reliability and long term life cycles. The medical sector consists of hospitals, doctor’s offices, dental facilities, special care facilities, ambulance services, and fire and rescue. FASTPCBA is proud to be a medical printed circuit board manufacturer and we take pride in ensuring your medical equipment works flawlessly.

There are so many applications of printed circuit boards in the medical field, and the list is continually growing. Printed circuit boards provide the power for pacemakers, defibrillators, heart monitors, and even medical imaging systems. When lives are on the line, there is no room to have a medical machine breakdown, which is why FASTPCBA is fully committed to producing the most reliable and long-lasting printed circuit boards in the medical industry.

Medical PCB circuit board:

High speed laminates, copper and aluminum substrates, ceramics, and extensive coating options give the medical device manufacturer maximum latitude. Precise lot control is a strength within the FASTPCBA manufacturing operation. High levels of cleanliness are paramount in the industry and are a key focus at FASTPCBA.

Multiple PCB Assembly Services :
* Prototype PCB Assembly
* Low-Volume, High Mix PCB Assembly
* High-Volume PCB Assembly
* Consigned & Partial PCB Assembly
* Full Turnkey PCB Assembly
* Cable and Wire Harness Assembly
* Box Build Assembly Services

FR4 PCB PCBA Electronic Board Assembly For Medical Devices

FR4 PCB PCBA Electronic Board Assembly For Medical Devices

PCB Manufacturing and PCB assembly capabilities:

Article Description Capability
Laminate Materials FR4, high TG FR4, high frequency, alum, FPC
Board Cutting Number of layers 1-48
Min.thickness for inner layers
(Cu thickness are excluded)		 0.003”(0.07mm)
Board Thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Copper Weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Solder Mask Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
Component Sourcing Yes
Tolerance of PCB ±5%
Max Size of Finish Board 700*460mm
MOQ NO MOQ (1pcs)
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA
Sub-assembly Plastic,metal,screen
Min Line/Space 0.075/0.075mm

FR4 PCB PCBA Electronic Board Assembly For Medical Devices

Certification:

Through IS013485: 2016 certification, it not only proves that under the quality assurance system, FASTPCBA can continuously provide high-quality products that meet the needs of medical device customers, and further demonstrates our company's higher requirements for product quality standards. The successful passing of this IS013485: 2016 certification is an endorsement of FASTPCBA product quality and safety regulations aspects.

FR4 PCB PCBA Electronic Board Assembly For Medical Devices

Advanced PCBA Equipment

We have imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.

FR4 PCB PCBA Electronic Board Assembly For Medical Devices

FASTPCBA will continue to maintain the refined management mode, further improve the management mechanism, and strive to create better quality, higher-end products. At the same time, make the company continue to develop in a better direction.

We have a profession sales team available to assist you with PCB Manufacturing & PCB Assembly services,Send your PCB files to get better price now !

Turn your medical project to pcba, contact us
