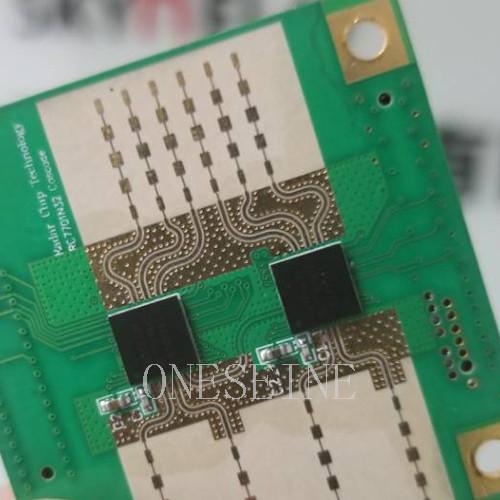

Double Sided Rogers 4003C Automotive Radar PCB Circuit Board With Low z-axis CTE

PCB parameter:

Application: Automotive System

PCB material:Rogers 4003C 12mil

Surface finish:Immersion gold

Name: Automotive System Double Sided Rogers 4003C High Frequency Material PCB Circuit Board

Board size:9*13CM

Solder mask:Green

Typical Applications:

Automotive radar applications

Global positioning satellite antennas

Cellular telecommunications systems - power amplifiers and antennas

Patch antenna for wireless communications

Direct broadcast satellites

RFID Tags

Surface mount RF components

E-Band point to point microwave links

1. Rogers pcb multilayer pcb with high frequency can improvide the products quality ,with high techolonogy treatment improve the life cycle of the products .

2. Immersion gold surface finish make the pcb 's conductive performance enhancements.

3. Multilayer pcb design ,the precision of the pcb improves much more better .

4. Low dielectric : 3 dielectric conductivity much more precision .

Product Description:

Engineered for mission-critical automotive radar systems (77GHz+), our double-sided PCB utilizes Rogers 4003C high-frequency laminate to deliver unmatched signal integrity and thermal reliability. This circuit board is purpose-built for ADAS (Advanced Driver Assistance Systems), collision avoidance, and autonomous driving sensors where millimeter-wave precision is non-negotiable.

Critical Features & Benefits:
✅ Rogers 4003C Core Material: Ultra-low dielectric loss (Df ≈ 0.0027 @ 10GHz) and stable Dk (εr = 3.38) ensure minimal signal distortion at 24GHz, 77GHz & 79GHz radar frequencies.
✅ Ultra-Low Z-Axis CTE (17 ppm/°C): Matches copper CTE to prevent via cracking & delamination under extreme automotive thermal cycling (-40°C to +150°C).
✅ Double-Sided Design: Cost-effective solution for complex RF routing + integrated control circuitry in compact radar modules.
✅ Moisture Resistance: Near-zero water absorption (<0.04%) maintains electrical stability in harsh environments.
✅ Automotive-Grade Reliability: AEC-Q200 compliant design principles for vibration/shock resistance and long-term durability.

Ideal Applications:

77/79GHz ACC (Adaptive Cruise Control) Radar PCBs

Blind Spot Detection (BSD) Sensors

Forward Collision Warning (FCW) Systems

Autonomous Vehicle Perception Modules

High-Resolution SAR (Synthetic Aperture Radar)

Why Choose This Board?

Precision Performance: Minimize phase noise and insertion loss in mmWave circuits.
Zero Field Failures: Eliminate thermal-mechanical PCB failures with engineered CTE matching.
Reduce Integration Risk: Pre-qualified material stackup for automotive radar OEMs & Tier 1 suppliers.
