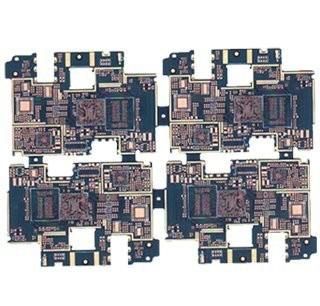

10Layer Impedance BGA Esp32 Multi Layer Pcb Design Bare Board

PCB parameter:

Material: ShengYi FR4 fiberglass board

Number of layers: 10-layer

Board thickness: 3.0mm

Copper thickness: 1oz

Surface treatment process: Immersion gold

Solder mask character color: green and white

Minimum line width/line spacing: 7.09/6.68mil

The smallest hole: 0.5mm

Technical features: with impedance

Precision 10-Layer ESP32 PCBs: China’s Impedance-Controlled BGA Powerhouse for Industrial IoT Dominance

The ESP32 Design Crisis
As industrial IoT devices evolve—demanding Wi-Fi 6/Bluetooth 5.3, dual-core processing, and motor control in sub-50mm form factors—designers hit critical barriers:

Signal integrity collapse in 4-layer boards at >100MHz clocks

BGA escape routing failures with 0.4mm pitch processors

Thermal throttling during 240MHz multicore bursts

EMI nightmares from mixed RF/digital signals

Your Solution: Our 10-layer impedance-controlled PCBs engineered exclusively for ESP32 supremacy:

0.4mm Micro-BGA Breakouts: 100% escape routing success

±5% Impedance Control: Critical for 80MHz QSPI/SDIO interfaces

6oz Copper Power Planes: Sustain 1.5A core spikes

Hatched Ground Planes: 20dB EMI reduction

Why Global IoT Brands Choose Our 10-Layer ESP32 Boards

1. BGA Breakout Mastery
Any-Angle Escape Routing: Supports 324-ball ESP32-S3/WROOM

0.08mm Microvias: Connect layer 1↔3 without stub effects

Via-in-Pad Plating: 100% fill for thermal/electrical stability

2. Mixed-Signal Isolation
Split Ground Planes: Isolate RF core from noisy motor drivers

Guard Traces: Block digital noise in 80MHz QSPI buses

Shielded Cavities: 40dB isolation for 2.4GHz antennas

3. Thermal Supremacy
Copper-Filled Vias: Under BGA (θJA reduced by 60%)

Thermal Pads: Direct-attach heatsinks for 240MHz operation

FR4-Thermal Laminate Hybrids: Dissipate 5W without throttling

Manufacturing Arsenal
AI-Optimized DFM

Neural networks auto-correct impedance violations

24hr design rule validation (IPC-2221 Class 3)

High-Precision Fabrication

LDI Exposure: 25μm trace accuracy

Automated Optical Inspection: 3μm defect detection

Impedance TDR Testing: 100% board validation

Reliability Validation

500 Thermal Cycles (-40°C ↔ 125°C)

72hrs HAST Testing (130°C/85% RH)

20G Vibration per MIL-STD-202

Certified Applications
Industry 4.0 Gateways

10-layer ESP32-S3 + Ethernet PHY

32°C cooler than 6-layer designs

Medical Wearables

38mm × 22mm ECG + BLE boards

Passes IEC 60601-2-47 leakage tests

Robotics Control

4× stepper drivers + Wi-Fi control

0.3μs interrupt latency

China’s Competitive Edge
Speed-to-Market

7-Day Prototypes: With impedance reports

15-Day Volume Runs: 50k+ panels/month

Cost Transformation

40% savings vs. U.S./EU fabs

Zero NRE for design optimization

Technical Partnership

Free ESP32 reference designs

Signal integrity simulations

On-site failure analysis
