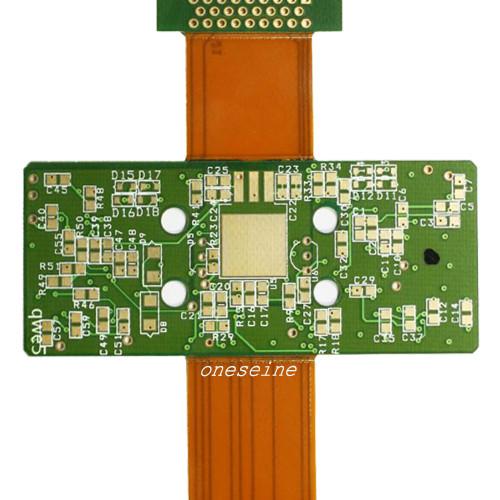

8 Layer Polyimide Rigid Flex PCB Board FR-4 Material
8 Layer Polyimide Rigid Flex PCB Board FR-4 Material
Specifications
Brand Name :
ONESEINE
Model Number :
ONE-102
Certification :
ISO9001,ISO14001
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
USD0.1-1000
Payment Terms :
T/T, Western Union
Supply Ability :
1000000000pcs/mon
Delivery Time :
5-8 working days
Packaging Details :
Vacuun bag
Quality :
100% test
Min. Line Width/Spacing :
0.075mm
Material :
FR-4, Polyimide, PET
Min Hole Size :
Mechanical hole：0.15mm
Min. Hole Size :
0.1mm
Item :
Multilayer rigid/flex PCB prototype
Number Of Layers :
8-Layer
File Formats :
Gerber Files;Pack-N-Place File(XYRS)
Description

Flexible PCB Production Overcoming Challenges with Rigid Flex PCB

Product Introduction

Application field: High level medical equipment

Material: Shengyi A-grade material+FPC flexible board

Number of layers: 6

Plate thickness: 2.0 ± 0.05mm

Minimum aperture: 0.1mm

Minimum line width/line spacing: 0.076mm

Copper thickness: 1OZ each on the inner and outer layers

Solder resistance: blue oil and white letters

What are the challenges faced in flexible PCB production?
Challenges in Flexible PCB Production
Producing Flexible Printed Circuits (FPCBs) involves several challenges that can impact quality, efficiency, and cost. Here are some of the key challenges:
1. Material Selection
Availability: Finding high-quality flexible materials can be difficult.
Compatibility: Different materials may not bond well, affecting overall performance.
2. Design Complexity
Layout Constraints: Designing circuits that fit within flexible constraints can be challenging.
Signal Integrity: Ensuring signal integrity in tight spaces requires careful design consideration.
3. Manufacturing Processes
Etching Precision: Achieving high precision in etching can be more complex than with rigid PCBs.
Layer Alignment: Multi-layer FPCBs need precise alignment during lamination to avoid defects.
4. Testing and Quality Assurance
Reliability Testing: Flexible circuits must undergo rigorous testing to ensure they can withstand bending and flexing.
Inspection Difficulty: Inspecting flexible circuits can be more challenging due to their physical properties.
5. Cost Management
Higher Production Costs: The materials and processes used for FPCBs can lead to higher costs compared to rigid PCBs.
Waste Reduction: Minimizing material waste during production is crucial for cost efficiency.
6. Scalability
Production Volume: Scaling up production while maintaining quality can be difficult, especially for complex designs.
Lead Times: Longer lead times for flexible materials can affect overall project timelines.
7. Environmental Factors
Temperature Sensitivity: FPCBs may be more sensitive to temperature changes during assembly and operation.
Chemical Resistance: Ensuring that materials used are resistant to various chemicals is essential for durability.
