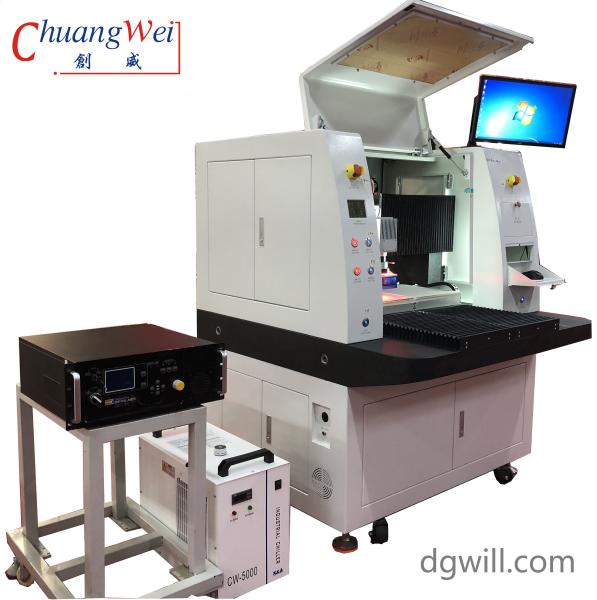

Customizable Laser Depaneling Machine With Marble Material 10W/12W/15W/18W
Customizable Laser Depaneling Machine With Marble Material 10W/12W/15W/18W
Customizable Laser Depaneling Machine With Marble Material 10W/12W/15W/18W
Customizable Laser Depaneling Machine With Marble Material 10W/12W/15W/18W
Customizable Laser Depaneling Machine With Marble Material 10W/12W/15W/18W
Customizable Laser Depaneling Machine With Marble Material 10W/12W/15W/18W
Customizable Laser Depaneling Machine With Marble Material 10W/12W/15W/18W
Customizable Laser Depaneling Machine With Marble Material 10W/12W/15W/18W
Specifications
Brand Name :
ChuangWei
Model Number :
CWLS-330
Certification :
CE Certification
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2000-9999
Payment Terms :
T/T L/C D/P Western Union
Supply Ability :
800 sets per year
Delivery Time :
3 work days
Packaging Details :
plywooden case
Material: :
Marble
PCB :
FR4, FPC
Voltage :
110V/220V
Dimension :
1480mm*1360mm *1412 mm
Weight :
1500kgs
Name :
UV Laser Depaneling
Description

PCB UV Laser Depaneling Machine 15W/17W,PCB Separator

UV Laser Depaneling​ Description:

Neat and smooth edge, no burr or overflow

Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.

Laser wavelength: 355nm

Rated power: 10W/12W/15W/18W@30KHz

Galvanometer working field Per One Process: 40 × 40mm

Power consumption for the hole machine: 2KW

UV Laser Depaneling​ Features

More quick and easy, shorten the delivery time;

High quality ,no distortion,surface clean& uniformity;

Gathering the CNC tech,laser tech,software tech…High accuracy,High speed;

Cutting Application

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;

UV Laser Depaneling​ Specification

Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/17W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 460mmX460mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm

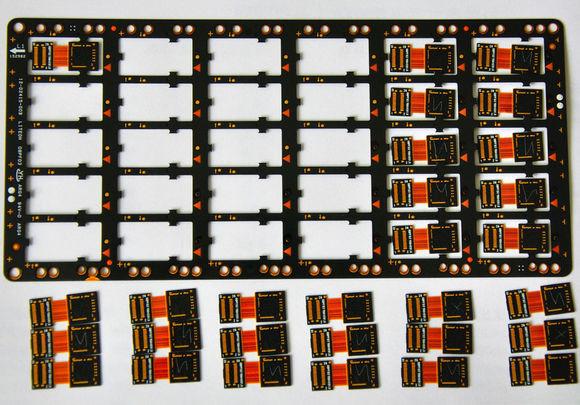

UV Laser Depaneling Samples

Customizable Laser Depaneling Machine With Marble Material 10W/12W/15W/18W Customizable Laser Depaneling Machine With Marble Material 10W/12W/15W/18W

UV Laser Depaneling​ CE approval
Customizable Laser Depaneling Machine With Marble Material 10W/12W/15W/18W
More information welcome to contact us:
Email: sales@dgwill.com
Whatsapp/Wechat:+86 15273473462
