Specifications
Brand Name :
ChuangWei
Model Number :
CW-F01
Certification :
CE Certification
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2000-9999
Payment Terms :
T/T L/C D/P Western Union
Supply Ability :
300 sets per month
Delivery Time :
5-7 days after payment
Packaging Details :
plywooden case
Work area :
320*320mm
Table :
2
Warranty :
one year
PCB thickness :
0.5-3.5mm
Spindle speed :
60000RPM
Description :
PCB Router Separator
Description

Inline PCB Router Machine 0.5mm Thickness CNC Spindle Printed Circuit Board 60000rpm

PCB Router Machine 0.5mm Thickness CNC Printed Circuit Board Inline

Features:

1.Splitting machine can be automatically docked to the production line, saving labor costs.
2.Mark point automatic alignment, intelligent correction error.
3. Broken knife and sliding knife monitoring, to ensure the normal use of tools.
4. Automatic tool change, no need for manual tool change.
5.Followed by dust removal, dust removal effect is good.
Speicification:
Specification
X Y Z Stroke:450*600*60mm Into the board direction: left into the right out
Depanel thickness:0-5mm Cutting range:330mm*330mm
Cutting speed:0~100mm/s adjustable Machine Size :L1800*D1100*H1600
Cutting shapes: straight, L-shaped, square, round, curved Machine Weight :About 900KG
Spindle motor: German high-speed motor Host Control: Advantech Industrial Computer
Static electricity elimination: SMC Ion Generator Servo system: Fuji servo
Position accuracy:±0.01mm Input Power :AC220V/50Hz
Screws/Guides:HIWIN/THK Air consumption:10N1/Min
Track width adjustment: automatic track adjustment Inlet plate thickness :0.6mm-5mm

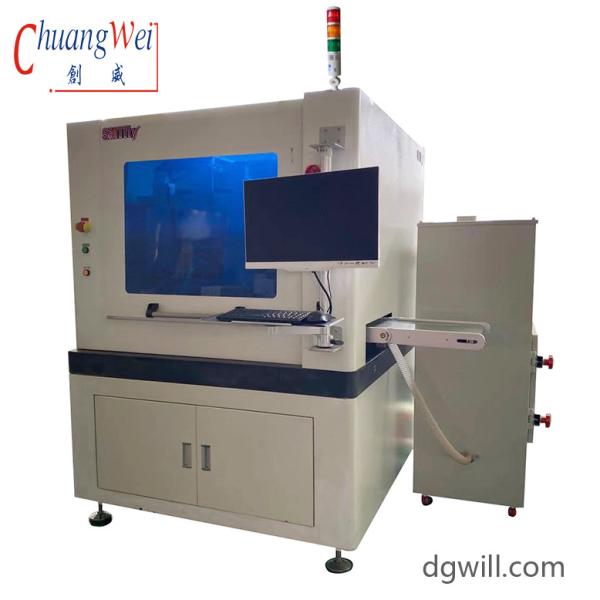

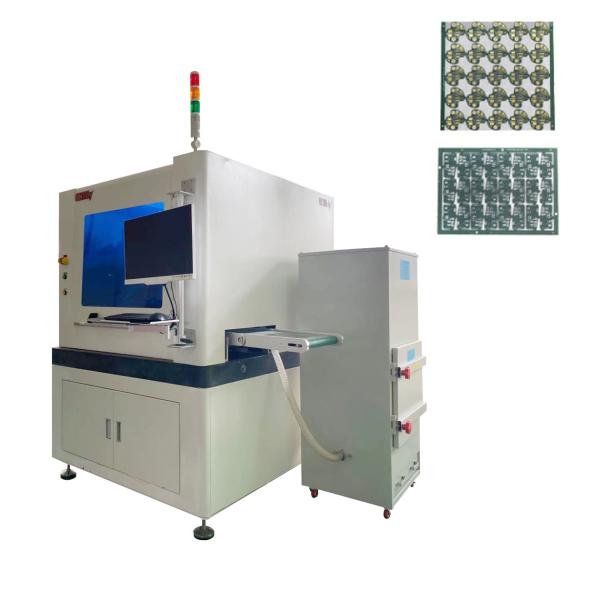

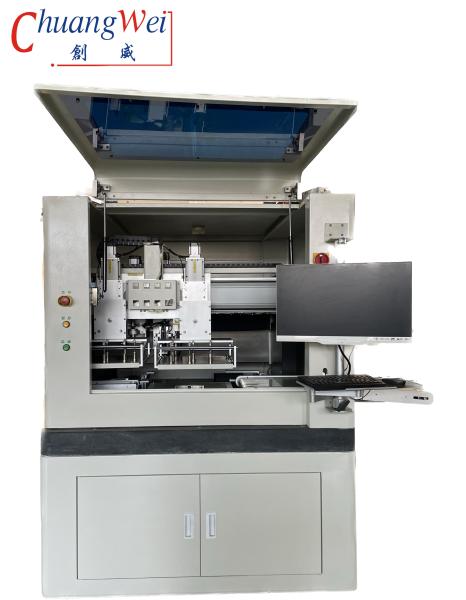

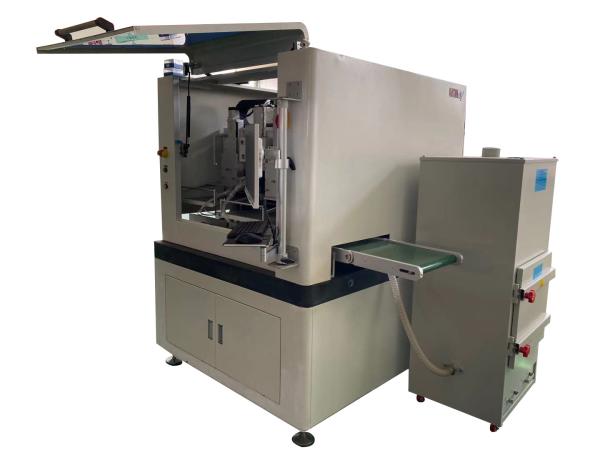

Inline PCB Router Detailed Photoes:

2 Table PCB Router Machine Intelligent Saving Manpower AC220V/50Hz

PCB Depanel Router Fixture:

2 Table PCB Router Machine Intelligent Saving Manpower AC220V/50Hz
