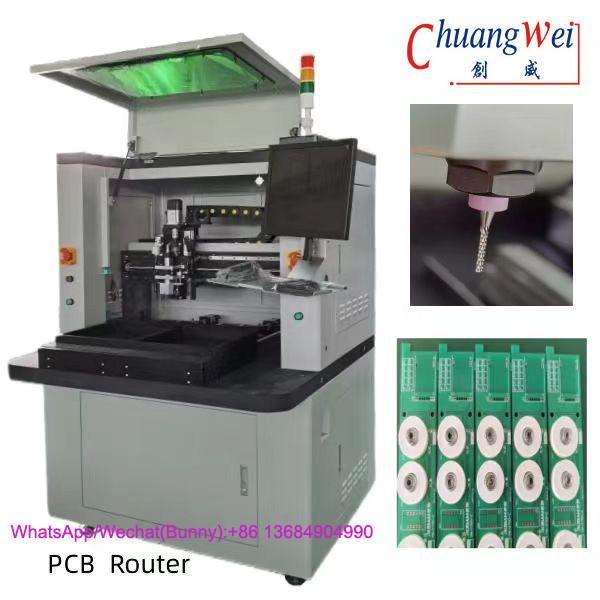

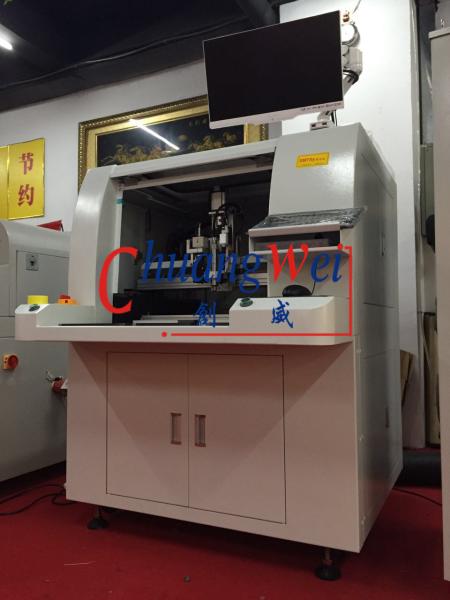

4.2KW PCB Depaneling Machine Automated Robot With Vacuum Cleaner
4.2KW PCB Depaneling Machine Automated Robot With Vacuum Cleaner
4.2KW PCB Depaneling Machine Automated Robot With Vacuum Cleaner
4.2KW PCB Depaneling Machine Automated Robot With Vacuum Cleaner
4.2KW PCB Depaneling Machine Automated Robot With Vacuum Cleaner
4.2KW PCB Depaneling Machine Automated Robot With Vacuum Cleaner
Specifications
Brand Name :
ChuangWei
Model Number :

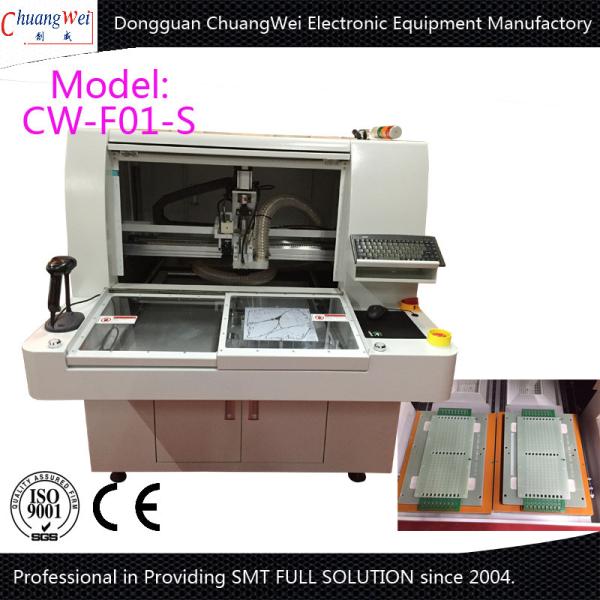

CW-F01-S
Certification :
CE Certification
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2000-9999
Payment Terms :
T/T L/C D/P Western Union
Supply Ability :
1000 set/ year
Delivery Time :
5 work days
Packaging Details :
plywooden case
Warranty :
1 year
Vacuum cleaner :
Yes
Routing bit checking :
Yes
Power :
220V, 4.2KW
Weight :
650kgs
Name :
PCB Depanelizer
Description

Inline or Offline PCB Router Machine PCB Depanelizer Automated Robot

Manufacturer: ChuangWei

Condition: NEW.

It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.

Included:

  • (1) Router Machine
  • (1) Power Transformer
  • (1) Vacuum cleaner
  • (1) Dust collector
  • (1) User's Guide
  • (2) Keys

Specifications:

  • Manufacturer: ChuangWei
  • Model: CW-F01-S
  • Deigned for depaneling Printed Circuit Boards and PCB panels
  • For high volume and low mix production runs
  • PCB sizes: 50x50mm to 650*500mm, 3mm thick max.
  • Stress-free breakout and safe board handling without compromising panels
  • Dust collection built-in
  • Panels enter on conveyor, Servo-driven router under board runs automatically
  • Gripping fingers remove routed boards to a pallet on an outfeed conveyor
  • Controlled by Windows PC in machine's base
  • May be programmed to carry out prehandlings and checks using tools, manipulators, and Vision system
  • Pick & Place gantry travel: X (manually adjustable), Y 725mm, Z 75mm (pneumatic), w (manually adjustable)
  • Router speed: 1500mm/s slew, 75mm/s routing
  • Automatic broken bit detection
  • SMEMA transfer protocol
  • Camera aided teaching system
  • Tool life and vacuum bag tracking

Packaging photos:

4.2KW PCB Depaneling Machine Automated Robot With Vacuum Cleaner 4.2KW PCB Depaneling Machine Automated Robot With Vacuum Cleaner
