Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station
Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station
Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station
Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station
Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station
Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station
Specifications
Brand Name :
Chuangwei
Model Number :
CW-2A2P
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
USD 2000-9999
Supply Ability :
10Sets
Delivery Time :
After payment 7-15 working days
Packaging Details :
plywood case
Payment Terms :
T/T L/C D/P Western Union
Welding Head Meterial :
Molybdenum Metal,Titanium Metal
Welding Head Flatness :
±0.02mm
Work Stage :
Left and Right Automatic Push and Pull
Pin Distance Range :
＞0.2mm
Way of Discharge :
Artificial pick and Place
Welding Time :
1-99.9S
Heating Rate :
250℃/s
Positioning Fixture :
2
Color :
White
Description

Solder-Hot Bar Bonder for FPC FFC HSC,CW-2A2B Specification:

1. Customized based on the connector,

2. Double jig welding,

3. Double- desk working mode,

4. Can achieve ultra-fine pitch welding,

5.Applicable to welding the cable and connection of communicating machine.

 NO. Subject Parameters
1 Machine size L850×W650×H1320mm
2 Working size Max150x150mm
3 weight 98KG
4 working air pressure 0.5~0.80 Mpa
5 power supply AC220V±10％50HZ.2000W
6 Lifting temperature setting Five section
7 work environment 10~60℃,40％~95％
Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station 8 Welding pressure 4~50N
9 Welding pressure error ±1N
10 Temperature setting RT∽500℃,±2℃
11 Heating rate 250℃/s
12 Welding time 1-99.9S
13 welding precision Pitch 0.2mm
14 Welding head size(Mmetal) Max 50*3mm
15 Welding head size(T metal) Max 100*3mm
16 Welding head flatness ±0.02mm
17 Pin distance range ＞0.2mm
18 Alignment mode Artificial alignment
19 Positioning fixture 2
20 Way of discharge Artificial pick and place
21 Start mode Pressed by hands
22 Heatingmethod Pulse heating, the rise timeis 1 ~ 2S
23 Work Stage Left and right automatic push and pull
24 Platform control Precision motor control, error <0.02mm

SMT Soldering-Hot Bar Bonding for FPC FFC HSC,CW-2A2B Function Module:

【Double welding head design】

Applicable to double-sided welding products

【Left and right platform design】

In the production, It weld with left and right cycle, saving time and improving efficiency

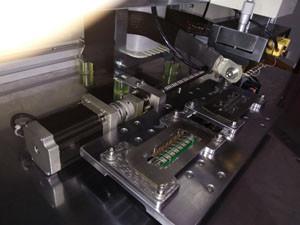

【The upper and lower welding heads are driven by the motor】

Up and down position is precise, the same accuracy when it repeats

【The left and right platform is driven by motor】

Left and right position is precise, the same accuracy when it repeats

【Touch screen programming】

Easy to understand and program, we can enter data location directly

 Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station
Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station
Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station
Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station

Solder-Hot Bar Bonder for FPC FFC HSC,CW-2A2B Related Products Catalogue :

Desktop terminal welding machineCWPP-5A Double-sided welding automatic tin feed machine CWPP-D5A Terminal testing and shell filling machine (terminal welding supporting equipment)
Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station Customized PCB Soldering Machine 150*150mm Working Size 250℃/S With Double Working Station

Solder-Hot Bar Bonder for FPC FFC HSC,CW-2A2B Simple Introduction:

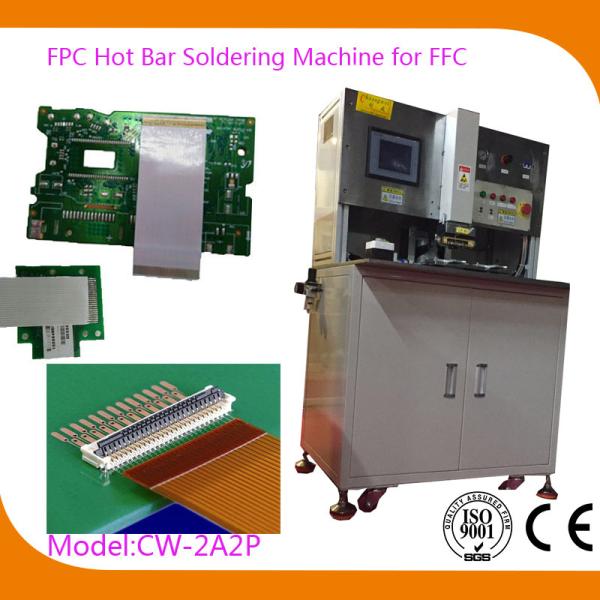

This device is designed for double - deck working mode of double welding head. The equipment adopts high density metal material, so the lifting temperature is fast and the service life is special. The equipment operation is easy to understand. It is special in welding connector and wire with single side and double sides.

The Video Process of Fpc Hot Bar Bonding to USB & After USB Hotbar Soldering
