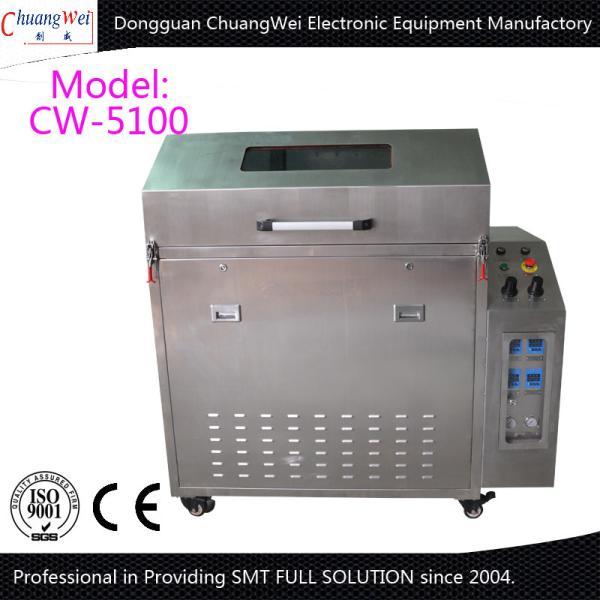

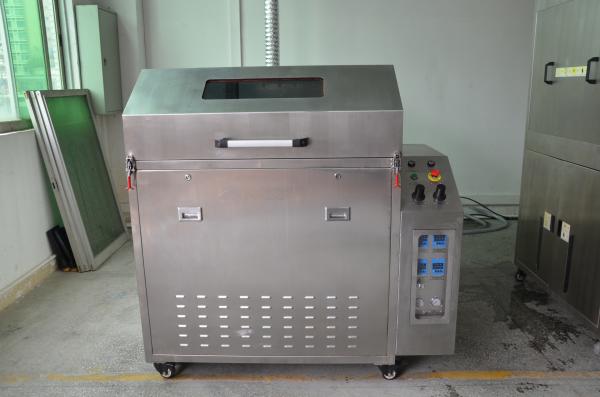

Safe Smt Pallet Washer Machines Electric Pneumatic Control Cleaning Machine
Safe Smt Pallet Washer Machines Electric Pneumatic Control Cleaning Machine
Safe Smt Pallet Washer Machines Electric Pneumatic Control Cleaning Machine
Safe Smt Pallet Washer Machines Electric Pneumatic Control Cleaning Machine
Specifications
Brand Name :
ChuangWei
Model Number :
CW-5100
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2000-9999
Supply Ability :
100 sets/month
Delivery Time :
10 days
Packaging Details :
plywood case
Payment Terms :
T/T L/C D/P Western Union
Max Pallet Size :
￠1000*H460(mm)
Liquid tank :
80L
Filter system :
3 levels
Name :
Pallet Cleaning Machine
Description

SMT Cleaning Equipment Pallet Pneumatic Control Cleaning Machine 100 Safe

Machine description:

CW-5100 cleaner is used to clean Grease, Flux, Rosin on reflow oven cooler and filer, jig, tray. It is also used to clean parts of hardware, print and mechanics industries.

Machine Feature:

1. Pneumatic control, no electric power requirement, 100% clean safe.
2. SUS 304 machine wash room and frame, resit Acid and Alkali corrosion, 10 years life time.
3. One-button mode of operation, high pressure clean + high pressure rinse + compressed air dry, all process complete in one time automatically.
4. Closed-loop clean and rinse, clean solvent and rinse solvent is filtered in the machine.
5. Solvent recycled to use and cost down.
6. The fixtures are clean and dry after cleaning, standby and ready for use.
7. Standard equipped with auto fill-in and drain-out function.
8. Labor cost save, clean efficiency raise

Machine Specification:

Item Parameter
Max fixture size ￠1000*H460(mm)
Spray system All round rotate spray clean and rinse
Filter system 50/20/1um filter(3 levels)
Clean tank capacity 80L
Rinse tank capacity 80L
Spray pressure 2-4kg
Air supply 0.5-0.7Mpa
Machine weight 480kgs
Machine size 2100mm(L) x 1550mm(W) x 1600mm(H)

Cleaning Basket:

Safe Smt Pallet Washer Machines Electric Pneumatic Control Cleaning Machine

Control System:

Safe Smt Pallet Washer Machines Electric Pneumatic Control Cleaning Machine
