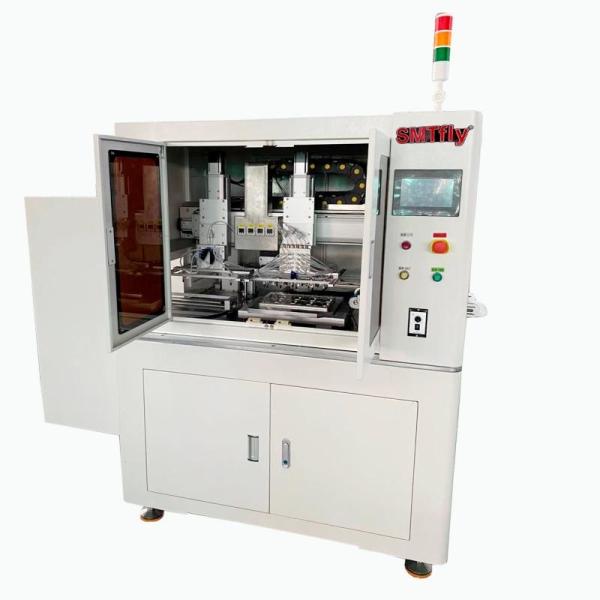

Fully Automatic Pcb V Cut Machine Inline 0.8mpa PLC Controlled
Fully Automatic Pcb V Cut Machine Inline 0.8mpa PLC Controlled
Fully Automatic Pcb V Cut Machine Inline 0.8mpa PLC Controlled
Fully Automatic Pcb V Cut Machine Inline 0.8mpa PLC Controlled
Fully Automatic Pcb V Cut Machine Inline 0.8mpa PLC Controlled
Fully Automatic Pcb V Cut Machine Inline 0.8mpa PLC Controlled
Specifications
Brand Name :
ChuangWei
Model Number :
USD 2000-9999
Certification :
CE Certification
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2000-9999
Supply Ability :
USD 2000-9999
Delivery Time :
USD 2000-9999
Packaging Details :
plywooden case
Payment Terms :
T/T L/C D/P Western Union
PCB width :
300mm(could be customized)
Driven mode :
Stepping / Servo motor(optional)
V-cut angel :
>40°
Cutting speed :
300-500/s
Blade material :
High speed steel
Air pressure :
0.5-0.8Mpa
Voltage :
220/110V
Packaging weight :
300kgs
Description
Fully Automatic Inline V-Cut Pcb Separator Machine​ Description:
  • This is a double direction depaneling with horizontal and vertical boards;
  • To realize inline depaneling for shape panels at one time;
  • High automation, connecting PCB loader and unloader, can be achieved without humans, save labor;
  • Touch screen operation, enabling quick product changing, PLC data storage capacity is 100 programs;
  • One direction of depaneling is also workable, one could set horizontal and vertical depaneling by touch screen, more intelligent;
  • Dust cleaner is optional.
Inline PCB Depaneling Machine Fully Automatic V Cut Depaneling Machine Parameter:
Blade dimension

Linear Blade: 356×43.5×6mm
PCB width 300mm(could be customized)
Driven mode Stepping / Servo motor(optional)
V-cut angel >40°
Cutting speed 300-500/s
Blade material High-speed steel
Air pressure 0.5-0.8Mpa
Voltage 220/110V
Dimension 1250(1560)mm×800mm×1295mm
Packaging weight 300kgs
Inline PCB Depaneling Machine Fully Automatic V Cut Depaneling Machine​ Features:
※ Workable for "#" shape depaneling.
※ Blade set can be quickly changed.
※ Could connect PCB loader and PCB unloader to realize fully automated production to
save labor.
※ Unique new blade design, lifetime should be increased by 1.5-2 times.
※ Safety: Sensor is used to ensure safe production.
※ Simple operation, workers can operate it after training.
※ Horizontal and vertical depaneling is optional.
More information or the machine's working video, welcome to contact us:
Email: sales@dgwill.com
Wechat/Whatsapp(Donna): +86 15273473462
