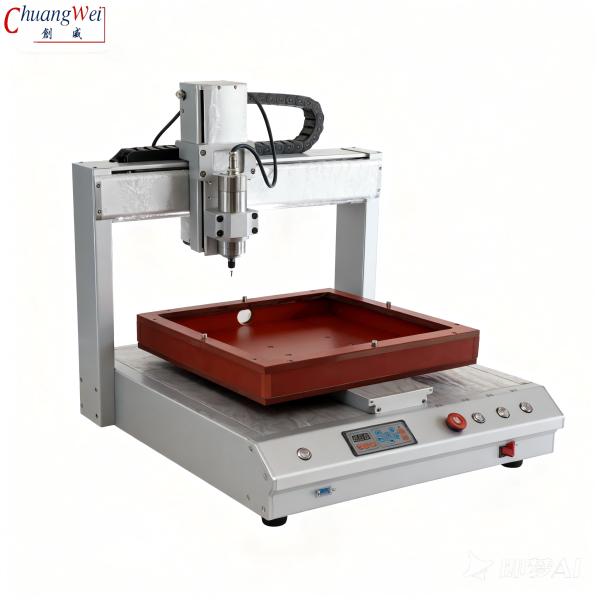

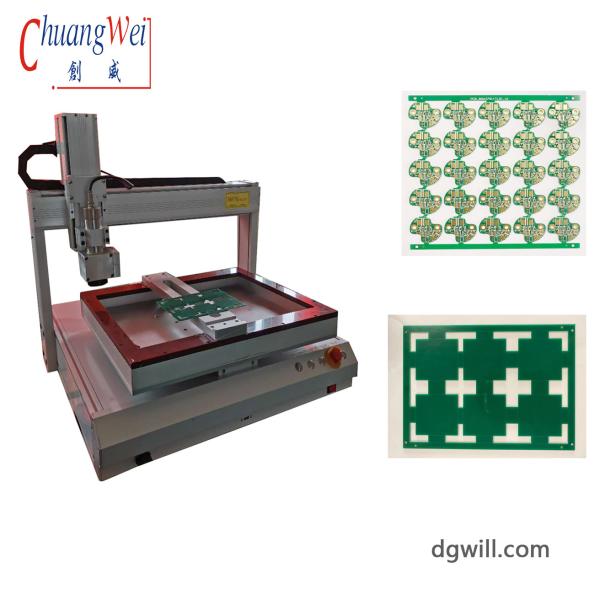

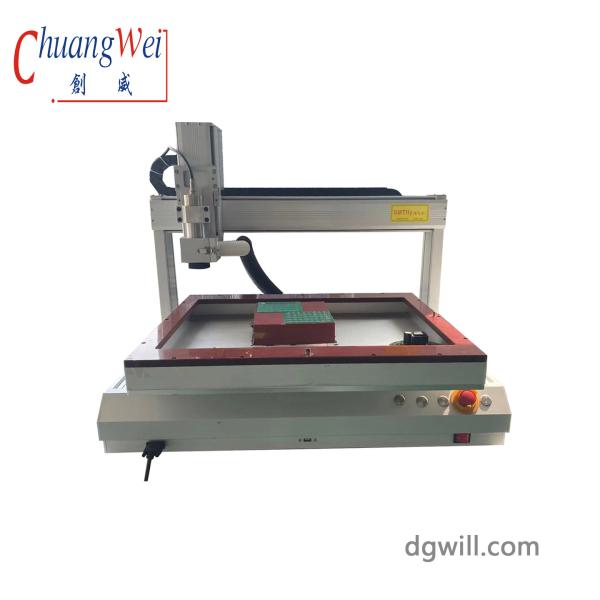

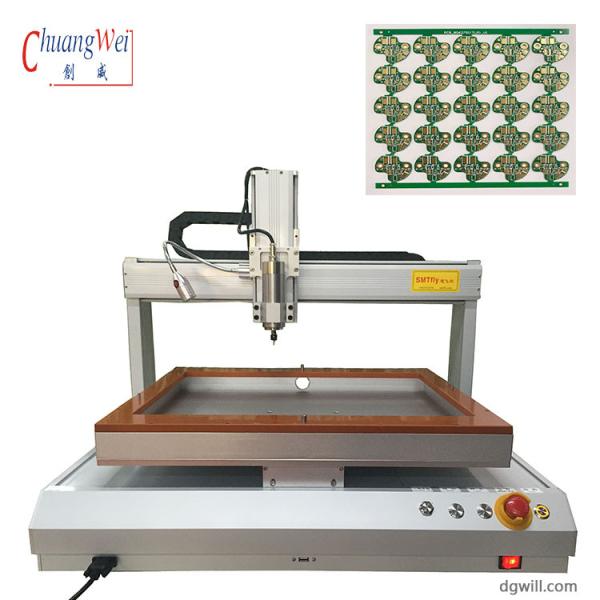

Desktop PCB Router Machine With 650x450mm Working Area 0.5KW Spindle Motor And ±0.02mm Repeatability
Desktop PCB Router Machine With 650x450mm Working Area 0.5KW Spindle Motor And ±0.02mm Repeatability
Desktop PCB Router Machine With 650x450mm Working Area 0.5KW Spindle Motor And ±0.02mm Repeatability
Desktop PCB Router Machine With 650x450mm Working Area 0.5KW Spindle Motor And ±0.02mm Repeatability
Desktop PCB Router Machine With 650x450mm Working Area 0.5KW Spindle Motor And ±0.02mm Repeatability
Desktop PCB Router Machine With 650x450mm Working Area 0.5KW Spindle Motor And ±0.02mm Repeatability
Desktop PCB Router Machine With 650x450mm Working Area 0.5KW Spindle Motor And ±0.02mm Repeatability
Desktop PCB Router Machine With 650x450mm Working Area 0.5KW Spindle Motor And ±0.02mm Repeatability
Specifications
Brand Name :
SMTfly
Model Number :
SMTfly-3A
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
100 Sets/Month
Delivery Time :
7 days
Packaging Details :
plywood case
Payment Terms :
T/T,Western Union,D/P,L/C,D/A
Name :
Moving Router Blade PCB Separator Machine PCB Separator PCB Depanelize
Color :
White
Program :
Teaching Box
PCB Max Size :
650*450mm(Could be customized made)
PCB Thickness :
0.6-3.5mm
Spindle :
China
Spindle speed :
50000r/s
Drive system repeatability :
±0.02mm
Cutting speed Resolution :
±0.01mm
Repeatability :
<0.1mm
PCB positioning fixture load/unload :
Manual
Working area :
650*450mm
Description

PCB Router PCB Depanelizer Desktop Easy Programming by Teaching Pedal

PCB Router Machine Desktop 50000r/S Cnc Milling 0.6-3.5mm Thickness

Specification:

Motor drive system

Servo/stepper motor

Spindle speed

50000r/s

Cutting performance

500mm/s

Drive system repeatability

±0.02mm

Cutting speed Resolution

±0.01mm

Configuration

X, Y, Z 3 axis Max 100mm/S(depends on PCB material and cutting quality)

Repeatability

<0.1mm

PCB positioning fixture load/unload

 Manual

PCB thickness

 0.6-3.5mm

Working area

 650*450mm

Spindle motor power

0.5KW

Spindle motor speed

50000r/m

Spindle motor cooling

Air-cooled

Machine dimension

980*580*615mm

Weight

135KG

Security settings

emergency stop switch

Features:

●Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s
●Cut continuously without interruption during loading and unloading
●High-quality shaft system allows the system to quickly ramp,
reduce the period, Improve productivity, and maintain high
precision
●Use high-quality hardware to ensure high rigidity and high
performance All screws are protected from dust and dirt from entering
to improve the life and performance of the shaft
●Avoid tin cracks and component damage caused by manual folding;

●The operation is simple When changing the model, you only need to

adjust the cutting program and change the fixture to start production;

Routing Bit:
