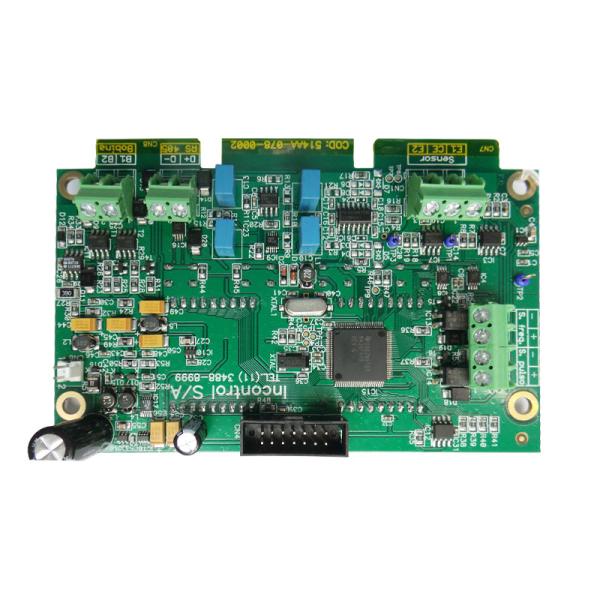

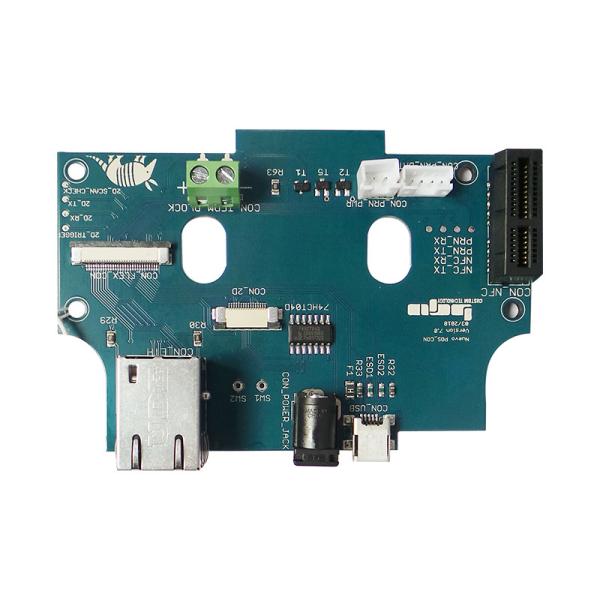

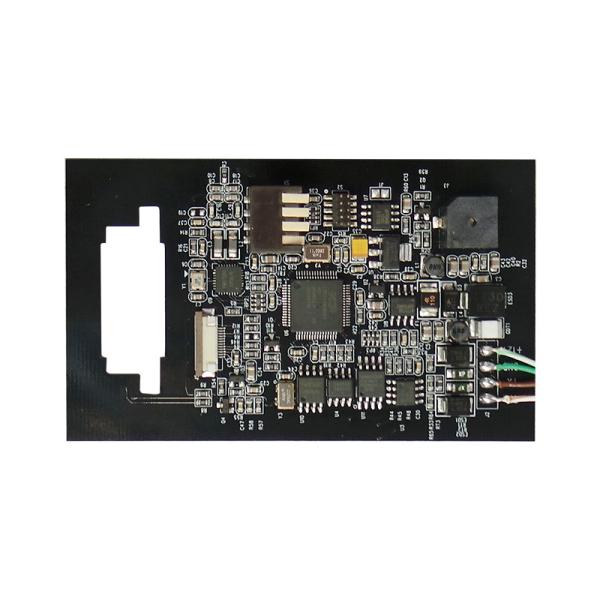

High Frequency Pure Sine Wave PCB Circuit Board Assembly
High Frequency Pure Sine Wave PCB Circuit Board Assembly
High Frequency Pure Sine Wave PCB Circuit Board Assembly
High Frequency Pure Sine Wave PCB Circuit Board Assembly
High Frequency Pure Sine Wave PCB Circuit Board Assembly
High Frequency Pure Sine Wave PCB Circuit Board Assembly
Specifications
Brand Name :
FASTPCBA
Model Number :
One-Stop PCB Assembly
Certification :
IATF16949, ISO13485, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150000 Pieces per Month
Delivery Time :
5
Packaging Details :
PCB: Vacuum Packing/ PCBA: ESD Packing
Number of layers :
1-48
Material :
FR4, High TG FR4, High Frequency, Alum, FPC
Min space :
0.075mm
Min line :
0.075mm
Function Test :
100% Functional test
PCBA Testing :
X-ray,AOI Test,Functional test
Description

High Frequency Electronic Pcb Assembly Pcba Pure Sine Wave Inverter Pcb Circuit Board Supplier

PCB Capability

Article Description Capability
Material Laminate materials FR4, High TG FR4, High Frequency, Alum, FPC...
Board Cutting Number of layers 1-48
Min.thickness for inner layers
(Cu thickness are excluded)		 0.003”(0.07mm)
Board Thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Copper Weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Solder Mask Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
Max Size of Finish Board 700*460mm
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA

High Frequency Pure Sine Wave PCB Circuit Board Assembly

Delivery Time for PCBA

Order Conditions Standard Delivery Date The fastest Delivery Date
Prototype (<20 pcs) 2 days 8 hours
Small Volum (20-100 pcs) 3 days 12 hours
Medium Volum(100-1000 pcs) 6 days 24 hours
Mass productions (>1000 pcs) Depends on BOM Depends on BOM

With competitive pcb assembly cost, high quality pcb manufacturing capacibility, FASTPCBA wins continous praise from customers like automotive industry,medical industry, smart home industry, industry control, military pcba, aerospace pcba.

High Frequency Pure Sine Wave PCB Circuit Board Assembly
