Innomed Cardio-Aid 200-B Defibrillator Power Supply Board

14320150-1 11430 M50769091 ver L

► Introduction of Innomed Cardio-Aid 200-B Defibrillator Power Supply Board 14320150-1 11430 M50769091 ver L

The power supply is a power factor regulator and DC/DC converter in a single unit. It is designed to accept a 100-240 VAC input voltage and provide up to 60 W of constant output power and up to 200 W of peak power.

The alternating current (AC) from the input is fed through an input filter network to the AC/DC converter, which functions as a power factor regulator and rectifier circuit in a single unit.

The converted DC voltage feeds the isolated DC/DC converter, which provides a regulated output voltage of 19 VDC, which is used to power the Cardio-Aid® multi-card electronic system.

The power supply is protected against overloads by two high-capacity fuses installed in the AC input connector on the rear of the Cardio-Aid®.

The converter output is electronically protected against overloads and overheating. In the event of an overvoltage, the unit will automatically shut down. The unit will resume normal operation after disconnecting the main power from the AC input for a few seconds.

► Specification of Innomed Cardio-Aid 200-B Defibrillator Power Supply Board 14320150-1 11430 M50769091 ver L

► Replacing the Power supply board

1. The power supply board is located on the rear of the Cardio-Aid® chassis.

2. Remove the battery following the "Battery Replacement" procedure. IMPORTANT! Removing the battery invalidates the internal battery capacity system and must be reset. See "Verification and Testing."

3. Place the Cardio-Aid® chassis in the "Closed Service Position."

4. Remove the six Torx screws (3x6) from the power supply board.

5. Carefully remove the power supply. Apply slight force, as the power supply board is directly connected to the DeFi board via the six-pin connector located on its rear.

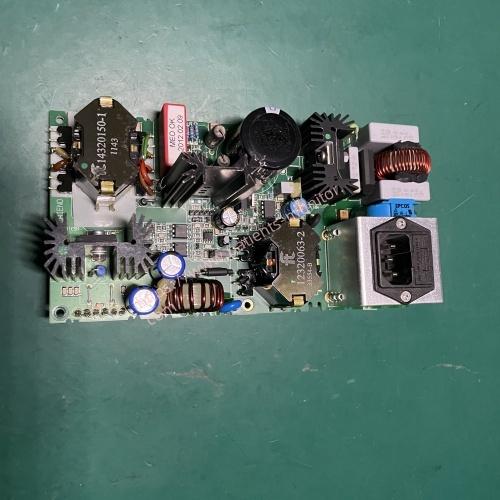

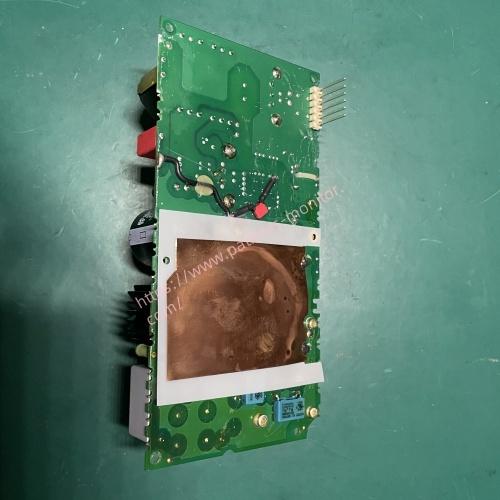

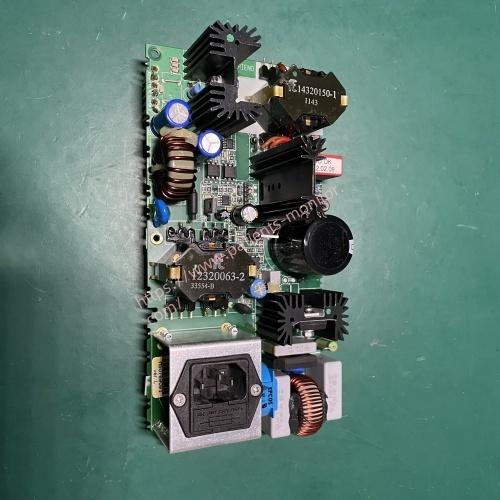

► Photo of Innomed Cardio-Aid 200-B Defibrillator Power Supply Board 14320150-1 11430 M50769091 ver L
