Toshiba PSI-30BX Phased Array Transducer a used medical ultrasound device with a milky-white exterior and Real-Time Grating Lobe Suppression

Core Components:

• Transducer Array: 128-element sectorial crystal array (Frequency: 2~10 MHz), fill factor >85%, supports electronic beam deflection of ±70°.
• Host System: Olympus OmniScan X3 platform, supports Total Focusing Method (TFM) and real-time grating lobe suppression.

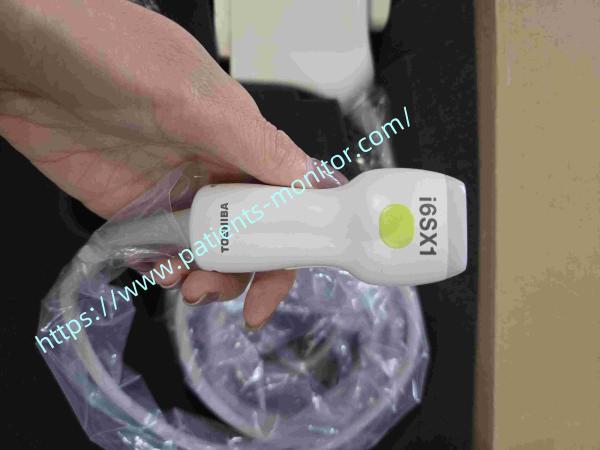

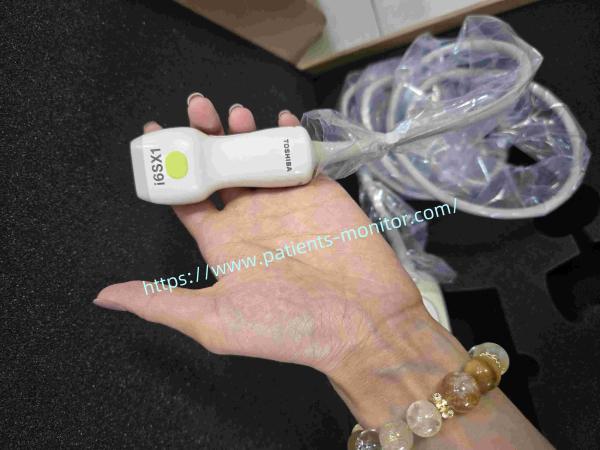

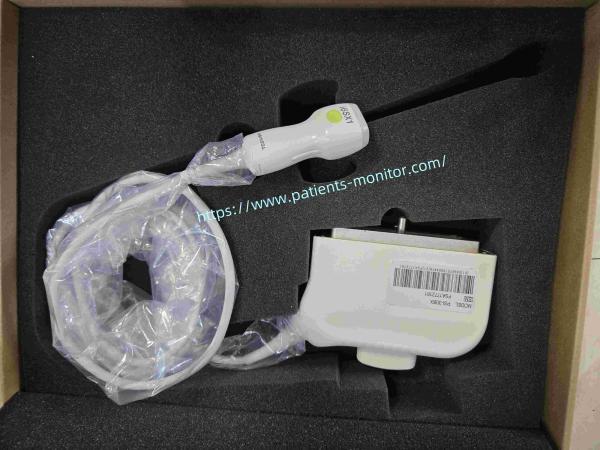

• Toshiba PSI-30BX Phased Array Transducer a used medical ultrasound device with a milky-white exterior. The head of the device features adjustment knobs and is marked with the text "i6sx1," while the tail end has a connector plug. The overall length of the medical device is approximately 1.5 meters.

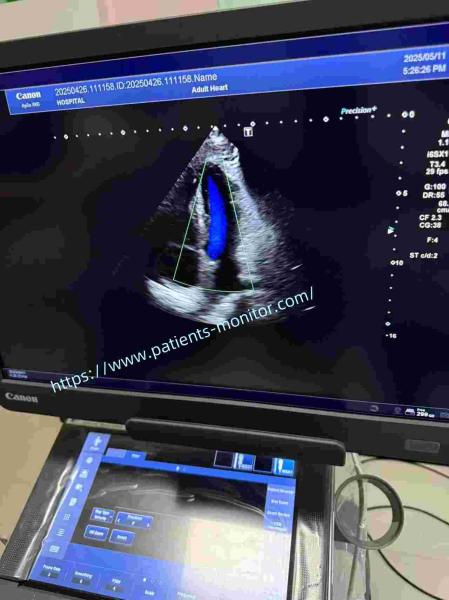

• It is equipped with a curved probe head designed for general imaging of mid-to-deep anatomical structures. The small surface area of the probe allows for easy scanning of the entire heart through the intercostal spaces, producing clear two-dimensional cardiac images. The probe features an ergonomic design with a concave grip for comfortable handling.
• This transducer is primarily used for cardiac examinations (e.g., transthoracic echocardiography, TTE). It is operated by hand and requires the use of ultrasound gel. The device is mainly intended for adult patients.
• Core Functions:
• This ultrasound probe is designed to transmit and receive reflected ultrasonic waves from the human body. It is specifically used for adult cardiac ultrasound examinations.
• Cardiac ultrasound examination is a non-invasive diagnostic method that utilizes high-frequency sound waves to penetrate human tissues. These waves are attenuated and reflected back to the device, providing structural information about internal organs.
• Usage Instructions:
• Follow medical instructions and position the patient in a supine position on the examination table. The patient may need to adjust their posture as directed by the physician to facilitate imaging of different areas.

• Safety Precautions
• 1. It's must use the correct electrical outlet to avoid damage or malfunction.
• 2. Try to avoid long-term storage, especially in high temperature and high humidity environments.
• 3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.
• 4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.
• 5.Before use, ensure the surrounding environment is free from water accumulation, flammable gases, or risks of metal contact to prevent electric shock that could trigger fire or explosion.
• 6.Ensure the host power is OFF before connecting the probe to prevent transient current damage to the crystal array.
