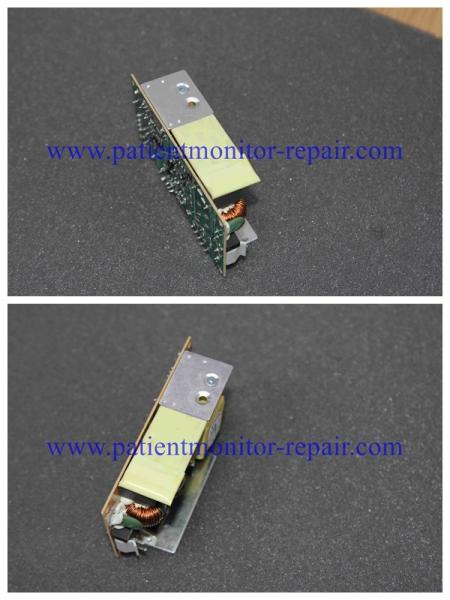

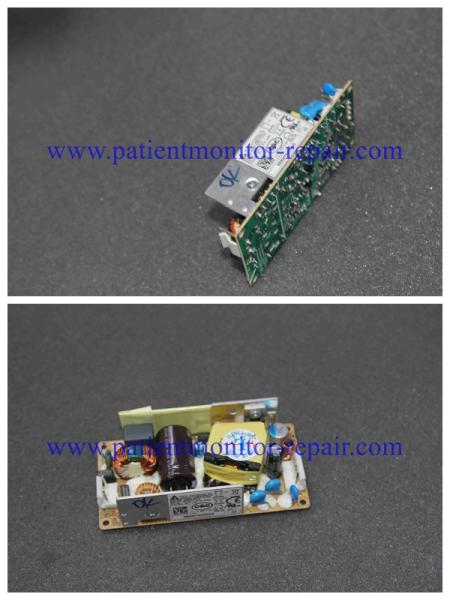

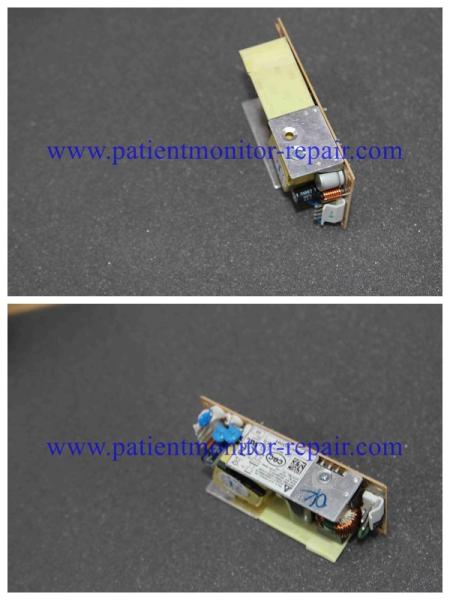

Mindray iPM8 Power Supply – Features & Specifications

General Information

• Device Compatibility: Specially designed for the Mindray iPM8 patient monitor
• Function: Converts AC input power to stable DC voltages required for internal electronics and monitoring modules

Key Features

• Wide Input Voltage Range:

  • Supports 100–240V AC, 50/60Hz
  • Compatible with global hospital power standards

• Multiple Output Voltages:

  • Provides various DC outputs (e.g., +12V, +5V, +3.3V) to power different components such as the mainboard, display, and modules

• High Efficiency:

  • Designed with switch-mode power supply (SMPS) technology for low heat and energy efficiency

• Overload & Short Circuit Protection:

  • Built-in safety features to protect monitor and components from power surges or failure

• Battery Charging Support:

  • Enables charging of internal lithium-ion backup battery
  • Seamless switching between AC power and battery during outages

• Low Noise Operation:

  • Minimal electromagnetic interference (EMI), ensuring compatibility with sensitive medical electronics

• Compact and Modular Design:

  • Easily replaceable; mounted within the iPM8's internal chassis

Technical Specifications (Typical)

• Input:

  • Voltage: 100–240V AC
  • Frequency: 50/60Hz
  • Current: ~1.5A max

• Output:

  • +12V DC (main system)
  • +5V DC (logic circuits)
  • +3.3V DC (low-power modules)
  • Battery charging lines

• Power Rating:

  • Typically around 60–90W total output capacity

Environmental Specifications

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 10% to 90% non-condensing

Safety & Compliance

• Certifications:
  • CE, RoHS, and IEC 60601-1 compliant for medical-grade safety
• Isolation:
  • Medical-grade isolation between AC input and DC output

Use Case

• Ensures reliable, uninterrupted operation of the iPM8 monitor in ICUs, ORs, emergency rooms, and ambulatory care settings

Mindray iPM8 Power Supply – Applications

1. Hospital Patient Monitoring

• Powers the iPM8 patient monitor in hospital environments, including:
  • ICU (Intensive Care Units)
  • Operating Rooms (OR)
  • Emergency Departments
  • Recovery Rooms (PACU)
  • General Wards

2. Battery Charging and Backup

• Supports charging of the internal lithium-ion battery
• Ensures uninterrupted monitoring during power outages or patient transport
• Automatically switches between AC power and battery power without affecting monitor operation

3. Continuous Vital Signs Monitoring

• Delivers stable power to all internal components like:
  • ECG, SpO₂, NIBP, TEMP, and RESP modules
  • Main processor board
  • Display and touchscreen interface

4. Emergency and Mobile Use

• Supports mobile or transport monitoring when used with a fully charged internal battery
• Ensures safe, portable operation in:
  • Ambulances
  • Mobile medical units
  • Field hospitals

5. Equipment Protection

• Provides over-voltage, over-current, and short-circuit protection
• Ensures long-term reliability of the patient monitor and connected sensors

6. Global Medical Facilities

• Universally compatible with 100–240V AC input
• Can be used in international healthcare settings without requiring voltage converters
