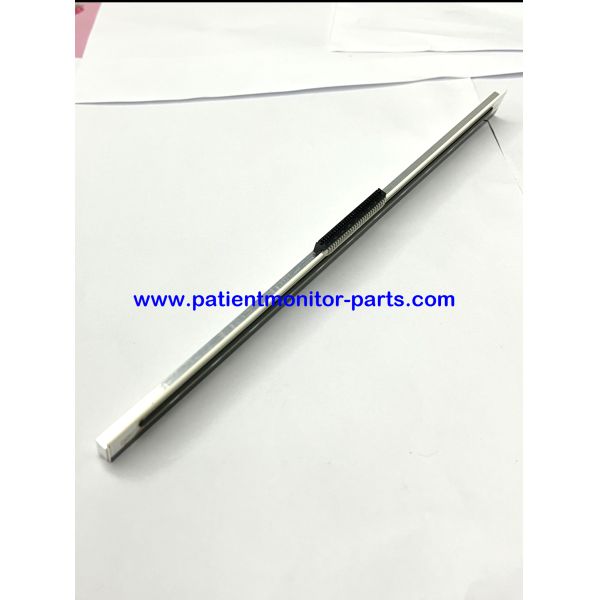

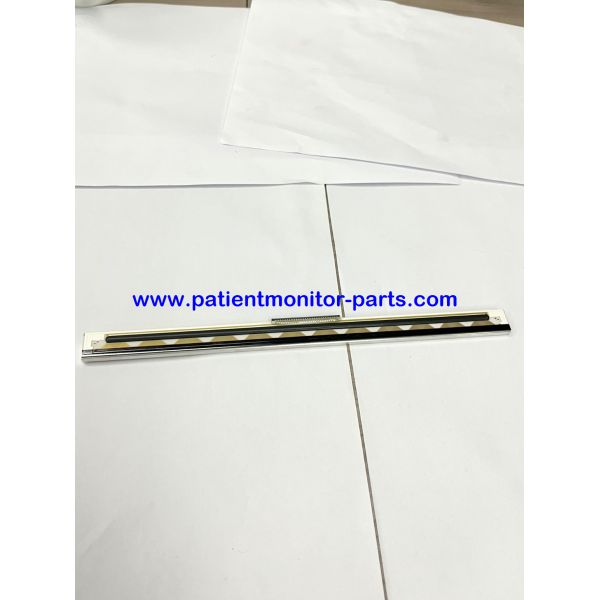

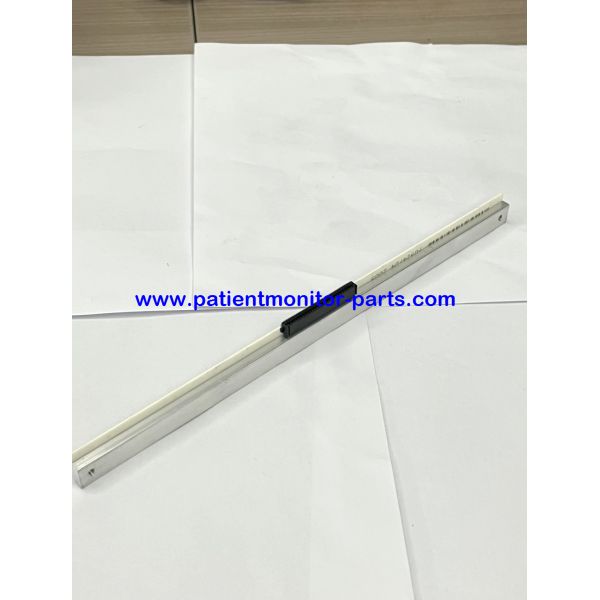

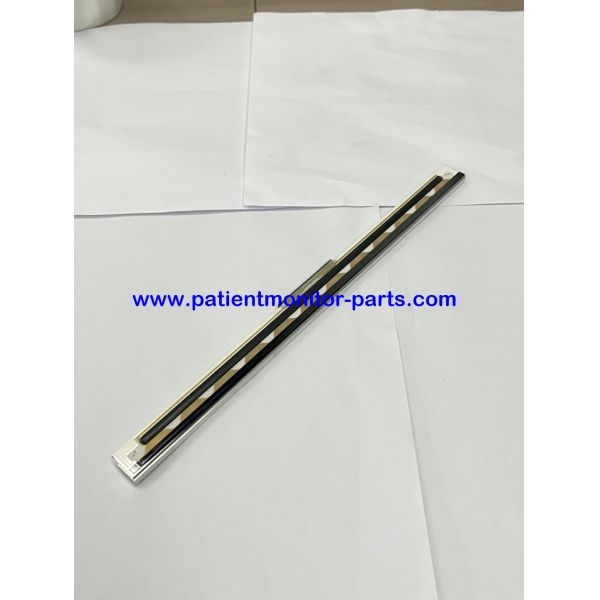

Philip Avalon FM20 / FM30 Thermal Printhead (TLPH)

(Original Philip, for M2702A / M2703A)

1. Basic Information

  • Official Name: Thermal Line Printhead (TLPH)
  • Compatible Models: Avalon FM20, FM30 (M2702A, M2703A)
  • Printer Type: 6-inch thermal array recorder
  • Part Number (Original): 4522 991 25291 (assembly)

2. Optical / Printing Resolution

  • Dot Density: 8 dots/mm (203.2 dpi)
  • Effective Print Width: 150 mm (full paper width)
  • Total Dots: 1200 dots (150 mm × 8 dots/mm)
  • Dot Pitch: 0.125 mm × 0.125 mm

3. Electrical Characteristics

  • Printhead Voltage: 5.0 VDC ±5% (logic) / 24 VDC ±10% (heating)
  • Current Per Dot: ~20–25 mA (peak)
  • Resistance Per Element: ~120 Ω (typical)
  • Interface: 50-pin ribbon cable (to Recorder Adapter Board M2703-66430)

4. Mechanical & Performance

  • Print Speed:
    • Standard: 25 mm/s
    • Fast: 50 mm/s (for review playback)
  • Paper Speed Range: 1–50 mm/s (configurable)
  • Lifetime: ≥1,000,000 lines (under rated conditions)
  • Operating Temp: +5°C to +45°C
  • Storage Temp: -20°C to +60°C

5. Paper Specifications (Matching)

  • Paper Width: 150 mm (Z-fold or roll)
  • Paper Type: Medical-grade thermal paper (HP 1911A / Philip 453564435211)
  • Sensor: Optical reflective sensor (for black mark detection)

6. Key Features

  • 5-channel recording: FHR1, FHR2, TOCO, MECG, annotations
  • High contrast: For clear FHR/TOCO waveform reproduction
  • Long-term stability: Ceramic heating elements, anti-corrosion coating
