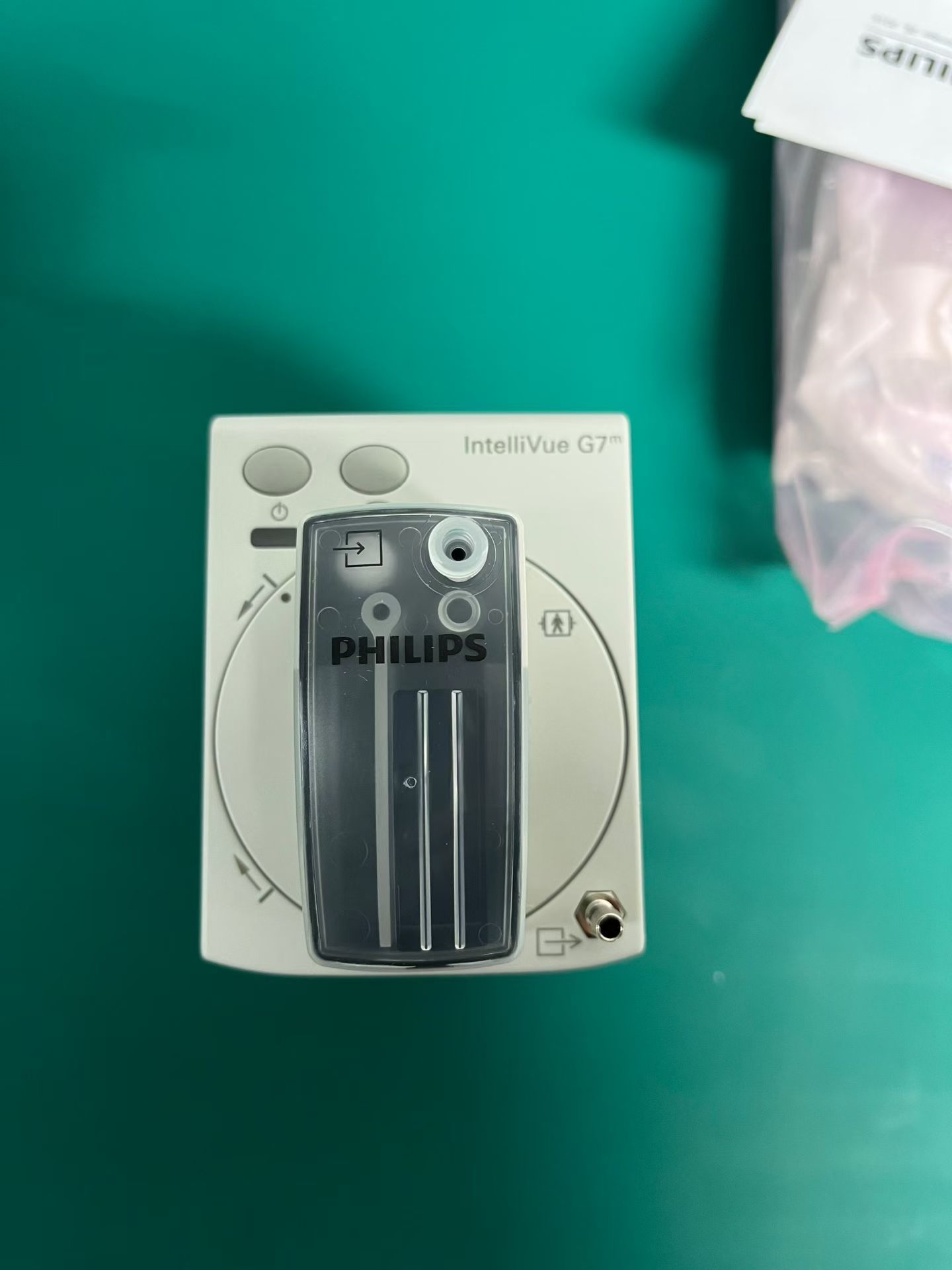

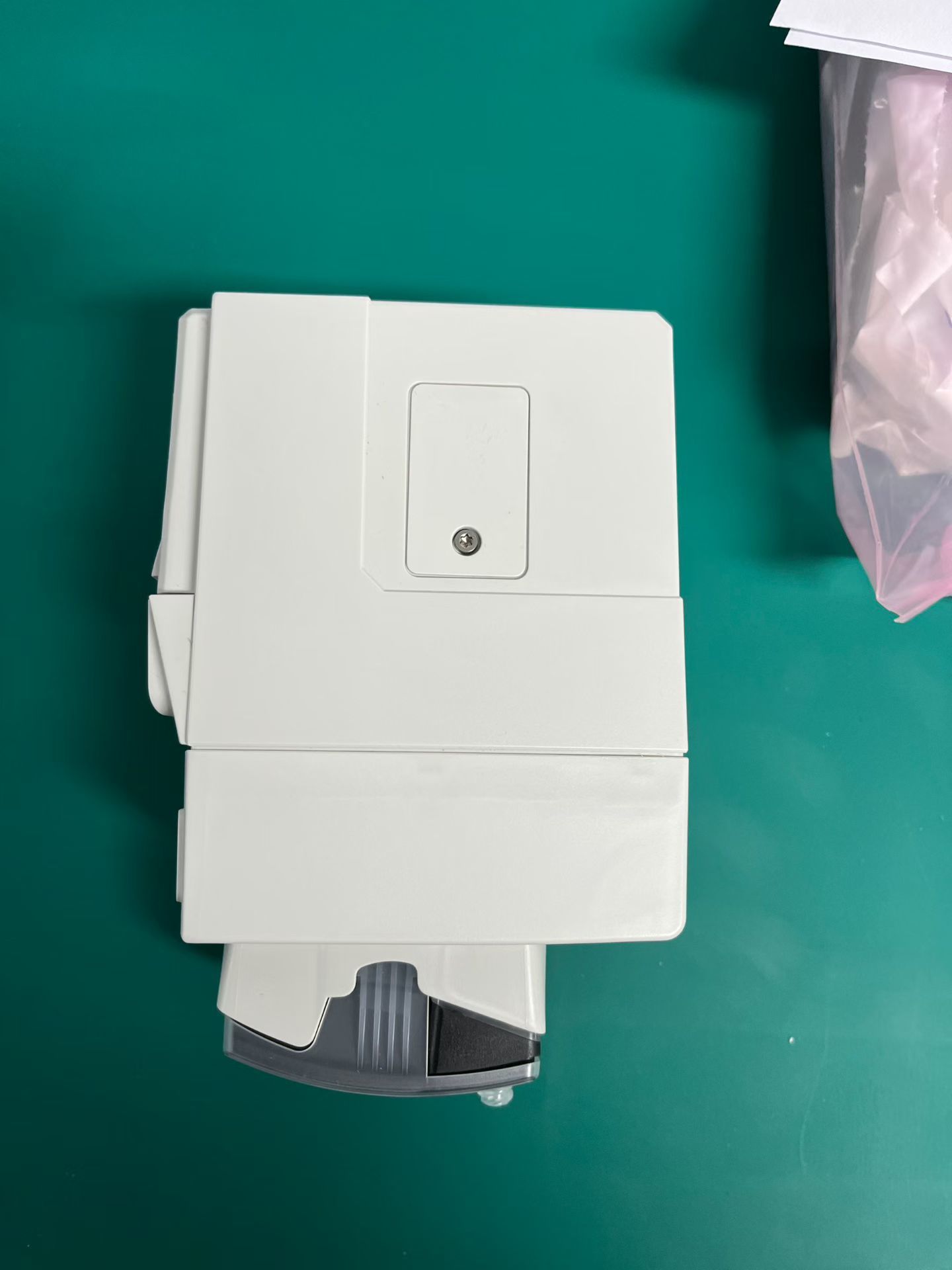

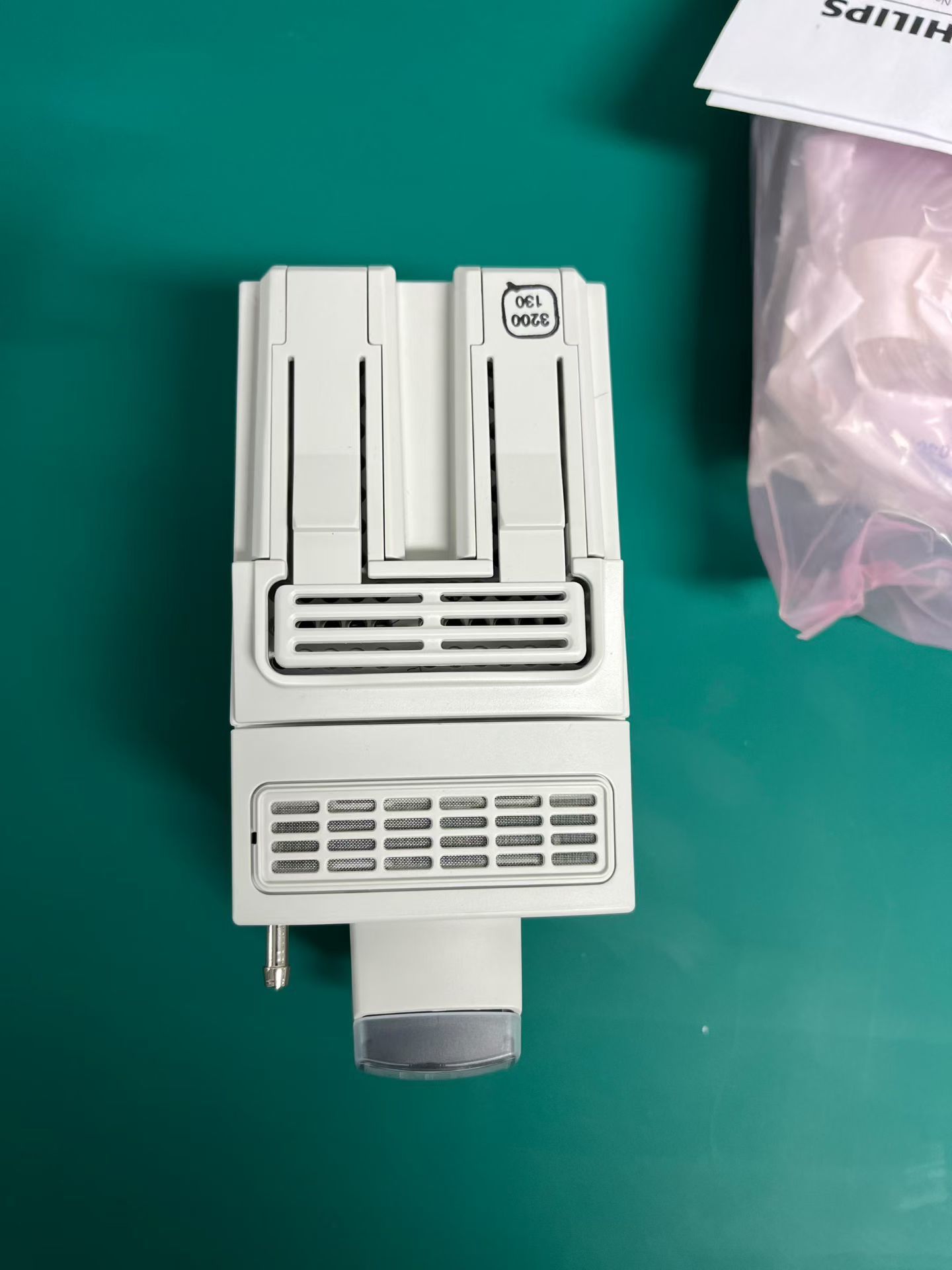

Philip IntelliVue G7ᵐ Gas Module​

• Model:​ IntelliVue G7ᵐ Gas Module

• Philip code:​ 866173 (G7m)

• Fits:​ IntelliVue MP40/50/60/70/90, MX series, via direct slot or Module Rack / FM-4 / FMS-8 (M8048A)

• Shares across monitors:​ hot-swappable between IntelliVue hosts, OR/ICU use

Measured Gases

• Respiratory base gases:​ CO₂, O₂, N₂O

• Volatile agents (auto-identify, single or mixed):​ Sevoflurane, Isoflurane, Halothane, Desflurane, Enflurane

• Derived:​ MAC (Minimal Alveolar Concentration) calculation, airway respiration rate from CO₂ waveform

Performance Characteristics

• Response:​ Fast warm-up and fast response time (breath-by-breath analysis)

• Calibration:​ Automatic calibration mode

• Agent ID:​ Automatic identification of agent and mixed agents

• Alarms:​ Per-parameter independent alarm limit settings

• Output on monitor:​ Numeric values + waveforms + trends for each gas/agent

Mechanical & Physical

• Dimensions (approx.):​ 7.3 cm (W) × 10.4 cm (H) × 16.7 cm (D) (2.8 × 4.0 × 6.5 in)

• Weight:​ ~1.0 kg

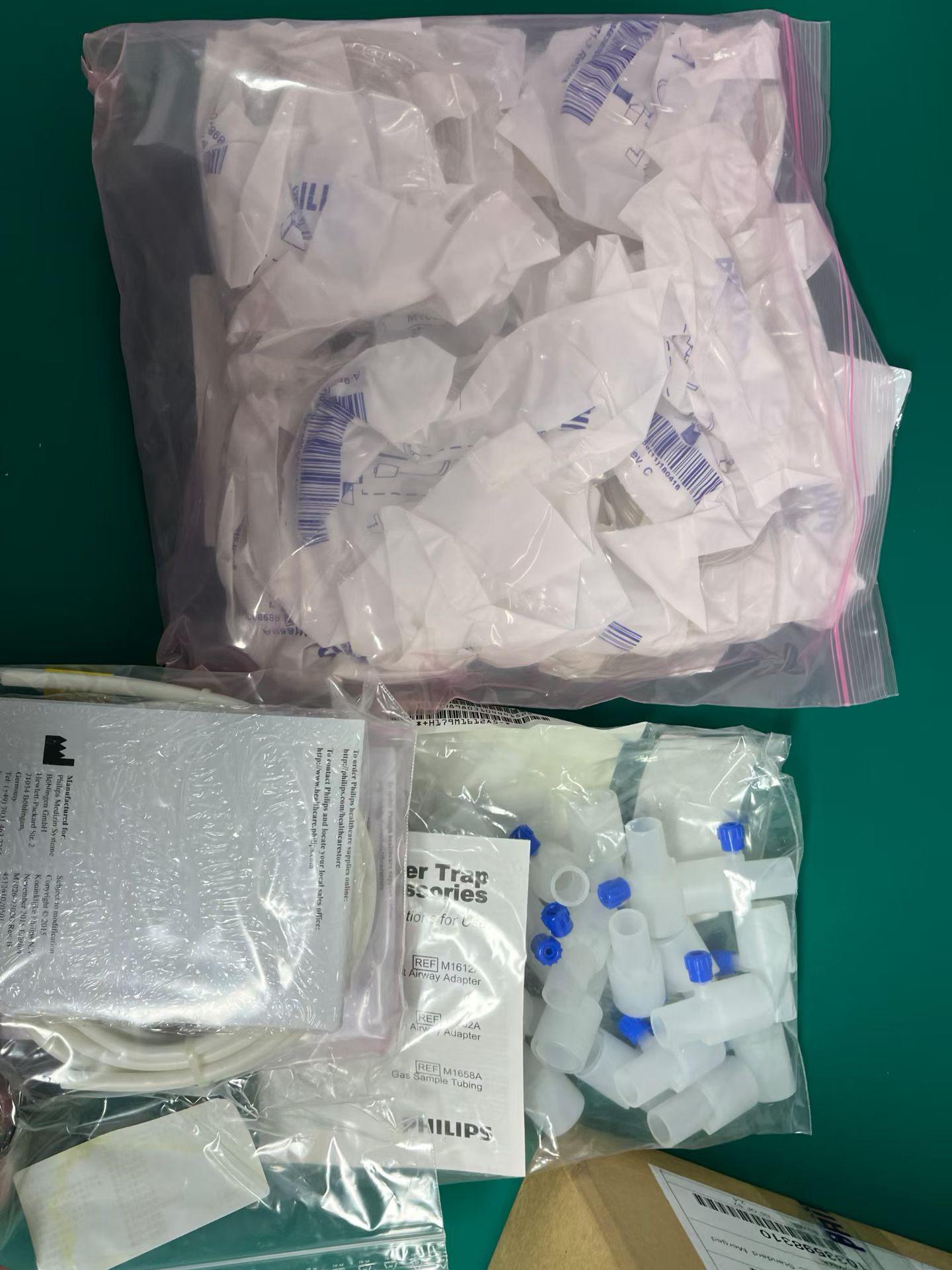

• Water trap:​ Rotatable, reusable, drainable; usable in vertical or horizontal rack mount (water-trap P/N 989803191081)

• Sampling:​ Side-stream gas sampling with internal water trap

Integration Notes

• Not a standalone monitor — needs IntelliVue host or rack

• Talks to host over IntelliVue module bus; no extra external cable for data

• Shares the same slot mechanics as other IntelliVue measurement modules (e.g., SpO₂, CO, BIS)

⚠️ Don't confuse with M8052A: that P/N belongs to MP50-class mainboard / PCA family, not​ the G7 gas module. The G7 module's correct order number is 866173​ (G7m). If a vendor quotes M8052A as "G7 anesthesia module" they've mixed two different boards.
