Specifications
machinery capacity :
Other, 6000BPH, 500BPH, 2000BPH, 1000BPH
application :
Beverage
packaging type :
Bottles
packaging material :
plastic, Glass
automatic grade :
Automatic
driven type :
Pneumatic
Voltage :
Customized
Place of Origin :
Jiangsu
Brand Name :
BOTTLING
dimension(l*w*h) :
5000*1000*2100mm
warranty :
1 Year
key selling points :
High-accuracy
filling material :
Other, Water
filling accuracy :
±1%
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
motor, PLC, Gear
Product name :
Automatic 3 in 1 3L-10L bottle water filling machine
Filling speed :
500-6000 bottles per hour(5L)
Bottle volume :
3L-10L PET bottle
Suitable bottle size :
Neck:20-50mm;Height:150-320mm
Model :
Linear type and Rotary type
Control :
PLC+ Touch Screen
Material :
Stainless Steel 304/316
Air pressure :
0.4Mpa
Water pressure :
0.18-0.25Mpa
Certificate :
CE/ISO9001
Type :
Filling Machine
Condition :
New
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Showroom Location :
None
Warranty of core components :
1 Year
Weight :
2500
Description
Products Description
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment

Linear type 3 in 1 automatic 3-10L Bottle water filling machine

1. Advanced intelligent operating system With PLC software support, the adjustment only needs to set the target amount on the touch screen, and the device can automatically increase or decrease to reach the target amount. Color touch display, all functions such as operation, monitoring, operation instructions, etc. are completed in the touch screen. 2. Stable filling and rehydration function Adopting the principle of functional separation, no rehydration is required during the filling process, and the rehydration process is not installed, thereby overcoming the instability of the refilling at the same time of floating filling. 3. Vial automatic card bottle function This machine is equipped with a bayonet device to ensure the matching of the bottle mouth and the filling nozzle when filling small capacity (glass bottles, etc.). 4. Wide application range and convenient adjustment It is suitable for the filling of most bottle types (especially shaped bottles), which overcomes the trouble of changing the dial when the rotary filling machine replaces the bottle type. For the irregular bottle type which can not be filled by the rotary filling machine, the machine has Greater advantage. 5. The filling process is closed and pollution-free The whole machine is fully enclosed and filled in accordance with national health requirements, achieving hygiene and pollution.
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Linear water rinsing nozzles
Bottles are running on the conveyor belt with photo electricity, the bottle cylinder will go out, meanwhile push the bottle into bottle support ring, and bottle neck support catch the bottle neck, then main shaft turned 180 degree under gear wheel. Let bottle's mouth face to land, jetting water into bottle, after a few seconds, the main shaft will be back, then finishing the washing.
Linear filling heads
Composed water tank, float ball, shaft, filling valve, Pneumatic component, electric machine. After Washing, bottle is conveyed into filling position, cylinder push and hold the plate which can hitch bottles.The mouth of bottle can open the valve, finishing filling,plate which can hitching bottle will running down, valve will closed automatically, the time lasting of filling can be adjusted .
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Capping head
The Capper consists of an internal steel structure with stainless steel casing. Fixed components include the cap hopper, cap
feeder and cap actuating capping heads. The cap feeder and all contact parts are made of stainless steel. The cap feeder guides the caps onto a chute for pick-up. A rotative capping turret with magnetic chuck heads applies plastic screw caps on PET bottles.
Parameters of linear type 3 in 1 3-10L bottle water filling machine:
Model
XGF2-2-1
XGF4-4-1
XGF6-6-1
XGF8-8-1
Capacity(5L bottle)
200-300BPH
400BPH
600BPH
800BPH
Suitable bottle size
3L 4.5L 5L 8L 10L
Washing valves
2pcs
4pcs
6pcs
8pcs
Filling valves
2pcs
4pcs
6pcs
8pcs
Capping heads
1pc
1pc
1pcs
8pcs
Machine size(mm)
4000*800*2000
5500*800*2000
6500*800*2000
7000*1000*2000
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment

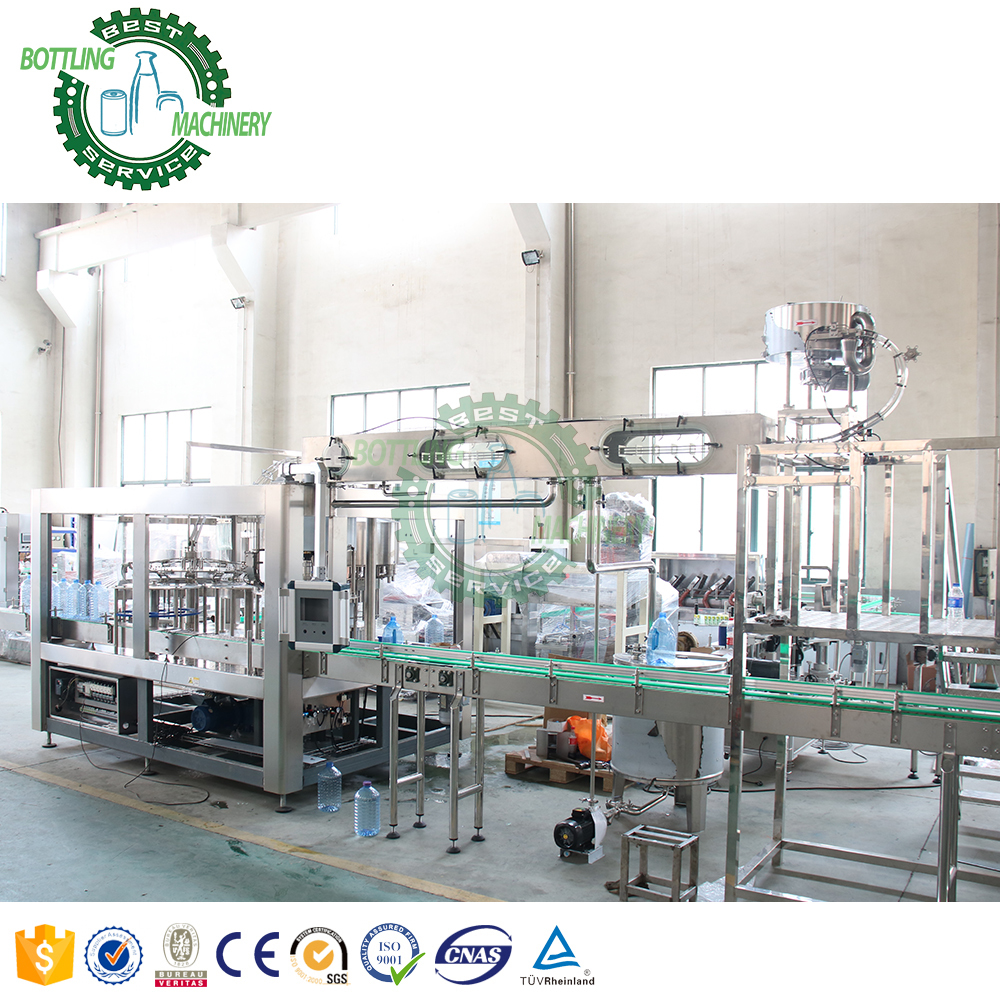

Higher speed Rotary type 3 in 1 automatic 3-10L Bottle water filling machine

1, The equipment is used in production of non-soda drink, water packed in PET bottles. Washing, filling and capping are integrated in one machine. 2, The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided. 3, Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high. 4, The filling by spraying type liquid lever controlling filling valve, no dripping. The liquid lever is easy to control. All construction made of SUS304, There is no dead corner inside filling valve. 5, The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable. 6, There is electrical heating cold-heat tank enclosed in the whole system especially for keeping hot filling temp during hot juice filling. And it can also be stopping heating by easy electrical break down for cold water filling. It do not need extra steam system to work together. 7, The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically. 8, The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment

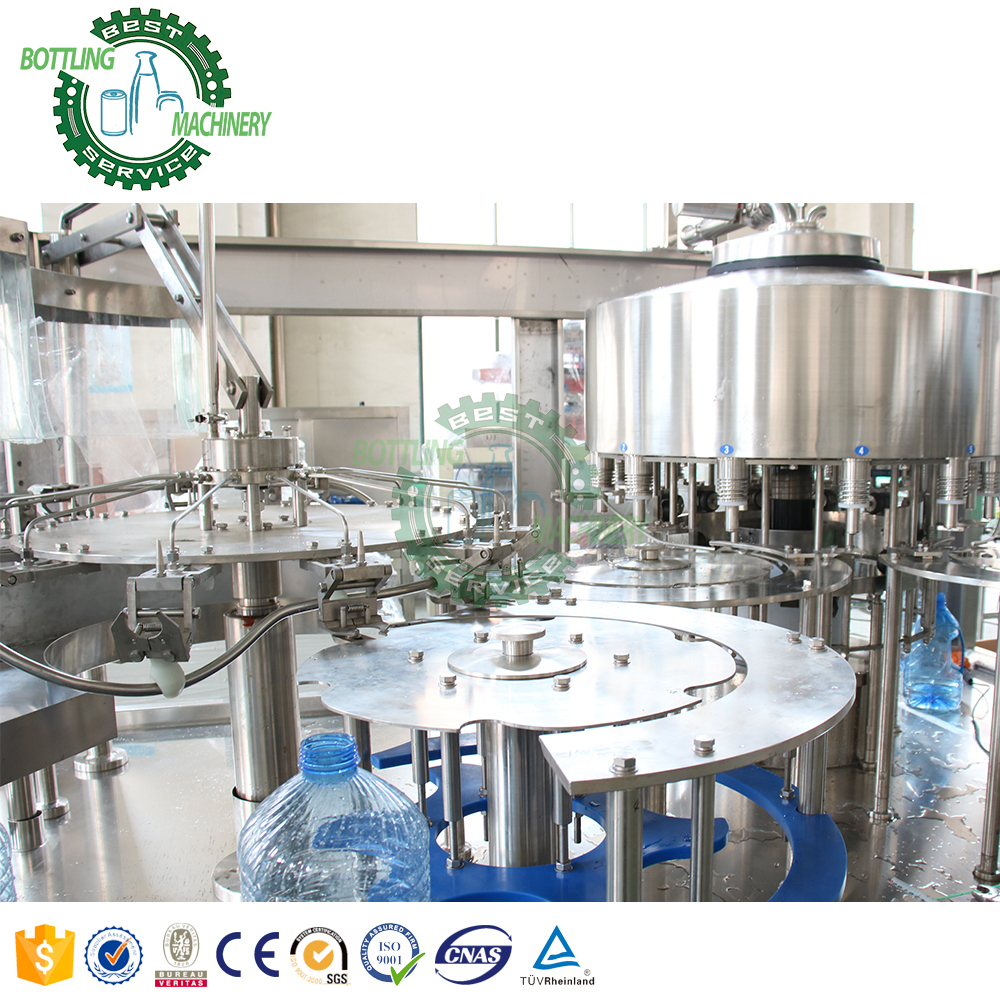

Rotary washing heads
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing <3> 304/316 stainless steel washing pump
Rotary filling heads
<1> 304/316 Stainless steel high precision filling nozzle <2> Filling volume adjustable in fine rank, same liquid level after filling <3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean <4> 304/316 stainless steel filling pump
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment

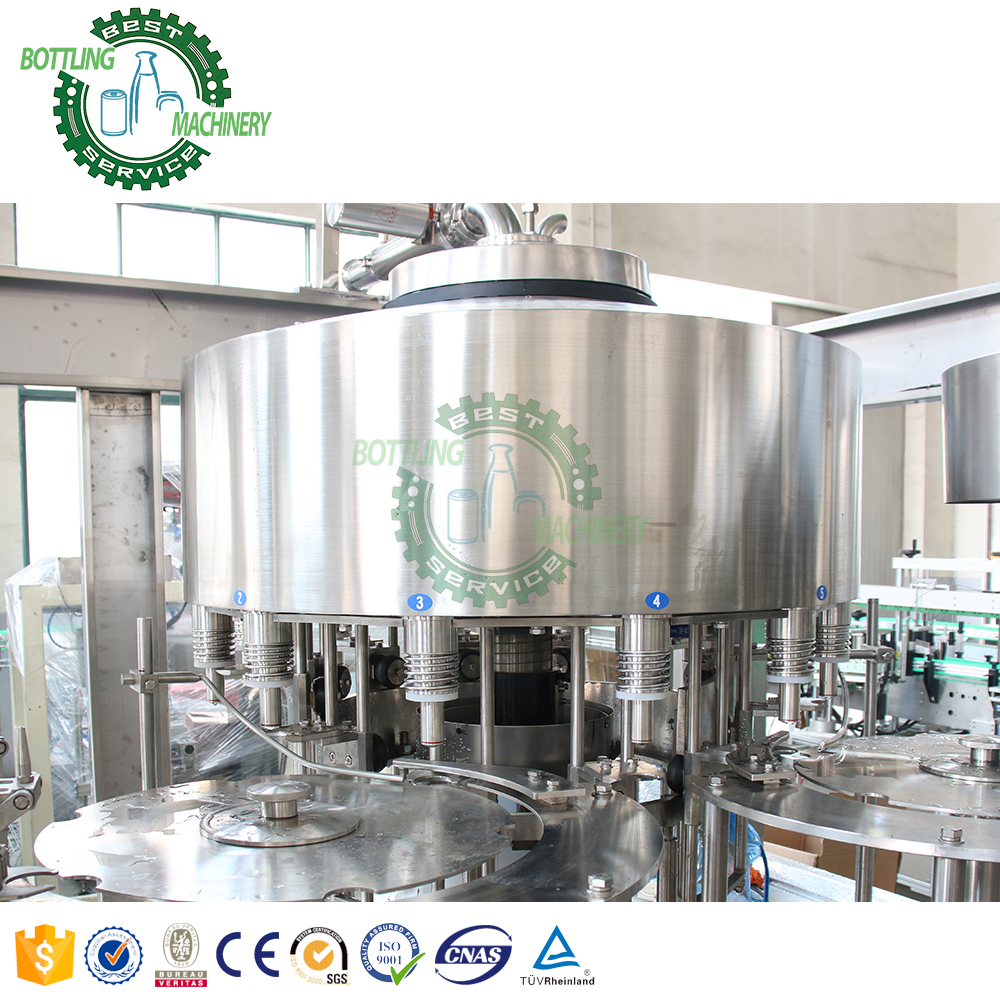

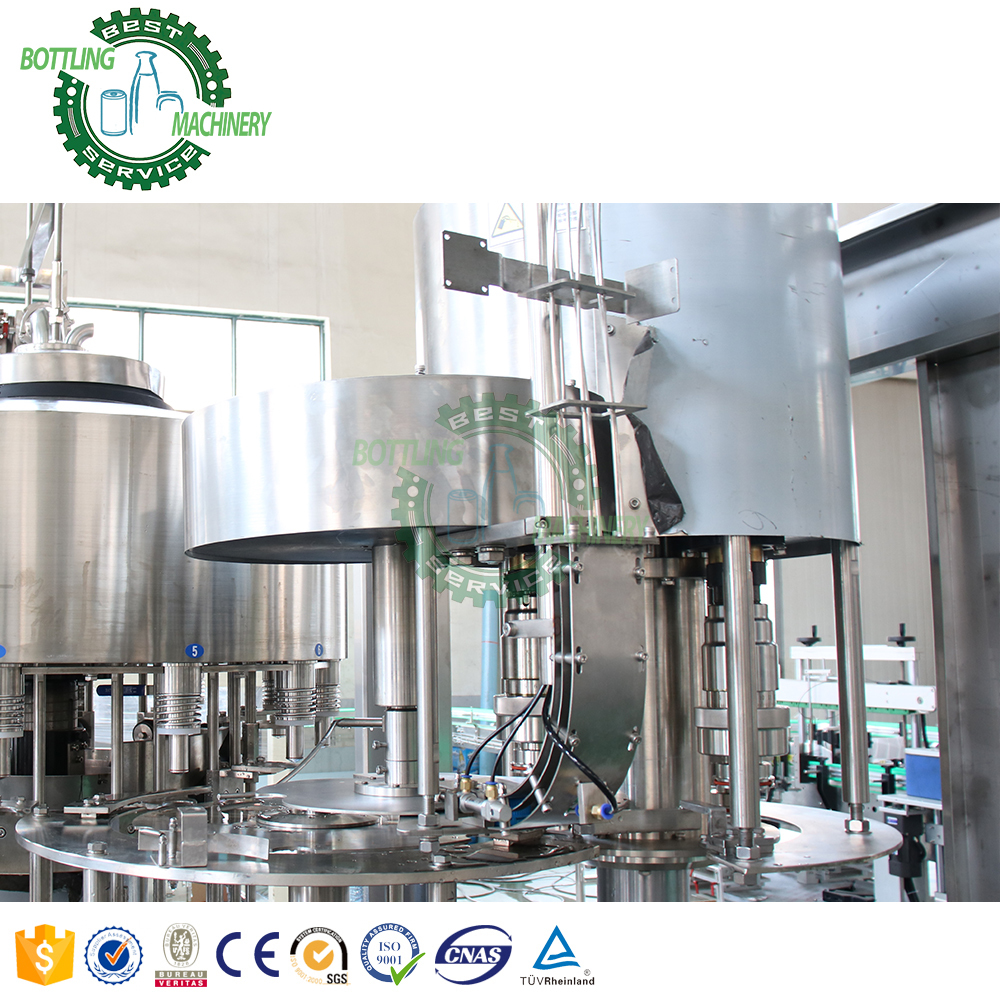

Rotary capping heads
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping <2> All 304/316 stainless steel construction <3> No bottle no capping <4> Automatic stop when lack of bottle
Parameters of rotary type 3 in 1 3-10L bottle water filling machine:
Model
CGF9-9-4B
CGF12-12-4B
CGF16-20-4B
CGF32-32-8B
Capacity（B/H）(330ml)
1000 5L
1500(5L)
4000BPH for 5L
5000-5500 5L
Bottle size
Neck:φ20-50mm；Height：150-320mm
Water pressure
0.18-0.25Mpa
Water consumption(kg/h)
1000
1000
1000
1000
Washing station
2
2
12
2
Dripping station
2
2
2
2
Filling precision
＜+2MM
＜+5MM
＜+/-1MM
＜+2MM
Air pressure
0.4Mpa
0.4Mpa
0.4Mpa
0.4Mpa
Air consumption (m³/min)
0.3
0.3
0.3
0.3
Power（kw）
4.08
4.08
4.58
7.45
Weight（kg）
2500
2500
3500
6500
Dimension(mm)
2500*2100* 2100/2450mm
2400*2100* 2100/2450mm
3600*2600* 2300mm
4000*2800* 2100/2450mm
In addition to filling machine, we can also provide the entire bottled water production line
Please check below:
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
RO water treatment machine
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Bottle blow molding machine
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Bottle water filling machine
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Bottle labeling machine
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Code printer
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Film shrink packing machine
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
company profile
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.

We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.

After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
Packing&Delivery of BOTTLING
1. Our machines are packed by wooden case. 2. The delivery date of this machine is within 10-25 days after payment.
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
FAQ
Automatic 3-5 Liters Bottle Fertilizer Detergent Dish Soap Alcohol Wiper Washer Fluid Water Bottling Line Plant System Equipment
Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory. Q:Do you have any certification? A:SGS,ISO,CE etc Q:What about the delivery time? A:Usually 20-30 Working days for most kinds of machines Q:What about the machine’s capacity? A:1000 - 20000 bottles per hour based on 500ml bottle. Q:The after-sale service A:12 months warranty.
We can solve basic questions by telephone, email, whatsapp, wechat and video call. Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent with machines or by email. We also have overseas service center Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle? A:Yes. Maybe you just need some spare little parts to change. Q: If I want to purchase the machine, what information do I need to tell you? A:a. What kind beverage you want to produce? b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.? c. Producing capacity requirement? How many bottles per hour? d.Raw water analysis report . e.Voltage and altitude. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink filling line for bottle or can. 5 gallon/20L bottle water filling line. Water treatment system. Bottle blowing molding machine.
After packing system(label machine, PE film shrink packing machine, carton machine)
