Specifications
application :
Beverage
packaging type :
Bottles
packaging material :
plastic, Glass
automatic grade :
Automatic
driven type :
Pneumatic
Voltage :
Any, According to customer requirements
Place of Origin :
Jiangsu
Brand Name :
BOTTLING
dimension(l*w*h) :
6*1*1.8m
warranty :
1 Year
key selling points :
High-accuracy
filling material :
Beer, Other, carbonated drink, soft drink, soda water, sparking water, spirit
filling accuracy :
±0.5%
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
motor, PLC, Gear
After-sales Service Provided :
Video technical support, Field installation, commissioning and training, Online support, Field maintenance and repair service, Free spare parts
Product name :
PET bottle carbonated drink filling machine
Filling speed :
1500 bottles per hour
Control :
PLC (SIEMENS)+Touch Screen
Bottle volume :
100-2000ml PET bottle
Filling type :
Isobaric filling type
Material :
SUS304 / 316
Driven type :
Electric
Certification :
CE ISO9001
Weight :
2100
Description
VR
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
Products Description

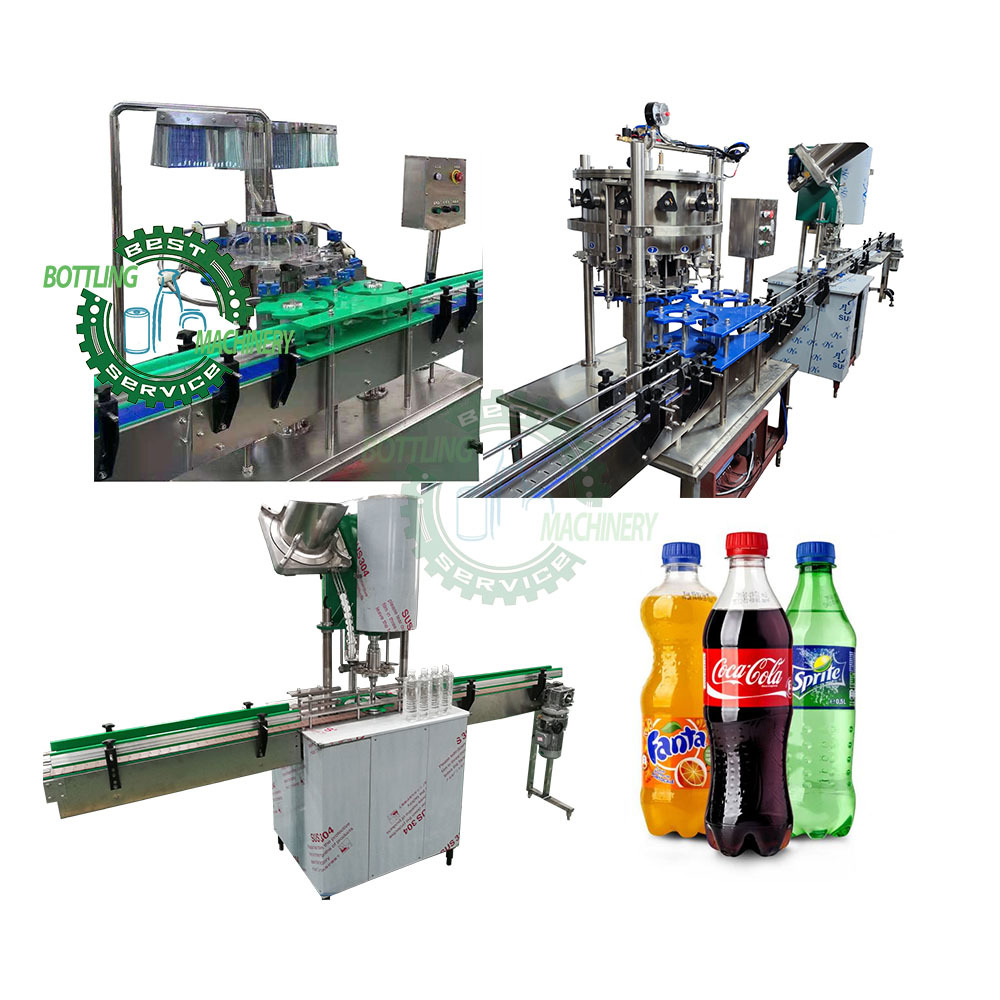

QS-12 DG-12 FXZ-1 linear PET bottle carbonated drink filling machine: 1500BPH

This linear PET bottle carbonated drink filling is composed of PET bottle rotary washing machine+balance pressure PET bottle rotary filling machine+1 head PET bottle capping machine, 3 parts are independent machines and connected by conveyor. The design of the whole machine is scientific,reasonable and automatic, the appearance is beautiful, the operation and maintenance are convenient.
The material mixed with carbon dioxide is directly injected into the liquid cylinder of the carbonated beverage filling machine through the pipeline. Between the mixer and the filling machine, we use a pneumatic membrane valve to control the stable material flow and slowly enter the filling liquid cylinder. Pneumatic valves and solenoid valves will cause turbidity in the cylinder caused by too fast material flow rate, and the principle of equal pressure filling is used for fixed liquid level filling. In the carbonated beverage production line, the bottle is washed, filled and capped in sequence.
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
Model
QS-12 DG-12 FXZ-1
DCGF14-12-5
DCGF18-18-6
DCGF24-24-10
DCGF32-32-10
DCGF40-40-12
Capacity(for 500ml)
1500
2000-3000
3000-5000
5000-7000
8000-10000
12000-15000
Suitable bottle shapes
PET circular
PET circular
7000BPH
5.2KW
2450*2100*2400mm
Bottle diameter
Dia50-Dia115mm
Dia50-Dia115mm
12000BPH
5.2KW
2750*2400*2400mm
Bottle height
160-320mm
160-320mm
Filling type
Isobaric filling
Isobaric filling
15000BPH
7KW
3350*2680*2400mm
Filling pressure
<0.4 Mpa
<0.4 Mpa
20000BPH
7KW
3860*3150*2400mm
Rinsing water pressure
>0.06Mpa
>0.06Mpa <0.2Mpa
24000BPH
8KW
4500*3500*2400mm
Application
soft drink
carbonated beverage filling machine
1500BPH
5.2KW
2500*2100*2100mm
Total power
3.12KW
4.4kw
5.2kw
6.2kw
7.5kw
8.2kw
Dimensions
6*1*1.8m
2.5*1.9*2.3m
2.8*1.9*2.5m
3.2*2.2*2.5m
3.4*2.5*2.5m
4.8*2.3*2.5m
Weight
2100Kg
3000kg
4500kg
6000kg
8500kg
10000kg
The whole carbonated drink production line mainly includes water treatment equipment, bottle blowing equipment, syrup belting pot, mixing system, CO2 filter, water chiller, carbonator(CO2 mixer), CIP, balance pressure washing-filling-capping machine, bottle warming equipment, blow drying equipment, coding equipment, labeling equipment, and packaging equipment.
Syrup mixing, drinks cooling and CO2 mixing system: Carbonated beverages are mainly composed of water, syrup, and carbon dioxide. The syrup is made through the sugar pot and the mixing tank. After filtration, it is pumped into the syrup tank in the carbonated drink mixer. At the same time, the sterilized finished water is also pumped into the beverage mixer. The water tank is vacuum degassed to facilitate the mixing of carbon dioxide. Through the proportioning system on the beverage mixer, the water and syrup are mixed in proportion to achieve the desired taste, and our mixer incorporates carbon dioxide jet technology, The sandy taste of the beverage is equivalent to Coca-Cola, and the mixed materials are cooled by a plate heat exchanger, where the other end of the plate heat exchanger is mainly connected with a water chiller (cold water is provided, with antifreeze added, and the water outlet temperature is -3℃ -8°C adjustable) connection, we will select the chiller based on the user’s local climatic conditions. Through this heat exchange method, the material can be cooled to 0°C～3°C and fed into the beverage mixer. The carbon dioxide mixing tank can dissolve carbon dioxide into the material under the control of proper pressure to make carbonated beverages with ideal gas lock capacity.
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
The carbonated drink mixing processing plant
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
Single tank carbonator, double tank carbonator, high ratio carbonator.
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
CIP: Separate alkali, acid tank, hot water tank; Heating pipes used for cleaning liquid heating by steam connection or hot water boiling recycling; Centrifugal pump to discharge cleaning liquid to the machines which need to be washed; Feedback pump can be added for cleaning liquid recycling; It is for easy equipment s cleaning, divided into 5 steps of cleaning:A, Pre-Hot Water cleaning B, Alkali cleaning C, Post-Hot Water cleaning D, Acid cleaning E, Post-Hot Water cleaning
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
Stainless Steel Carbonated Drinks Spraying Bottle Warming Tunnel This machine is used for carbonated beverages. Because the filling temperature is 0-4 degrees Celsius and the ambient temperature is 20-30 degrees, The bottle warming machine adopts a three section steam recycling heating design,the water spraying water temperature shall be controlled around 40 degrees. After the bottle go out, the temperature will be around the 25 degrees. Users can fix the temperature according to need. All the end of the warmer, it is equipped with the drying machine to blow the water outside the bottle. It is equipped with the temperature control system. Users can adjusted the temperature by himself Main features : The conveyor is frequency controlled. All nozzle and spray tubes are made of stainless steel and spray evenly The catchment flume is made of stainless steel and equipped with a level alarm device The spray tunnel has a spray cooling recycling water pump and steam adjustment valve Steam consumption is adjusted according to the temperature.
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
In addition to filling machine, we can also provide the entire bottled water production line
Please check below:
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
RO water treatment machine
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
Bottle blow molding machine
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
Bottle blow dryer
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
Bottle labeling machine
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
Code printer
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
Film shrink packing machine
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
company profile
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.

We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.

After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
Packing&Delivery of BOTTLING
1. Our machines are packed by wooden case. 2. The delivery date of this machine is within 10-25 days after payment.
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
FAQ
PLC Control 1500bph Linear Split PET Plastic Bottle Gas Juice Beverage Soft Drinks Carbonated Drink Manufacturing Machine Line
Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory. Q:Do you have any certification? A:SGS,ISO,CE etc Q:What about the delivery time? A:Usually 20-30 Working days for most kinds of machines Q:What about the machine’s capacity? A:1000 - 20000 bottles per hour based on 500ml bottle. Q:The after-sale service A:12 months warranty.
We can solve basic questions by telephone, email, whatsapp, wechat and video call. Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent with machines or by email. We also have overseas service center Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle? A:Yes. Maybe you just need some spare little parts to change. Q: If I want to purchase the machine, what information do I need to tell you? A:a. What kind beverage you want to produce? b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.? c. Producing capacity requirement? How many bottles per hour? d.Raw water analysis report . e.Voltage and altitude. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink filling line for bottle or can. 5 gallon/20L bottle water filling line. Water treatment system. Bottle blowing molding machine.
