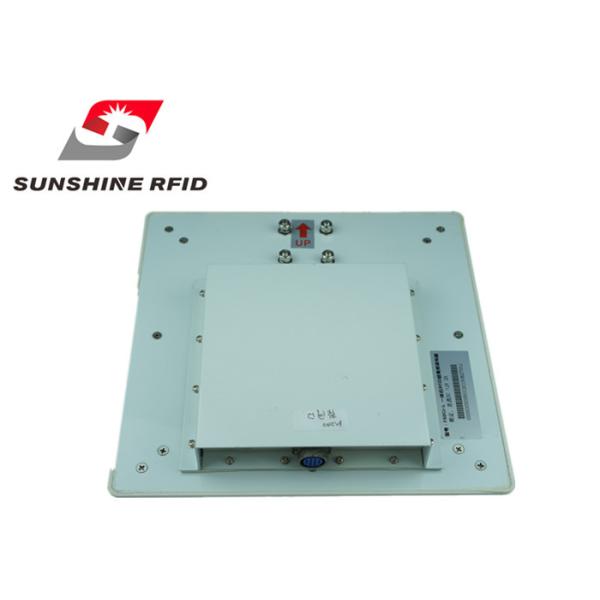

Portable Programming RFID Reader Long Distance 12 Dbi Antenna For Parking
Portable Programming RFID Reader Long Distance 12 Dbi Antenna For Parking
Specifications
Brand Name :
SUNSHINE
Model Number :
F5012
Certification :
CE,ROSH
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, Western Union
Packaging Details :
Carton
Tag Protocol :
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Working Frequency :
840～960 MHz
Output Power Flatness :
±0.2dBm
Reading Distance :
≥14m（relate to tags type, transmitted power and application environment）
Multi-tags Reading :
≥400tags/s
Communication Port :
RS485,RS232(DB-9)RJ45(100M Ethernet port)
Intensive Read/Write Mode DRM :
Support
Description

Long Distance programming rfid reader portable With 12 dbi Antenna for parking

Advantages of Integrated UHF RFID Reader​ F5012-H

  • Employed IMPINJ R2000 RF Chips, up to -82dBm receiving sensiticity and the highest performance makes this reader more suitable for harsh application evironment.
  • High stability and reliability, 60*24 hours high temperature of workstation, can work stably and continuous.
  • Remarkable performance, can achieve a reading distance over 14m for single tag reading.
  • Remarkable performance in intensive tags reading, can attain a tags identification rate of 400tags/s.
  • Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.
  • Adopted integrating RF chip, module performance is more stable, and more suitable for harsh application environment.
  • The use of carrier wave cancellation technology makes the tags reading more accurate and reading scope wider.
  • Enhanced noise suppression function for reliable data capturing.
  • High precision return signal strength (RSSI).
  • Excellent performance of anti-interference and lightning-proof design.
  • ABS industrial plastic case, rugged and durable.
  • Waterproof and dustproof of industrial design, IP64.

Product Electrical Parameters

NO. Name Parameters
1 Working Voltage DC +12V
2 Working Temperature -25～+65℃
3 Working Humidity ≤95%(+25℃)
4 Storage Temperature -40～+80℃
5 Tag Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
6 Working Frequency 840～960 MHz
7

Supporting Working
Areas

China 1, China 2
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302
208 with & without LBT regulations Japan,Korea,Malaysia,Taiwan
8 Output Power Software adjustable, step interval 1.0dB, maximum +30dBm
9 Output Power Flatness ±0.2dBm
10 Receiving Sensitivity -82dBm
11 RF Port Standing Wave ≤1.5
12 Reading Distance ≥14m(relate to tags type, transmitted power and application environment)
13 Multi-tags Reading ≥400tags/s
14 Interface Communication Rate 115200bps
15

Working Temprature
Detection

 Support
16 Intensive Read/Write Mode DRM Support
17

Antenna Connection
Protection

 Support
18 RSSI Support
19 Antenna Type 12dbi linear polarization antenna
20 Communication Port RS485,RS232(DB-9)RJ45(100M Ethernet port)
21 Buzzer Yes
22 Enclosure ABS industrial plastic case
23 Dimension 44.5*44.5*7.5CM
24 IP Grade IP64


Interface definition

Pin NO. Name Description
1 485-A RS485 A
2 485-B RS485 B
3 GND Ground
4 GND Ground
5 E-6 Ethernet RJ45 PIN6
6 E-3 Ethernet RJ45 PIN3
7 +12V DC +12 Power supply
8 GND Ground
9 E-1 Ethernet RJ45 PIN1
10 E-2 Ethernet RJ45 PIN2
11 232-RX RS232 RX
12 232-TX RX232 TX



Portable Programming RFID Reader Long Distance 12 Dbi Antenna For Parking

Portable Programming RFID Reader Long Distance 12 Dbi Antenna For Parking

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
