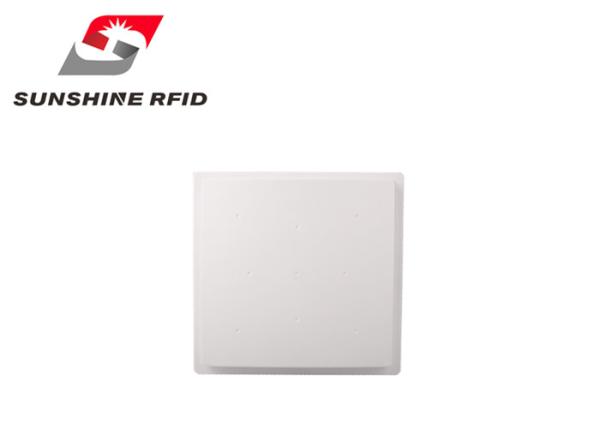

Waterproof Mid Range RFID Reader / Integrated RFID Reader For Parking System
Waterproof Mid Range RFID Reader / Integrated RFID Reader For Parking System
Specifications
Brand Name :
SUNSHINE
Model Number :
F5009
Certification :
CE.ROSH
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, Western Union
Packaging Details :
Carton
Working Voltage :
DC +12V
Working Temperature :
-25～+65℃
Tag Protocol :
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Working Frequency :
840～960 MHz
Output Power :
Software adjustable, step interval 1.0dB, maximum +30dBm
Output Power Flatness :
±0.2dBm
Description

Mid - Range UHF Weigand 26 9dbi Integrated RFID Reader For Parking System​

Product Advantage

  • Employed IMPINJ R2000 RF Chips, up to -82dbm receiving sensitivity and the highest performance in this field makes this module more suitable for harsh application environment.
  • High stability and reliability, 60*24 hours high temperature of workstation, can work stably and continuous.
  • Remarkable performance, can achieve a reading distance over 11m for single tag reading.
  • Remarkable performance in intensive tags reading, can attain a tags identification rate of 400tags/s.
  • Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.
  • Enhanced noise suppression function for reliable data capturing.
  • High precision return signal strength (RSSI).
  • Excellent performance of anti-interference and lightning-proof design.
  • ABS industrial plastic case, rugged and durable.
  • Waterproof and dustproof, production grade is IP64.

Product Electrical Parameters

NO. Name Parameters
1 Working Voltage DC +12V
2 Working Temperature -25～+65℃
3 Working Humidity ≤95%(+25℃)
4 Storage Temperature -40～+80℃
5 Tag Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
6 Working Frequency 840～960 MHz
7

Supporting Working
Areas

China 1, China 2
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302
208 with & without LBT regulations
Japan
Korea
Malaysia
Taiwan
8 Output Power Software adjustable, step interval 1.0dB, maximum +30dBm
9 Output Power Flatness ±0.2dBm
10 Receiving Sensitivity -82dBm
11 RF Port Standing Wave ≤1.5
12 Reading Distance ≥14m(relate to tags type, transmitted power and application environment)
13 Multi-tags Reading ≥400tags/s
14 Interface Communication Rate 115200bps
15

Working Temprature
Detection

 Support
16 Intensive Read/Write Mode DRM Support
17

Antenna Connection
Protection

 Support
18 RSSI Support
19 Antenna Type 9dbi circular polarization antenna
20 Communication Port RS485,RS232(DB-9)RJ45(100M Ethernet port)
21 Buzzer Yes
22 Enclosure ABS industrial plastic case
23 Dimension 28*28*7.5CM
24 IP Grade IP64


Interface definition

Pin NO. Name Description
1 485-A RS485 A
2 485-B RS485 B
3 GND Ground
4 GND Ground
5 E-6 Ethernet RJ45 PIN6
6 E-3 Ethernet RJ45 PIN3
7 +12V DC +12 Power supply
8 GND Ground
9 E-1 Ethernet RJ45 PIN1
10 E-2 Ethernet RJ45 PIN2
11 232-RX RS232 RX
12 232-TX RX232 TX
